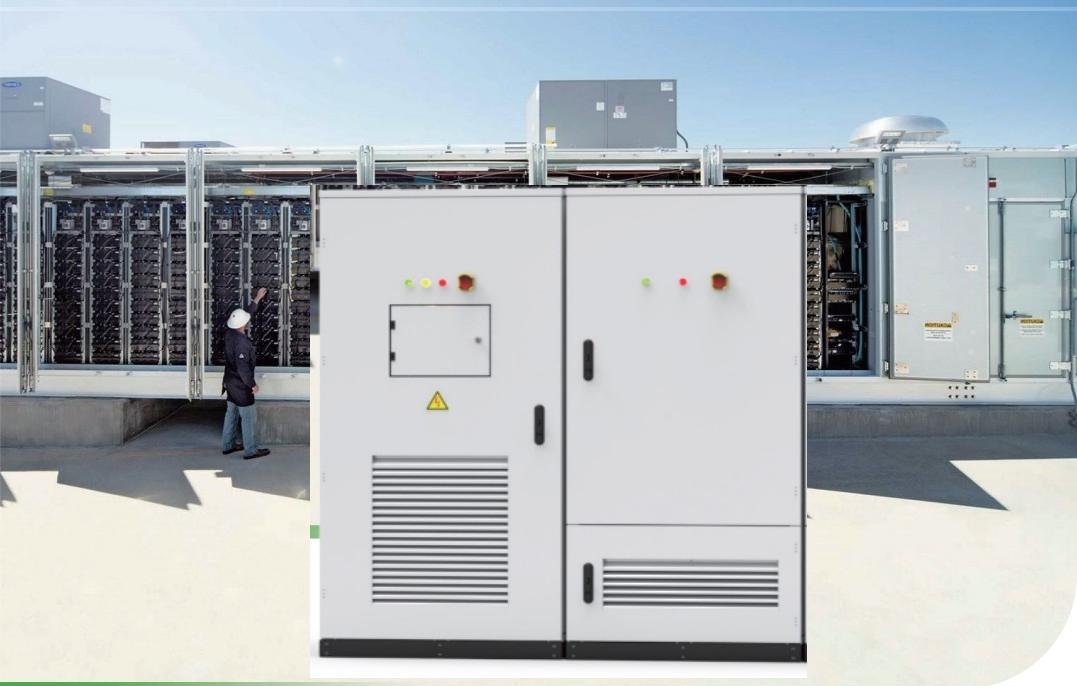

TG-eBank-261LHYB2

I. Core Advantages

1. High-security lithium iron phosphate + liquid cooling temperature control

Utilizing 3.2V/314Ah LiFePO4 dedicated energy storage cells, with a cycle life of ≥6000 times @ 80% DOD and a lifespan of ≥15 years.

Full liquid cooling system: Precise temperature control at 25–35℃, with a temperature difference of ≤3℃; 30%+ more energy saving compared to air cooling, slower degradation, longer lifespan; Operating in a wide temperature range of -30℃ to 50℃, suitable for all climates in China and overseas.

Multiple safety features: Perfluorohexane + aerosol dual-level fire protection, double-layer flame retardant and explosion-proof, multiple-level fuses, liquid leakage monitoring; Certified by CE/IEC62619/UN38.3/IP54, no risk of thermal runaway.

2. 125kW/261kWh standard high-voltage integrated machine

Rated at 125kW/261kWh, high-voltage platform at 768V, 0.5C continuous charging and discharging, DOD 95%, system efficiency ≥92%.

All-in-One integration: BMS/PCS/EMS/liquid cooling/fire protection/monitoring fully integrated; occupying only 1.45㎡, arranged side by side, saving space.

Plug-and-play: Factory pre-tuning, on-site installation completed by 2 people in 1 day; Supports up to 10 units in parallel, flexible expansion to 2.6MWh.

3. Intelligent EMS + remote operation

Self-developed cloud-edge collaborative EMS: Peak-valley arbitrage, backup power, photovoltaic-storage combined off-grid, three-phase imbalance management, demand management.

4G/5G remote: Real-time monitoring, fault warning, remote upgrade, unmanned operation; Reduces operation costs by 70%.

4. High cost-effectiveness + long lifespan

261kWh large capacity, low cost per kWh, quick payback (1.5–2.5 years for industrial peak-valley).

5-year whole machine warranty + 15-year lifespan support, high value throughout the entire lifecycle.

II. Application Scenarios

1. Industrial and commercial users

Peak-valley arbitrage: Charging at night during low demand and discharging during peak hours, significantly reducing electricity costs (especially for high electricity price industries).

Backup power (EPS): Seamless switching in case of power outages in factories, office buildings, shopping malls, hospitals, data centers, ensuring critical loads.

Demand management: Reduce transformer capacity, reduce basic electricity costs, alleviate grid expansion.

Power quality management: Three-phase imbalance, harmonic suppression, power factor compensation.

2. Photovoltaic-storage-charging / new energy integration

Photovoltaic + storage, improving self-consumption rate, reducing power loss, increasing IRR by 2–5 points.

Charging station storage: Mitigating grid impact, avoiding expansion; discharging during peak hours for fast charging, increasing charging station revenue.

Microgrid / off-grid: Remote factories, mines, islands, photovoltaic towns, independent and stable power supply.

3. Overseas markets

Countries with power shortages / unstable grids: Southeast Asia, Africa, Latin America, 125kW/261kWh standard cabinets, easy transportation, installation, replication.

Grid upgrade / sub-area energy storage: Europe, Australia, participating in frequency regulation, peak shaving, virtual power plants.

4. Large parks / data centers / base stations

Park energy management + carbon neutrality; UPS for data centers + backup power; Peak shaving + backup for base stations.

III. Solution Capabilities

1. Standard products + flexible customization

Standard model: TG-eBank-261LHYB2 (125kW/261kWh), mass production, short delivery cycle, stable price.

Customization: Adjustable voltage, interface, communication protocol, cabinet size, brand licensing (OEM/ODM); Supports BMS/EMS secondary development.

2. Turnkey system integration

Comprehensive solution: Energy storage cabinet + inverter + distribution cabinet + fire protection + monitoring + EMS. Design → Supply → Installation → Commissioning → Training all-inclusive.

Scenario-based solution library: Industrial peak-valley, photovoltaic storage integration, off-grid microgrid, charging station energy storage, virtual power plant. Mature templates can be directly copied.

3. Full-cycle technical support

Pre-sales: Free electricity cost calculation, revenue model, solution design; provide sample testing, technical connection.

In-process: 7×24-hour technical support, remote installation and commissioning guidance; priority production for batch orders, ensuring delivery schedule.

Post-sales: 5-year warranty + 15-year lifespan support; remote operation + on-site service, sufficient spare parts, quick response.

4. Open compatibility, connect with mainstream equipment

Communication protocol: Modbus RTU/TCP, CAN, IEC61850, can connect with mainstream photovoltaic inverters, power grid dispatching, cloud platforms.

IV. Company strength

1. R&D and production strength

Energy storage specialized manufacturer: Focus on industrial and commercial energy storage / lithium battery systems for many years, self-developed BMS/EMS/liquid cooling control, core technologies are independently controllable.

Large-scale production capacity: Intelligent production line, monthly production ≥ 200 125kW/261kWh energy storage cabinets, strong delivery capability, cost controllable.

Strict quality control: Full process IQC → IPQC → FQC → OQC, each unit undergoes ≥ 24 hours full-load aging, 100% inspection upon leaving the factory.

2. Complete qualification certifications

Cell / system certifications: CE, IEC62619, UN38.3, MSDS, IP54, ISO9001/14001, meet the entry requirements of mainstream markets worldwide.

3. Project performance and reputation

Domestic cases: Covering factories, parks, commercial buildings, photovoltaic power stations, charging stations, data centers, with hundreds of projects implemented cumulatively.

Overseas channels: Export to Southeast Asia, Europe, Africa, Latin America, long-term cooperation with multiple EPCs, traders, system integrators.

4. Flexible cooperation model

Agency / distribution: Regional exclusive, price protection, market support, training empowerment.

OEM/ODM: Branding production, custom brand, custom appearance, support for traders to build their own brands.

Batch orders: High volume, low price, credit support (quality customers), stable supply, quick response.
