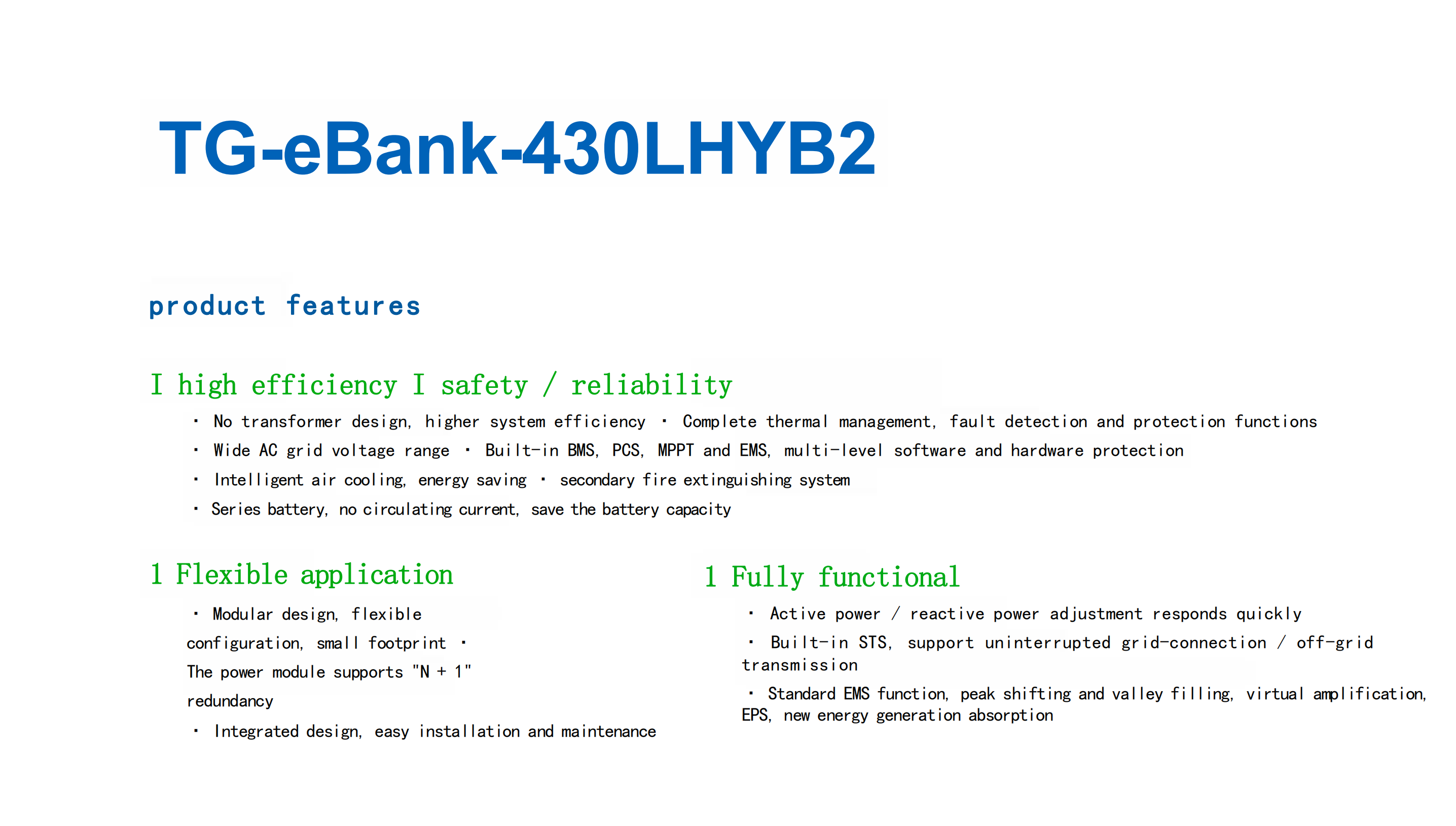

200kw430kwh-TG-eBank-430LHYB2

I. Core Advantages

1. High power and large capacity, suitable for large battery cells, facilitating easy integration by battery manufacturers

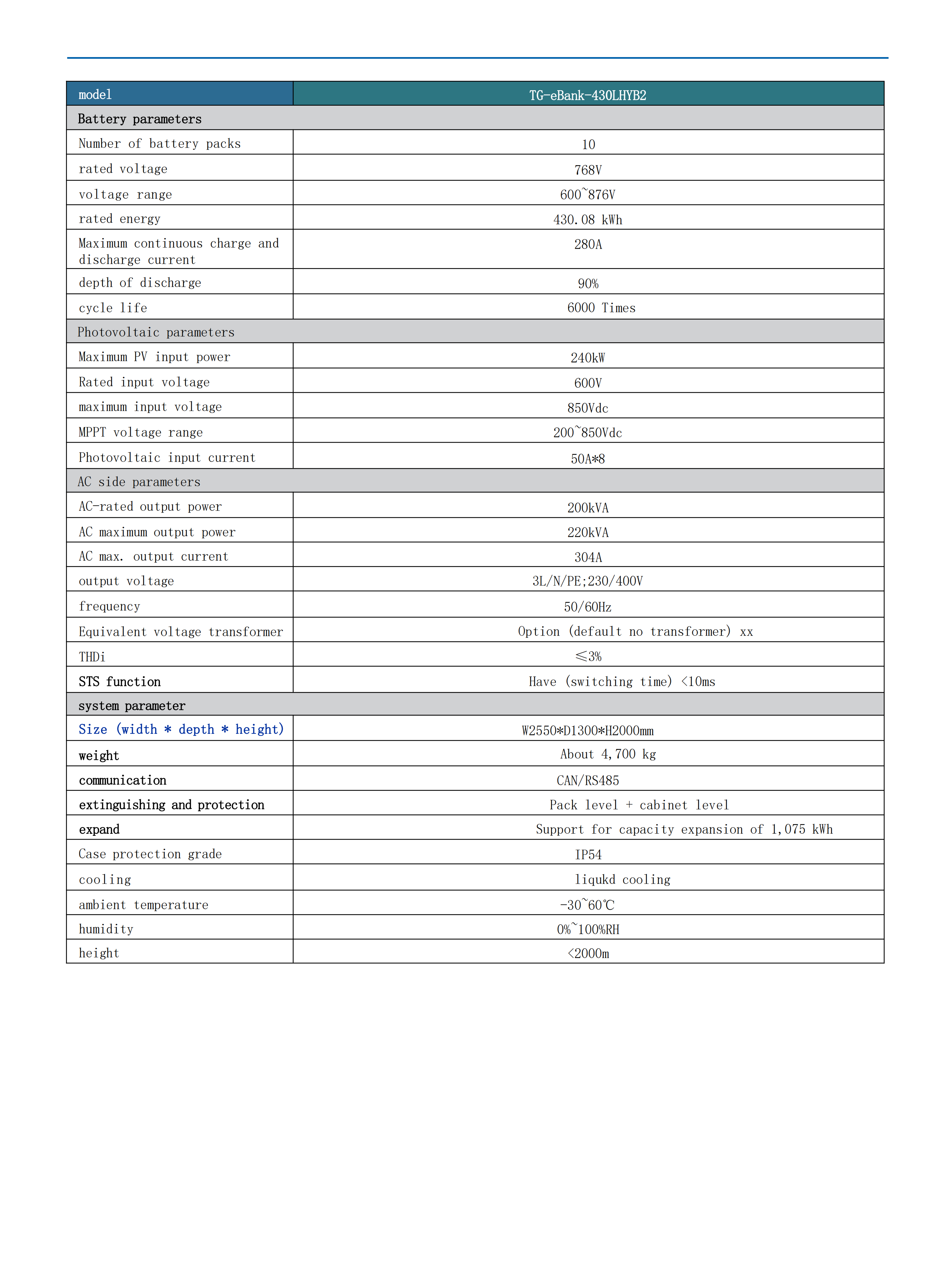

Rated power 200kW, standard capacity 430kWh. The combination of high power and large capacity is compatible with 314Ah/320Ah/340Ah large-capacity lithium iron phosphate battery cells. The universal series-parallel structure does not require modification and can be directly mass-produced for integration.

High-voltage direct current platform design, compatible with all types of power batteries / energy storage cells on the market. Existing battery cells and modules of manufacturers can be directly matched on the machine, reducing R&D investment and enabling rapid delivery.

Equipped with a customized BMS management system, capable of matching different brands of battery cell internal resistance, pressure difference, and discharge characteristics. Precise temperature control balancing, effectively extending battery cycle life and reducing the pressure on manufacturers' after-sales warranty.

2. Liquid cooling full-range temperature control, long lifespan and low degradation

The entire system adopts liquid cooling cooling system, uniform temperature control throughout the entire range, with extremely small temperature difference inside the cabin. It does not cause overheating runaway in high-temperature conditions and quickly preheats and starts in low-temperature environments.

Deeply adapted to industrial and commercial high-frequency charging and discharging scenarios, full-power continuous stable operation, significantly improved cycle life, and the entire cabinet's service life meets the long-term project implementation requirements.

Compared with air-cooled models, it has higher cooling efficiency, lower energy consumption, and slower cell degradation. The user experience is better, and the promotion and transaction rate of traders is higher.

3. Full-dimensional safety protection, zero concerns for market promotion

Integrated BMS cell protection, high-voltage electrical protection, intelligent fire linkage, and liquid cooling temperature control linkage four safety systems. Full-dimensional protection against overvoltage, undervoltage, overcurrent, short circuit, and high temperature.

Outdoor high protection cabinet body, resistant to high and low temperatures, dustproof and waterproof. It can be stably deployed in factory areas, outdoor power stations, and open-air scenarios in parks.

Many projects of the same series have been implemented, with a solid safety operation reputation, no safety accident cases, and no worries for traders in expanding customers.

4. Highly integrated and integrated, simple deployment and trouble-free operation

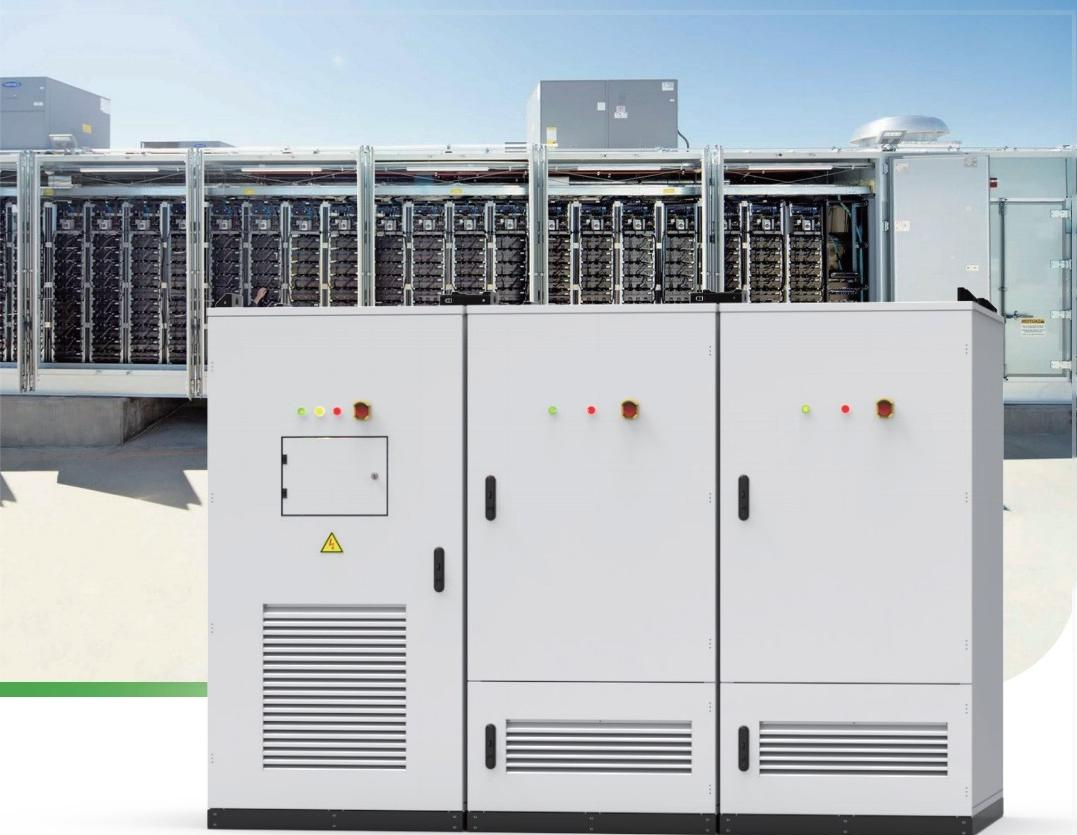

The entire cabinet integrates PCS converter, BMS battery management, EMS energy management, liquid cooling system, fire protection system, and power distribution system. The integrated whole machine is factory-issued, without the need for scattered assembly on-site.

The factory completes the entire process of debugging, and on-site only needs to connect power and grid, with a short installation period, significantly reducing construction labor and construction cost.

Equipped with a cloud intelligent monitoring platform, remote real-time viewing of battery status, power output, battery capacity data, equipment faults, remote diagnosis, and remote upgrade, significantly reducing operation and maintenance costs.

5. Efficient grid connection, strong revenue generation capability

PCS conversion efficiency is high, supporting full-power stable charging and discharging, suitable for peak-valley arbitrage, demand management, and photovoltaic storage power generation mainstream profit models.

Supports parallel expansion of multiple units, easily forming megawatt-level energy storage power stations, suitable for both large and small-scale projects.

II. Application Scenarios

1. Large industrial and commercial enterprises

Large production factories, industrial parks, industrial bases, used for peak-valley electricity arbitrage, reducing peak-time electricity consumption, lowering basic electricity costs, and providing emergency backup power during power outages, achieving significant cost reduction and efficiency improvement.

2. Distributed photovoltaic energy storage scenarios

Centralized industrial photovoltaic power stations, factory photovoltaic power storage, solving the problem of photovoltaic power rejection and limitation, increasing photovoltaic self-use rate, smoothing power fluctuations, and stabilizing grid output.

3. Photovoltaic storage charging station integration

Large public charging stations, fast-charging stations in logistics parks, combined with energy storage for peak shaving and valley filling, alleviating grid expansion pressure, reducing charging electricity costs, and enhancing the overall profit space of the station.

4. Grid assistance and microgrid off-grid scenarios

Grid sub-area voltage regulation, load peak shaving, demand-side response; mines, remote parks, islands off-grid independent power supply, replacing traditional diesel generators, more energy-saving and environmentally friendly, and more cost-effective.

5. Foreign trade export scenarios

The 200kW/430kWh high-power and high-capacity model meets the demands of large-scale industrial and commercial energy storage projects in Europe, America, and Southeast Asia. The entire machine is designed in a standardized manner, conforming to the certification standards of multiple countries. For traders, the entire cabinet can be exported easily, with larger order volumes, higher profit margins.

III. Solution Capabilities

(1) Exclusive Solution for Battery Manufacturers

Cell customization adaptation solution: Provide full-process technical support for cell parameter calibration, BMS program adaptation, module structure integration, and thermal management matching. The manufacturer does not need to independently develop the energy storage system; they can directly supply and integrate cells and modules for matching.

Standardized module integration solution: Unify structural dimensions, wiring interfaces, and installation positions, helping the battery manufacturer achieve standardized production of energy storage modules, increasing production capacity and reducing production costs.

Joint warranty co-construction solution: Bind the system quality guarantee + battery quality guarantee, clearly define responsibilities and divisions of labor, share after-sales risks, and enhance the purchasing confidence of end customers.

Capacity coordination solution: Based on the manufacturer's cell production capacity, flexibly allocate the entire machine orders. Both direct contract manufacturing and ODM branding cooperation can be carried out. Quickly dispose of battery inventory and expand the sales channels.

(2) Full-process Solution for Energy Storage Traders

One-stop project implementation solution: Provide free services for project preliminary estimation, energy storage scheme design, grid connection data assistance, on-site installation guidance, and later grid connection connection.

Cloud-based operation and maintenance management solution: Open operation and maintenance backend permissions, allowing traders to independently manage all their energy storage projects. Real-time data viewing, fault warnings, and easy management of end customers.

Channel support policies: Exclusive regional authorization, strict price protection, large-scale purchase bottom price, sufficient supply to ensure stable production and guarantee the trading speed of order delivery.

Project resource coordination: Share industry project resources and overseas channel resources to help traders quickly connect with end customers and improve the signing efficiency.

(3) Flexible Customization Capability

Can adjust power ratio, energy configuration, output voltage, communication protocol, and cabinet appearance according to customer needs. Adapt to different domestic grid standards and overseas electricity specifications to meet the needs of differentiated projects.

IV. Company Strengths

1. Technical R&D Strength

Possessing complete independent core R&D technologies for energy storage PCS, BMS, EMS, and liquid cooling temperature control. The core R&D team has been deeply engaged in the energy storage industry for many years, continuously iterating high-power energy storage products, with mature and stable technology, capable of quickly responding to new product demands and customization requirements.

2. Production Manufacturing Strength

Self-built large-scale energy storage integrated production base, with the ability to scale-produce high-power energy storage cabinets. Standardized operation of the entire production line, each machine passes full-load aging tests, high and low-temperature tests, and safety simulation tests before leaving the factory. The quality control is strict, and the delivered quality is unified and stable.

3. Qualification Certification Strength

Comprehensive and compliant products, possessing mainstream industry certifications both domestically and internationally, meeting domestic grid acceptance requirements and overseas export customs standards. Dual export channels without qualification barriers.

4. Market Implementation Strength

The company's multiple series of energy storage models have covered industrial and commercial energy storage projects in all provinces and cities across the country, and have also exported to overseas markets in large quantities. There are abundant cases of megawatt-level large-scale energy storage projects, high market recognition, and sufficient repeat purchase and positive order sources.

5. After-sales Service Strength

Establishing multiple offline service outlets across the country + a 7×24-hour online technical service team. Pre-sales technical coordination, in-process installation guidance, and post-sales fault rapid response throughout the process to provide full protection. There is no worry about cooperation after the contract.

6. Diverse and Flexible Cooperation Models

Battery manufacturers: Direct supply of cells for matching, module branding, system ODM joint development, deep binding of production capacity

Trading merchants: Regional agency distribution, exclusive supply for projects, whole-machine distribution, joint operation of overseas orders
