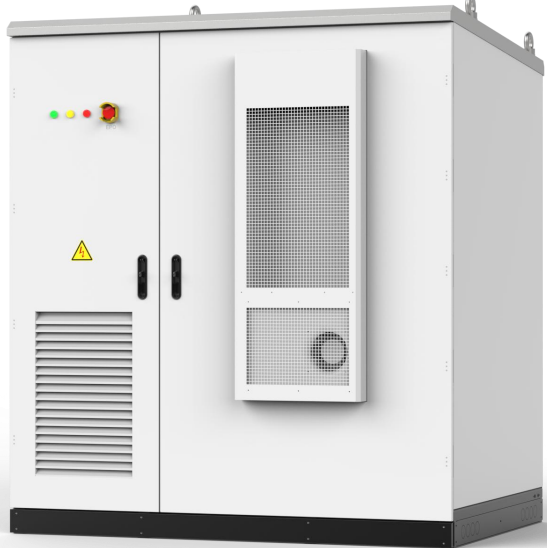

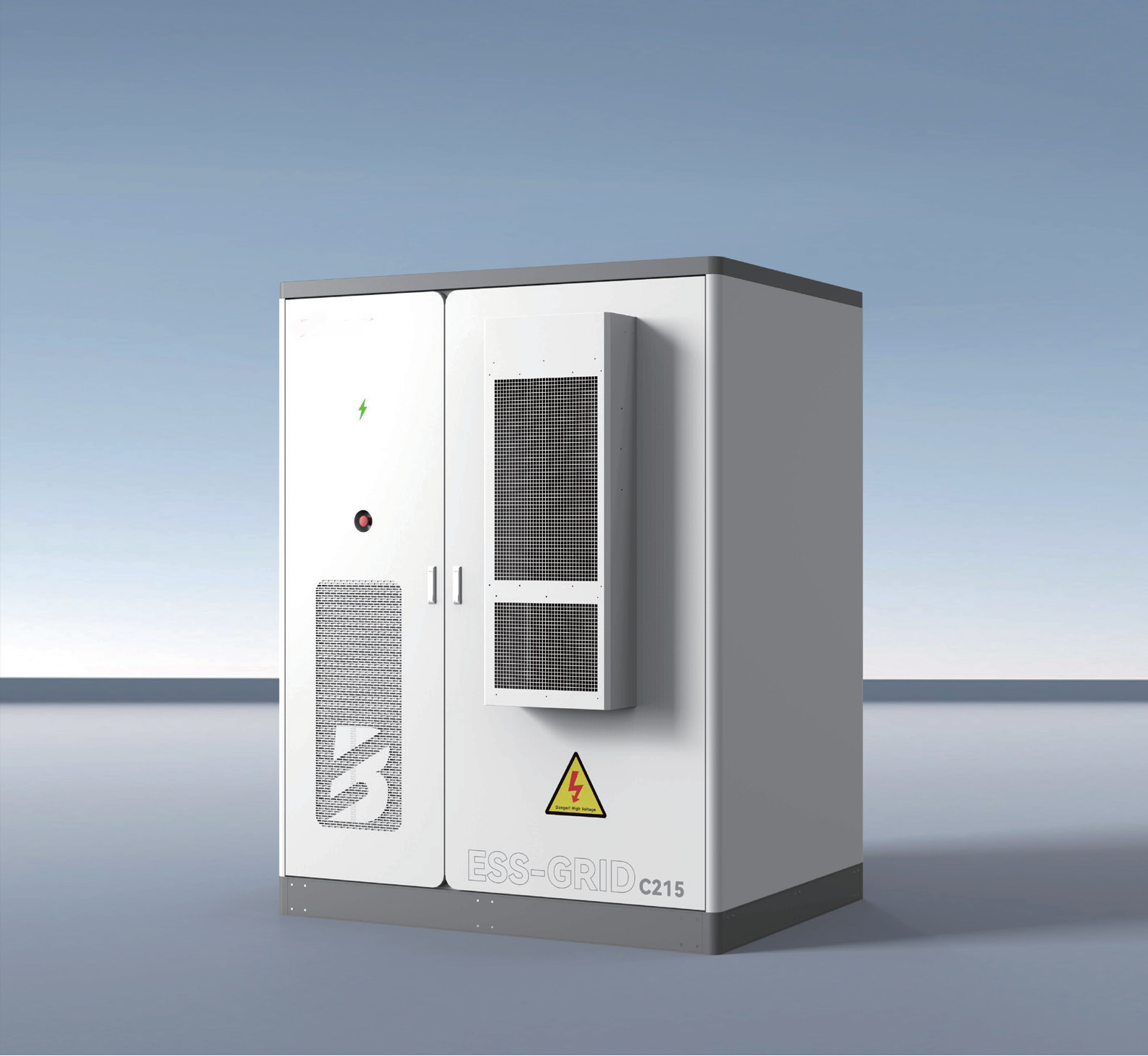

The TG-eBank series are outdoor batter cabinets for small-scale commercial and industrial energy storage, with thre diferent capacity options ba sed on diferent cell compositions, 60kW/215kWh, 100kW/215kWh, 125kW/244kWh etc. They can be widely used in farms, animal husbandr, hotels, schools, warehouses, communities and solar parks.
Product Description
I. Core Advantages
1. Standard Specifications, Battery Cell Friendly

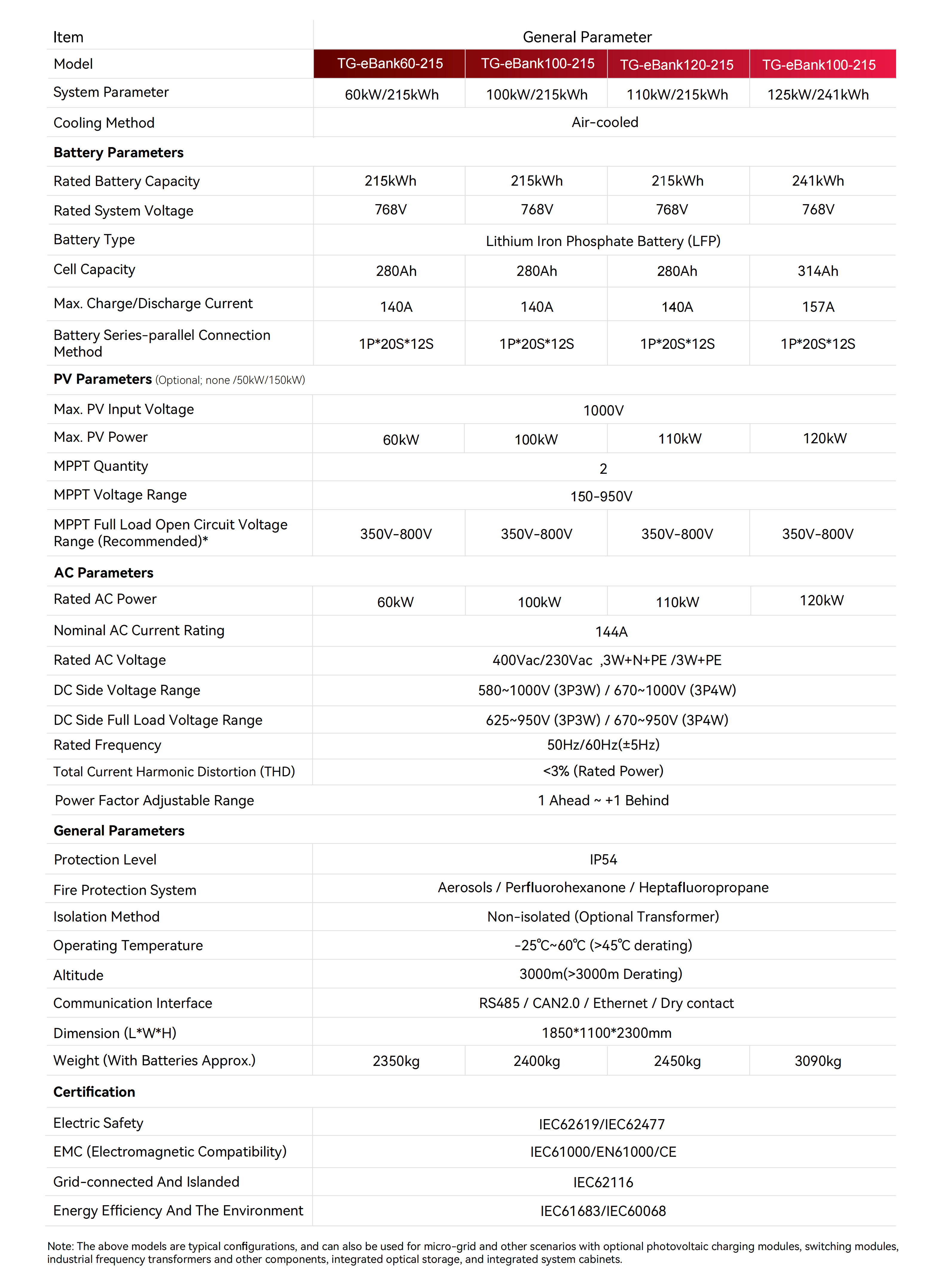

Model: 100kW/215kWh, High Voltage Platform 768V, Compatible with mainstream 3.2V/280Ah LFP Battery Cells (1P20S×12 Packs).
BMS Strategy is gentle, balanced and precise, with conservative protection and full lifespan; the manufacturer's battery cells can be directly applied and quickly mass-produced, without the need for secondary development.
2. Liquid Cooling Temperature Control + Top Safety
Liquid cooling heat dissipation, the temperature difference of the battery cell ≤ 2.5℃, the lifespan is increased by approximately 30%, and the system energy consumption is reduced by approximately 20%.
Three-level electrical protection + aerosol fire protection + IP54 protection, suitable for outdoor use, from battery cell to system zero thermal runaway.
3. High Integration and One-Stop Delivery, Extremely Fast

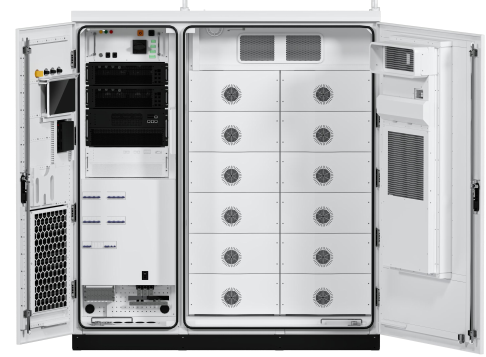

Six-in-One Cabinet: BMS/PCS/EMS/Fire Protection/Distribution/liquid cooling, the entire machine is factory-issued, plug-and-play.
Size 1800×1250×2000mm, occupying approximately 2.25㎡, 2 people can be installed and connected within 1 day, and the construction cost is reduced by 60%+.
4. High Efficiency and Long Lifespan, High Returns, Fast Payback
System efficiency ≥ 89%, cycles ≥ 6000 times (DOD 90%), typical industrial applications can achieve payback in 3–4 years.
Smart EMS automatic arbitrage + demand management, average annual revenue + 15%, remote operation, with extremely low failure rate.
5. Global Certification + Standardization, Suitable for Both Domestic and Overseas Markets
CE/UL/IEC/VDE Full Certification, no obstacles in domestic and overseas projects, good bidding and acceptance.

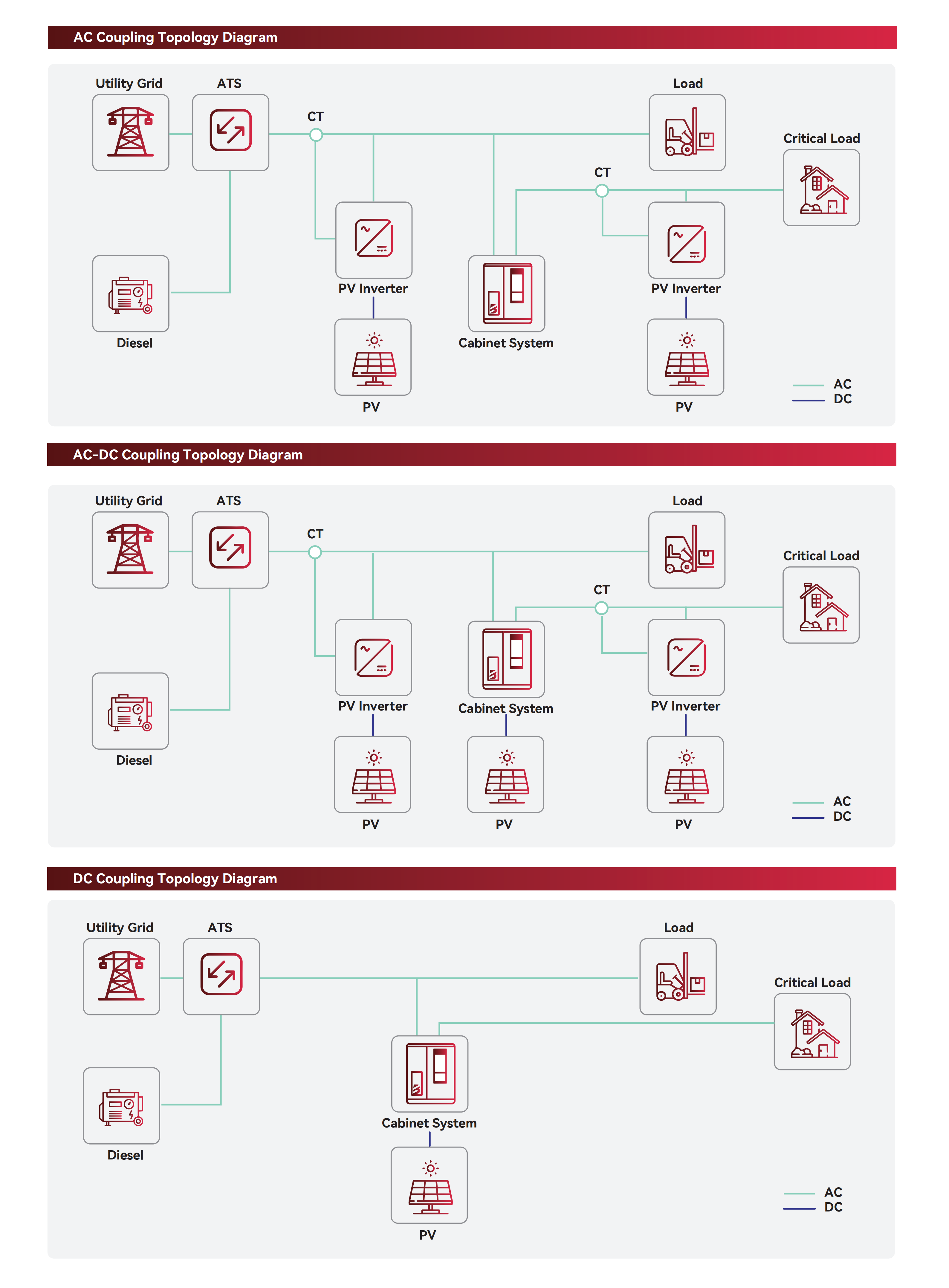

Compatible for grid connection / off-grid, single cabinet / multiple cabinets in parallel (1–20 units), phased expansion, with low capital pressure.
II. Application Scenarios
1. Industrial and Commercial Energy Storage
Factories / Parks / Office Buildings: Peak-valley arbitrage, electricity cost reduction by 30%+, backup power supply, integrated photovoltaic and energy storage.
2. Photovoltaic Energy Storage Integration
Industrial Photovoltaics / Residential Photovoltaics: Smooth output, increase self-consumption rate, power station revenue + 20%.
3. Charging Stations / Data Centers
Charging station clusters for peak shaving, no need for transformer expansion; data center UPS backup + dynamic capacity expansion.
4. Off-grid / Microgrid
Islands, mining areas, border defense, base stations, rural areas: Replace diesel generators, cost reduction by 70%+.
5. Grid Ancillary Services
Participate in frequency regulation, peak shaving, demand response, virtual power plant, more stable returns, better project approval.
III. Solution Capability
1. Battery Cell Deep Adaptation, Joint Customization
Can be customized for your 280Ah/300Ah/320Ah LFP based on BMS parameters, PACK structure, and cabinet layout, combined with brands and promotions.
Provide cabinet + structural components + electrical control as a complete set, you can only install the battery cells and then deliver, short cycle, high production capacity, stable return.
2. Standardization + Customization Dual Mode
Standard machine 215kWh/100kW: Fast delivery in batches, cost optimization, stable supply.
Support 150–500kWh customization, high voltage / low voltage, off-grid / grid-connected, full coverage of special projects.
3. One-stop Full Process Delivery
Solution design → Supply → Installation and Commissioning → Grid Connection → Operation and Maintenance Management, all-inclusive implementation, zero technical threshold.
4. Intelligent Cloud Monitoring + Strong After-sales Service
24-hour cloud monitoring, remote diagnosis, fault warning; 1 hour response, 4 hours on-site.
5-Year Warranty + Optional Extended Warranty, national + overseas service outlets, sufficient spare parts, no after-sales worries.
5. Channel Full Empowerment
Provide parameter manuals, quotation templates, bidding materials, promotion materials, technical training, regional protection + price stability.
IV. Company Strength
Professional Energy Storage R&D and Manufacturing
Having been deeply engaged in industrial and commercial energy storage for many years, the core team comes from leading battery/storage enterprises. The BMS/EMS/PCS/structure/thermal management are all self-developed.
2. Large-scale production capacity + Stable delivery
Intelligent manufacturing base, annual production capacity ≥ 3GWh, fully automated production lines, strict quality control (ISO9001/14001/45001).
Deep cooperation with mainstream battery manufacturers, stable supply chain, rapid delivery of large-scale orders.
3. Global performance + Benchmark projects
Cumulative delivery exceeds 2GWh, covering China, Europe, Southeast Asia, the Middle East, and Latin America, ranking among the top exporters of industrial commercial energy storage.
There are numerous domestic benchmark projects, selected for the Ministry of Industry and Information Technology's recommended list and the grid's qualified supplier list.
4. Full certifications + Compliance guarantee
CE/UL/IEC/VDE/EN full certifications, meeting global entry requirements and ensuring smooth project acceptance.
5. Capital + After-sales network
Supported by industrial capital, with abundant funds and flexible payment terms.
30+ service outlets across the country, 10+ service centers overseas, fast response to after-sales and high customer satisfaction.
