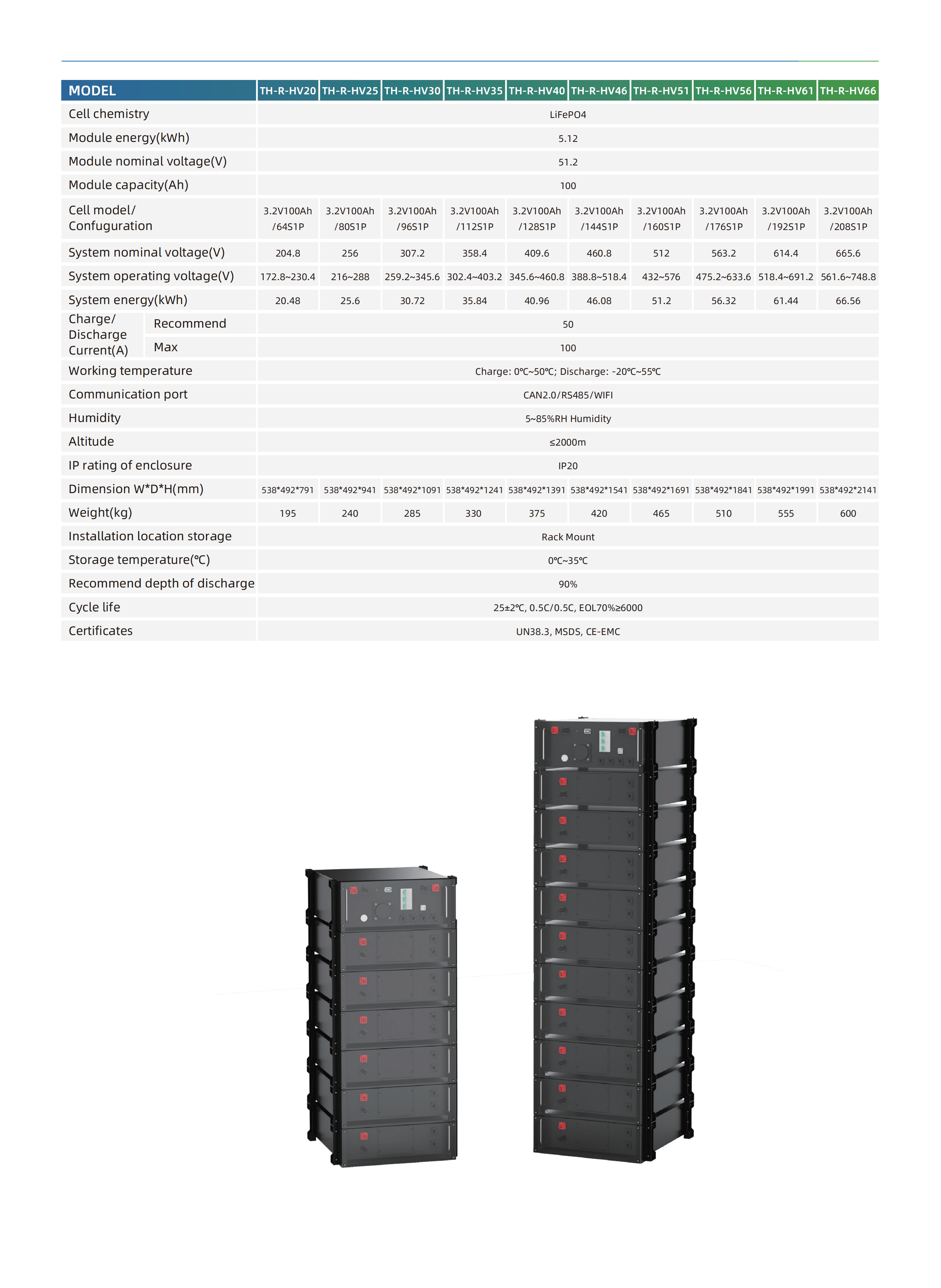

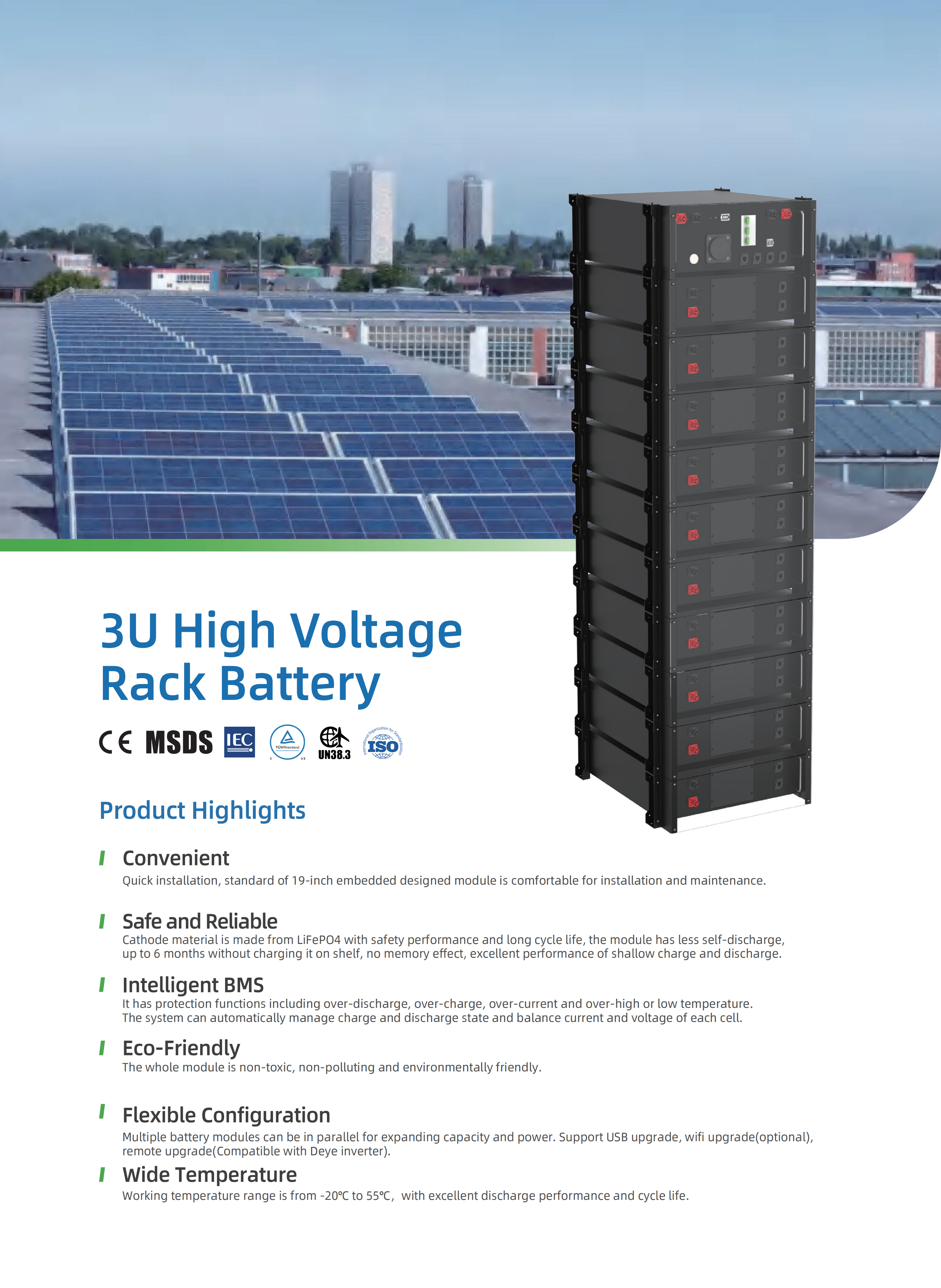

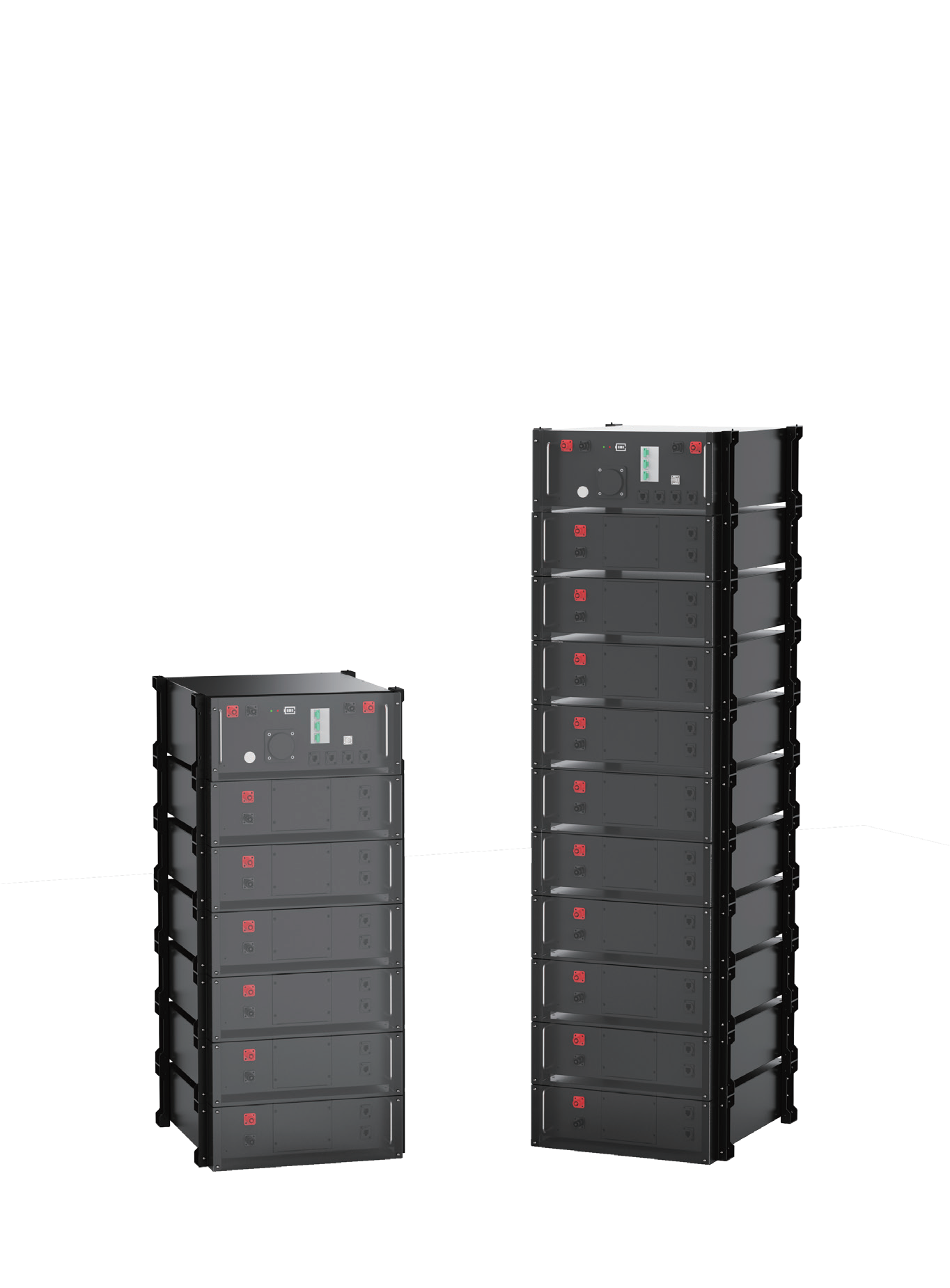

3U High Voltage Rack Battery

I. Core Advantages

1. Standard 3U/19-inch rack, high-voltage platform

3U height, 19-inch standard cabinet size, directly installed without cabinet modification, extremely compatible with the data center/cabinet.

High-voltage DC (HV) design: system voltage can reach 200~500V+, compatible with mainstream high-voltage PCS/inverters, lower line loss, higher efficiency, and better cost.

2. High energy density + modular flexible expansion

Single module typically 5–6kWh (51.2V/100Ah level), 3–12 units connected in series to form a high-voltage cluster, capacity ranging from 15kWh to 60+kWh as needed for expansion.

Support for multiple parallel connections, industrial/commercial / energy storage stations can expand from tens of kWh to several MWh smoothly, without wasting the initial investment.

3. Grade A lithium iron phosphate, ultra-long cycle + wide temperature operation

Using LiFePO4 Grade A battery cells, cycle life ≥ 6000 times @ 80% DOD, lifespan 10 years +.

Ultra-wide temperature range: charging - 10℃~60℃, discharging - 30℃~60℃, stable operation in high humidity 5%–95%, suitable for high/low temperature / outdoor data centers.

4. Intelligent BMS + multiple safety protections

Built-in industrial-grade intelligent BMS: overcharge / overdischarge / overcurrent / short circuit / overtemperature / balancing full protection, active + passive balancing, good cell consistency.

RS485/CAN/RS232 multiple communication ports, support remote monitoring, data collection, alarms, can be connected to the customer's cloud platform.

Metallic reinforcement, insulation strengthening, IP protection + air switch dual protection, safer operation.

5. Easy installation, easy transportation, easy maintenance

Rack-mounted + front/back maintenance, front panel operation, no need to move the cabinet; modular design, each module weighs approximately 35–45kg, 2 people can quickly install.

Friendly for ocean transportation: standard box size, stable stacking, no on-site welding / wiring, ready for installation upon arrival.

6. High cost-effectiveness, compatible with mainstream inverters / PCS

Has entered the white list of many leading inverters / PCS (such as Deye, SMA, Goodwe, etc.), ready to use, highly compatible.

High-voltage architecture reduces copper bars / cables / losses, lower system BOS cost, for traders: good profit margin, fewer after-sales services, low repair rate.

II. Application Scenarios

1. Communication base stations / data center backup power

5G base stations, data centers, IDU/ODU, edge computing sites: replace lead-acid batteries, long lifespan, small footprint, less maintenance.

2. Industrial and commercial energy storage (C&I ESS)

Factories, shopping malls, office buildings, parks: peak-valley arbitrage, demand management, backup power, off-grid / grid-connected.

3. Household / villa high-voltage energy storage (main force in Europe / overseas households)

Combined with high-voltage inverters: self-power supply, photovoltaic energy storage, emergency backup, grid-connected / off-grid.

4. Off-grid / microgrid (photovoltaic + energy storage integration)

Islands, mining areas, pastures, remote villages: photovoltaic + 3U high-voltage battery + PCS form off-grid power stations.

5. UPS backup power + medical / precision equipment

Hospitals, laboratories, precision manufacturing: high-voltage UPS, long delay, high reliability.

6. Container energy storage / large-scale energy storage station (front-end unit)

Stack 3U racks in containers to form high-voltage energy storage clusters, standardized, easy replication, quick delivery.

III. Solution Capability

1. Full-stack high-voltage energy storage solution design

Can be customized according to customer needs: voltage level (200–500V), capacity (15kWh–MWh level), cabinet configuration, BMS communication protocol. 1. Provide system diagrams, wiring diagrams, layout diagrams, construction instructions. Traders/contractors can directly use them.

2. Multi-brand PCS / inverter deep compatibility

Compatible with mainstream high-voltage inverters, providing test reports + whitelist support. Customers can achieve successful on-site debugging in one go.

3. Standard + non-standard rapid customization

Standard 3U models are in regular stock, with fast delivery time; special voltage / capacity / communication can be quickly customized within 2-4 weeks.

4. Global certifications + compliant delivery

Full series of CE, RoHS, UN38.3, MSDS, IEC62619 certifications are complete. Export is worry-free, customs clearance is smooth.

5. Localized technical support + after-sales guarantee

Provide English materials, overseas installation videos, remote debugging; key markets can support local warehouses + local after-sales services.

Warranty: 5-year standard warranty, can be upgraded to 10 years, reducing customer risks.

4. Company strength

1. Professional energy storage battery manufacturing, deeply engaged in high-voltage racks for many years

Specialized in LiFePO4 energy storage batteries, 3U high-voltage racks are the main， with mature technology and fast iteration.

2. Own cell / module / complete package production lines， with sufficient production capacity

Has a full industrial chain from cell to module to BMS to complete package to system integration， annual production capacity of 3GWh+， ensuring delivery of large orders.

Multiple automated production lines， good consistency， high yield， and controllable costs.

3. Strict quality control： full inspection + aging + traceability

100% electrical performance testing for each battery， full inspection of BMS functions， 4-hour aging， full inspection of internal resistance / pressure difference.

Full process barcode tracing， enabling precise problem location in after-sales.

4. Stable supply chain + cost advantage

Long-term strategic cooperation with leading cell factories， batch purchasing + self-developed BMS， competitive prices， healthy profit margins.

5. Global customer cases + high repeat purchase rate

Products are exported in batches to Europe， Southeast Asia， Australia， and Africa， providing services to communication operators， EPCs， energy storage integrators， and inverter manufacturers， with good reputation and high repeat purchase rates.
