Production Desciption
Performance Features
★ Precise control of voltage and current double closed loop, SPWM technology outputs a pure sine wave AC power supply;
★ Two models of grid power bypass and inverter output, with uninterruptible power supply function;
★ Various charging methods: grid power, solar panel, grid&solar mixing, etc.;
★ Technology of Maximum power following MPPT;
★ LCD screen displaying dynamic charter interfaces.
★ Lightning protection and anti-surge function integrated, fool-prove design facilitates engineering installation;
★ Lithium iron phosphate battery PACK integrated to ensure long life and high safety in the life span.

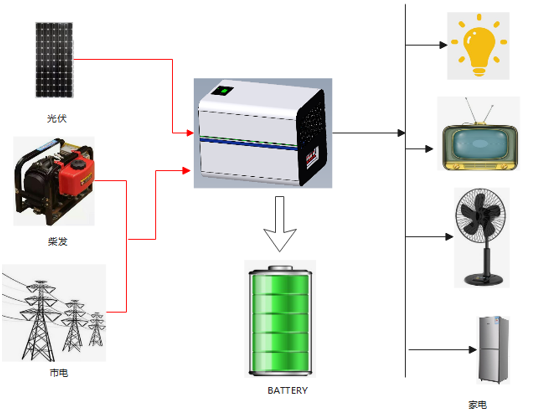

Applications
| ① | Air In | ⑩ | Fans(Air Out) |

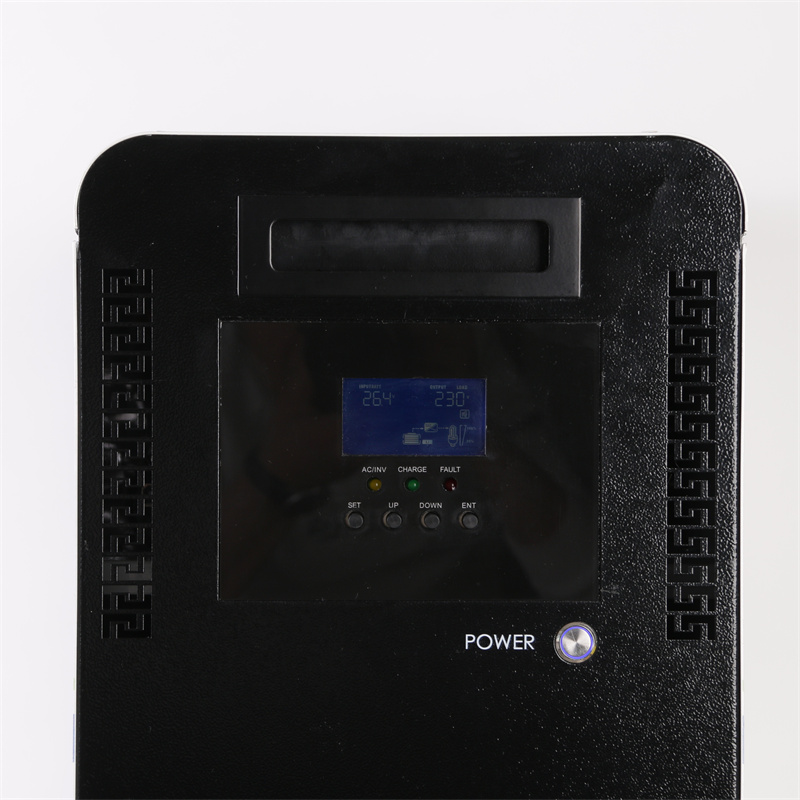

| ② | LCD Screen | ⑪ | Anti-Surge Protection |

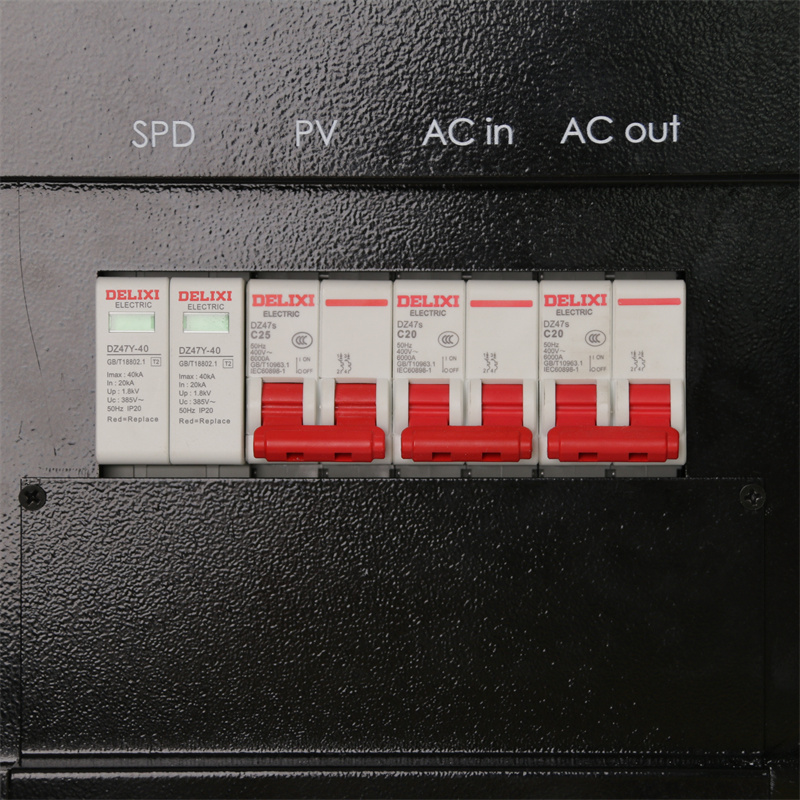

| ③ | Indicator Light | ⑫ | PV Charge Switch |
| ④ | Press Button | ⑬ | AC Input |
| ⑤ | Main Switch | ⑭ | AC Output |
| ⑥ | AC Connector | ⑮ | Guard Plate |
| ⑦ | Lockable Wheels | ⑯ | Ground Wire |
| ⑧ | PV Input Connector | ⑰ | Cable-In Channel |
| ⑨ | Reboot Button |
Parameters
| Model | Mate2000W/3KWh | |
| Battery Type | LiFePO4 | |
| Rated Voltage | DC24V | |
| Nominal Capacity | 3KWh | |
| AC Input | ||
| Input Voltage | （170Vac-265Vac）+/-2% /（90Vac-265Vac）+/-2% | |
| Frequency | 47-55HZ（+/-0.3HZ） | 57-65HZ（+/-0.3HZ） |
| Overload Protection | Circuit Breaker | |
| Efficiency | 95% | |
| Switching Delay | 10mS(between grid power bypass and Invertor) | |
| Max. Overload Current of Bypass | 30A | |
| Invertor Output | ||
| Wave Form | Pure Sine Wave | |
| Rated Power | 2000W | |
| Power Factor | 1 | |
| Rated Voltage | 230Vac +/-5% | |
| Frequency | 50HZ +/-1HZ | |
| Efficiency | 92% | |
| Battery Working Voltage | 20Vdc-29.2Vdc | |
| PV Charge | ||
| Voltage Range | 30Vdc-100Vdc（MPPT30Vdc-85Vdc） | |
| Max.Power | 1400W | |
| Max.Current | 60A | |
| AC Charge | ||
| Max.Current | 60A（+/-5A） | |
| Short Circuit Protection | Fuse | |
| General Info | ||
| Working Temperature | -15-55℃ | |
| Noise | <60dB | |
| L*W*D/Weight | 565*504*280mm/38Kg | |
| Cooling System | Forced Air | |
