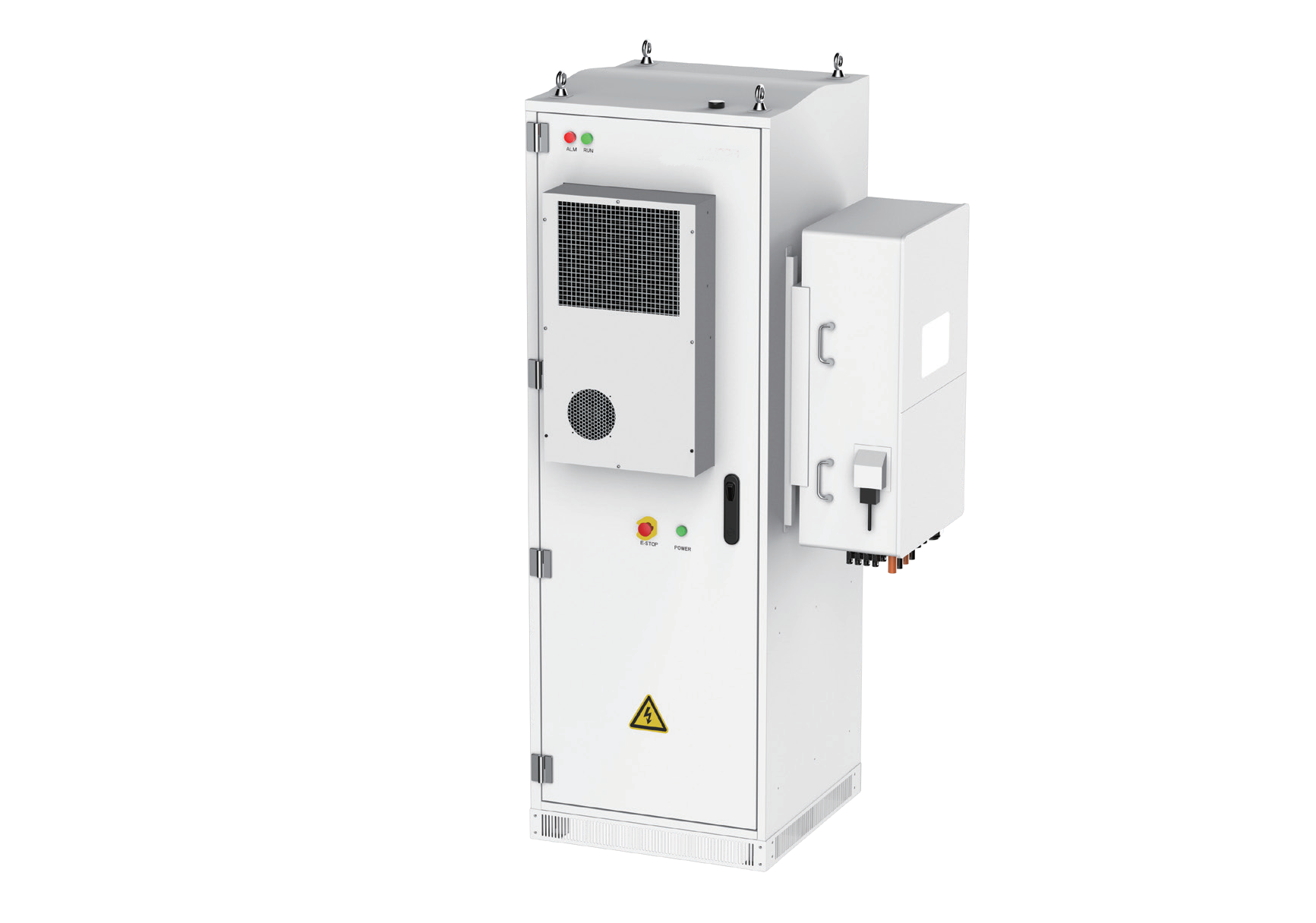

TG-eBank-107F

Features

 • Easy to install and deploy with large space utilization

 •Unique modular design & flexible function configuration

 •Strong scalability, simple & convenient expansion on both AC and DC sides

 •With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Advantages

1. High-performance, strong battery compatibility

High energy density: 107 kWh standard capacity, using 280Ah lithium iron phosphate cells (1P20S), leading system energy density, compatible with mainstream 3.2V cells, no need for cell modification, directly compatible.

Efficient charging and discharging: Bidirectional PCS conversion efficiency ≥ 95%, supports 0.5C - 1C continuous charging and discharging, compatible with high-rate battery operation conditions, increasing battery cycle life by 20%+.

Super long cycle: BMS precise balancing + cell-level thermal management, cycle life ≥ 6000 times (DOD 80%), battery life matches system depth, reducing manufacturer warranty pressure.

2. Full-chain safety, reducing after-sales risks

Four-layer safety protection: BMS (overcharge / overdischarge / overcurrent / short circuit) + high-voltage fuse + aerosol + perfluorohexanone fire protection + temperature control linkage, zero safety blind spots from cell to system.

High protection level: IP54 cabinet, -20°C to 55°C wide temperature operation, compatible with outdoor / industrial complex environments, battery works stably in extreme conditions.

Zero accident record: 2 years of batch implementation +, no safety incidents, traders' promotion without concerns, battery manufacturers' delivery reputation strong.

3. Minimal integration, cost reduction and efficiency improvement

Integrated design: Battery, PCS, BMS, EMS, temperature control, fire protection highly integrated in a single cabinet, compact size, only 0.7㎡, transportation / hoisting / installation completed in 1 day, deployment cycle shortened by 70%.

Plug-and-play: Standard interface, no need for professional debugging, traders can deliver simply with basic training, battery manufacturers' delivery efficiency improved by 50%+.

Low operation and maintenance: EMS remote monitoring + intelligent alarm, 3+24-hour technical support, operation and maintenance costs reduced by 60%, reducing manufacturer / trader after-sales manpower investment.

4. Flexible adaptation, wide market coverage

Modular expansion: Single cabinet 107 kWh, supports multi-cabinet parallel connection (maximum 1MW/2MWh), compatible with different scale industrial and commercial projects, battery manufacturers can flexibly split cells / modules for supply.

Wide voltage compatibility: Supports 135V - 800V high-voltage batteries, compatible with mainstream battery manufacturers' voltage systems, no need for customized development.

Multiple operation modes: Self-generation and self-consumption, peak-valley arbitrage, backup power, grid frequency regulation, covering all industrial and commercial scenarios, traders can deliver in multiple scenarios, maximizing revenue.

II. Application Scenarios

1. Industrial and commercial users

Factories / parks: Peak-valley arbitrage (annual revenue 15%+), backup power (power outage protection for production), photovoltaic integration for power consumption.

Supermarkets / office buildings: Peak shaving, reducing demand charges, emergency lighting / elevator power supply.

Data centers: UPS-level backup (switching < 20ms), ensuring zero server interruption.

2. Photovoltaic / photovoltaic storage projects

Residential / industrial photovoltaic integration: Increase self-generation rate to 80%+, solve power loss problem, battery manufacturers + photovoltaic EPC binding for shipment.

Photovoltaic storage charging station: Charging station + storage + photovoltaic, smooth grid impact, increase charging revenue, battery batch supply.

3. Grid / microgrid

Community governance: Expansion of capacity and voltage regulation, compatible with old residential areas / rural grids, policy subsidies are many, collection is stable.

Off-grid microgrid: Mines / islands / remote areas, independent power supply, replacing diesel generators, battery long-term stable supply.

4. Trader advantage scenarios

 Export Support: The demand for industrial and commercial energy storage in Europe, America, and Southeast Asia has surged. 107kWh is the mainstream capacity. Battery manufacturers directly supply battery cells / modules, and trading companies export in full containers, achieving high profits.

Project Customization: The capacity (80–107kWh), voltage, and interface can be adjusted according to customer needs. Battery manufacturers offer flexible production, and trading companies can accept orders flexibly.

III. Solution Capabilities

1. Battery Supply Solution

Battery Cell Adaptation Solution: Compatible with 280Ah/300Ah lithium iron phosphate battery cells, providing BMS parameter customization, cell balancing debugging, and system matching testing. Manufacturers do not need to conduct additional research and can directly mass-produce and supply.

Module Integration Solution: Supports 1P20S standard modules, providing structural design, wiring scheme, and thermal management matching. Manufacturers can produce modules in a standardized manner, reducing costs.

Quality Assurance Joint Solution: System 5-year warranty, battery 5-year/6000-cycle warranty. Joint insurance, reducing manufacturers' warranty risks and enhancing customer trust.

2. Project Delivery Solution

One-stop Delivery: Provide solution design, equipment supply, installation and commissioning, grid connection acceptance, and operation and maintenance management services throughout the process. Trading companies operate with light assets and do not require professional teams.

Remote Operation Platform: EMS cloud monitoring, real-time viewing of battery status, charging and discharging data, and alarm information. Supports remote upgrades and fault diagnosis. Trading companies can manage projects without leaving their homes.

Financial Support Solution: Jointly provide financing through financial institutions, installment repayment, and EPC advance funding. Lower customer thresholds, making it easier for trading companies to accept orders and faster for them to receive payments.

3. Customized Solutions

Capacity Customization: Flexible adjustment of 80–107kWh, suitable for different budget customers.

Voltage Customization: 380V/480V/600V options available, suitable for different grid standards.

Interface Customization: Compatible with mainstream inverters / photovoltaic module protocols, seamlessly connecting with existing equipment.

IV. Company Strengths

1. R&D and Production Strength

Professional Energy Storage Team: Core team with 10 years of experience in the energy storage industry, focusing on the research and development of industrial and commercial energy storage systems. Possessing core technology patents for BMS/EMS/PCS, ensuring self-control and independence, without relying on third parties.

Standardized Production Line: Own energy storage system integration factory, with an annual production capacity of 50,000 units. Fully certified by ISO9001/14001/45001, ensuring stable quality and short delivery cycle (7–15 days).

Strict Testing: Each product undergoes 48-hour full-load aging test +, passing CE/IEC/UN38.3 certifications, ensuring global compliance and no export worries.

2. Market and Customer Strength

Batch Implementation Cases: 200+ industrial and commercial projects domestically and 50+ export projects overseas, covering factories, parks, photovoltaic, microgrids, etc. Verified by customers, with high repeat purchase rates.

Core Partners: Established long-term cooperation with leading battery manufacturers, photovoltaic EPCs, and trading companies, ensuring a stable supply chain and competitive prices.

Global Service Network: 3 major service centers in China and 5 offices overseas, 3+24-hour technical support, rapid response, and worry-free after-sales service.

3. Flexible Cooperation Models

Battery Manufacturer Cooperation: ODM/OEM customization, batch purchase of battery cells / modules, joint research and development, helping manufacturers reduce production capacity and increase added value.

Trading Company Cooperation: Regional exclusive agency, project dividends, bottom price supply, market protection, high profit margins, and low competition pressure
