20 ft 500kW/860.16 kwh Container

20 ft 500kW/860.16 kwh Container Datasheet

Equipment	Specification	Quantity	Remarks
PWS1-500K	Energy storage converter Rated power: 500kW, equipped with isolation transformer cabinet DC input: 600V ~ 900V AC input: 400V Dimension (width, depth and height): 2200mm*800mm*2160mm With STS switching cabinet, passive grid-connected and off-grid can be realized, and the switching time is less than 15ms.	1 unit	The maximum load capacity is 550kW and the short-term peak current is 793A
PWD-800K	Microgrid switching cabinet Rated power: 800kW Dimensions (width, depth and height): 800mm*800mm*2160mm With PCS, it can realize passive seamless passive grid connection and off-grid, and the switching time is less than 15ms.	1 unit
Lithium iron phosphate battery system	500kWH, voltage range 660 ~ 876V	1 set	860.16 kWh
EMS system	The system is mainly used for data acquisition and monitoring software, and microgrid energy storage strategy control.	1 set	Kwh
20-foot container system	Specification (width, depth and height): 6058mm*2438 mm*2591mm The system includes: temperature control system (air conditioning), fire control system, system power distribution, temperature and smoke sensors, etc.	1 set	Battery configuration scheme: ① Equipped with four single-cluster battery racks with a total power of 860.16 kwh; ② The single cluster battery rack consists of 10 24-cell 280AH modules, and the power of the single cluster battery rack is 215.04 kwh.

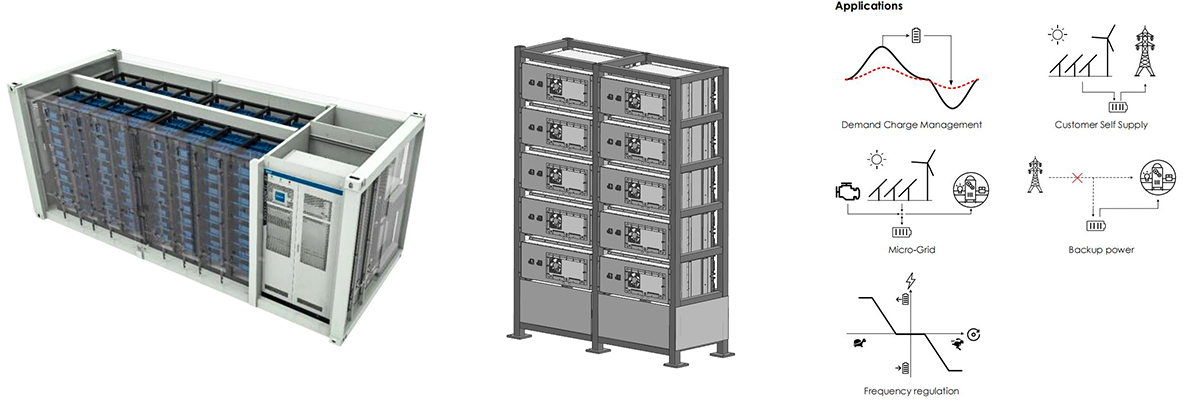

Application scenario of cluster battery rack (215.04 kwh) in 20-foot container system (500kW/860.16 kwh) (this application requires 4 dual- cluster battery racks)

Application scenarios: Factory peak-valley arbitrage, peak shaving and valley filling, emergency backup power supply, photovoltaic integrated energy storage. It can also meet the distribution needs of traders to various channels such as supermarkets, parks, and logistics parks.

Core advantages

As a source battery manufacturer, we eliminate the middle links and provide full-chain support for traders and factories from product research and development, production and manufacturing, quality control to after-sales implementation. This ensures that you have no worries in cooperation:

1. Self-developed battery cells, core technology controllable: The core battery cells of the container are independently developed, produced, and sold by our company. From the selection of anode and cathode materials to battery encapsulation, the entire process is quality-controlled. The energy density is high, the cycle life is long (cycle times ≥ 6000 times), ensuring the stability and durability of the energy storage system from the source, and significantly reducing the later maintenance costs;

2. Full production line manufacturing, sufficient capacity for customization: We have a large modern production base, with a full industrial chain layout of battery cells, PACK, and energy storage systems. The monthly production capacity of 20FT standard containers is stable, which can meet the large-scale order requirements of traders; at the same time, it supports mild customization based on the basic model (such as adapting to different regional power grid standards, adding monitoring modules, etc.), and is compatible with different market channels worldwide;

3. Integrated integration, lower implementation costs: The product is a plug-and-play fully integrated design. The battery cells, BMS, PCS, cooling system, and fire protection system are all pre-installed and debugged. After arriving at the site, only simple wiring is required to put it into use, without additional installation and debugging costs for the factory, making it easier for traders to present solutions to customers in channel sales;

4. Multiple safety protections, meeting industry standards: Equipped with our self-developed BMS intelligent management system, it can monitor battery voltage, current, and temperature in real time, and give precise warnings. It is equipped with fire extinguishing systems and explosion-proof cooling designs, meeting domestic and international energy storage product safety standards such as GB/T and IEC. The factory can use it more safely, and traders have no售后 safety concerns in distribution.

For Traders: Exclusive Channel Empowerment, Easily Expand Energy Storage Business

1. Originating Factory Price, Profits Abundant: Without any middle agent's markup, the exclusive supply price directly given to the trading channel is provided directly to the traders, leaving sufficient distribution profits. At the same time, tiered ordering discounts are supported. The larger the order volume, the lower the unit price;

2. Standardized Products, Compatible with Global Channels: The 20FT standard container complies with international logistics and power grid standards. It can directly connect with overseas energy storage channels and domestic industrial and commercial distribution channels. We provide a complete set of product certification materials (such as CE, FCC, CNAS, etc.) to help you quickly enter the market;

3. One-stop Material Support: Free provision of product brochures, parameter posters, solution PPTs and other marketing materials. At the same time, a professional technical team will be arranged to provide product training for your sales team, explaining product selling points, installation processes, and common problem solutions;

4. Flexible Logistics and Inventory Policies: Support for multiple nearby warehouses for local delivery across the country. It can also cooperate with traders for port booking, maritime customs declaration and other supporting services. For core partners, certain inventory credit support can be provided to alleviate financial pressure.

For Factories: Tailor-made Electricity Usage Plans, Cost Reduction and Efficiency Enhancement in One Step

1. Precise Calculation, Customized Energy Storage Solution: Based on the actual situation of the factory's electricity load, peak-valley electricity prices, production shifts, etc., our professional engineering team will conduct on-site surveys for free and customize an exclusive energy storage solution for you. Precise calculation of peak-valley arbitrage benefits, peak shaving and valley filling electricity cost, allowing you to clearly understand the investment return period;

2. Factory Direct Supply, Higher Cost Performance: Skipping all intermediate links, directly providing factory equipment + original installation + original after-sales service. Compared to the quotations of market middlemen, the cost is lower, and the equipment quality and after-sales are more guaranteed;

3. Emergency Backup Power Supply, Ensuring Production Freedom: The energy storage container supports emergency backup power supply mode. When the factory encounters power grid outages or restrictions, it can quickly switch to power supply mode, ensuring the normal operation of core production equipment and avoiding production losses caused by power outages;

4. Photovoltaic + Energy Storage Integrated Coupling: If the factory has a photovoltaic power station, we can seamlessly connect the energy storage container with the photovoltaic system to achieve self-generation and self-storage of electricity, maximizing the utilization of photovoltaic energy, and further reducing electricity costs.

Strength

Our company is a professional enterprise specializing in battery research and production. We have been deeply involved in the battery field for many years, possessing a number of national patent technologies, modern production bases, and a professional R&D and sales team. We have the full production capacity for the entire battery chain, including cells, PACK, and energy storage systems, as well as experience in implementing one-stop energy storage solutions.

We have always adhered to the concept of "quality first, mutual cooperation and win-win". We have provided stable energy storage product supply chains to many traders and solved electricity demands such as industrial and commercial energy storage and emergency backup power for hundreds of factories. Our products are exported worldwide and have received unanimous recognition from our partners.
