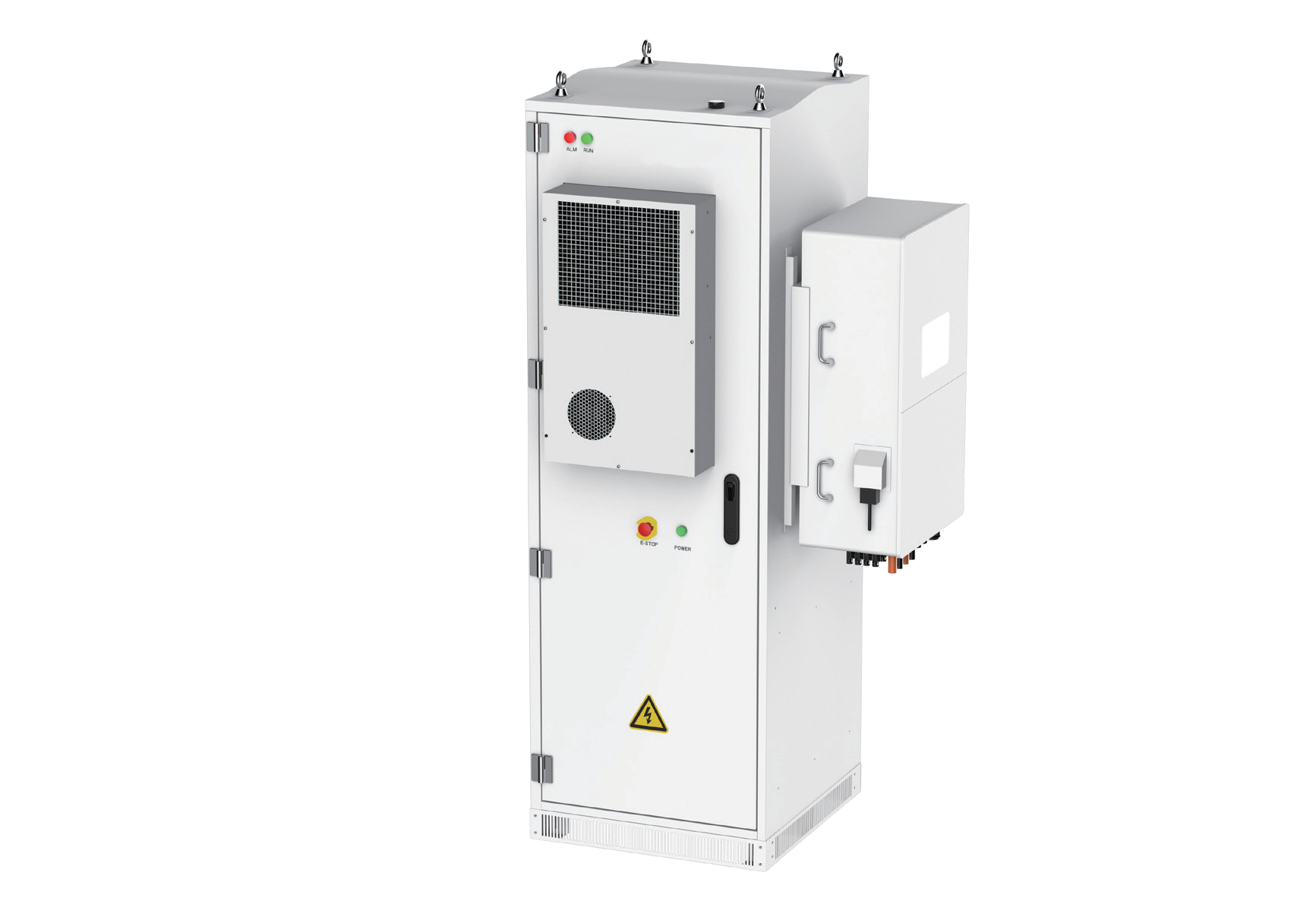

30kw60kwh-TG-eBank-60F2

Features

• Easy to install and deploy with large space utilization

• Unique modular design & flexible function configuration

 • Strong scalability, simple & convenient expansion on both AC and DC sides

• With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Advantages

1. High-security Lithium Iron Phosphate (LiFePO4)

Use automotive-grade / energy storage-grade LiFePO4 cells, with excellent thermal stability and no risk of thermal runaway; certified by UN38.3, IEC62619, CE, IP65, etc., suitable for industrial and commercial outdoor scenarios.

2. Ultra-long cycle life + High system efficiency

Cell cycle ≥ 6000 times @ 80% DOD, system lifespan ≥ 15 years; round-trip efficiency ≥ 92%, 10% higher than lead-acid, more energy-efficient and faster return on investment in the long term.

3. 30kW/60kWh standard all-in-one machine, plug-and-play

Rated power 30kW, capacity 60kWh, 307.2V high-voltage platform, 100A continuous charging and discharging; integrated BMS, EMS, air conditioning, fire protection, inverter (optional), ready to install upon arrival, wiring ready for use, no complex on-site assembly required.

4. Modular + High scalability

Single cabinet 30kW/60kWh, supports multi-cabinet parallel operation (up to 3 clusters, 180kWh); both AC and DC sides can be expanded, suitable for 2-hour to 6-hour backup power requirements.

5. Intelligent EMS + Remote operation

Built-in energy management system EMS, supports peak-valley arbitrage, backup power, isolated grid, photovoltaic connection; RS485/CAN+4G remote, real-time monitoring, remote upgrade, fault warning, low operation and maintenance costs.

6. Outdoor industrial-grade design

IP65 protection, wide temperature (-20℃~55℃), industrial-grade air conditioning temperature control and dehumidification; cabinet anti-corrosion and dust-proof, suitable for factories, parks, overseas, etc., harsh environments.

II. Application Scenarios

1) Industrial and Commercial Users

Peak-valley arbitrage / peak shaving: charging at night during low demand and discharging during peak hours, significantly reducing electricity costs (especially for large industrial users).

Backup power (UPS): factories, office buildings, shopping malls, hospitals, data centers, seamless switching in case of power outage, ensuring critical loads are not interrupted.

Load demand management: reducing transformer capacity, reducing basic electricity costs, alleviating pressure on grid expansion.

2) Photovoltaic / Wind Power Integration

Smooth fluctuations + self-consumption: photovoltaic generation during the day, storage at night; increase self-consumption rate, reduce power loss, improve project IRR.

Off-grid / micro-grid: remote factories, mines, islands, photovoltaic towns, independent power supply, stable and reliable.

3) Charging Stations / Charging Stations

Fast charging + peak shaving: charging station equipped with 60kWh energy storage, alleviating grid impact, reducing expansion costs; discharge during peak hours for fast charging, improving revenue.

4) Overseas Markets

Power shortage / unstable grid: Southeast Asia, Africa, Latin America, 30kW/60kWh standard cabinet, easy transportation, installation, replication, suitable for batch production.

III. Solution Capabilities

1) Standard products + Customization Adaptation

Standard model: TG-eBank-60F2 (30kW/60kWh), mass production, quick delivery, stable price.

Customization: adjustable voltage, interface, communication protocol, cabinet size, brand licensing (OEM/ODM).

2) System integration + One-stop delivery

Turnkey solution: energy storage cabinet + inverter + distribution cabinet + fire protection + monitoring, complete design, supply, installation, commissioning, training.

Multi-scenario solution library: industrial peak-valley, photovoltaic energy storage, off-grid micro-grid, charging station energy storage, mature solutions directly implemented.

3) Technical support + Full-cycle service

Pre-sales: free electricity cost calculation, revenue model, solution design; provide sample testing, technical.

In-sales： 7×24-hour technical support， remote installation and commissioning guidance； priority production for batch orders， guaranteed delivery schedule.

Post-sales： 5-year warranty + 15-year lifespan support； Remote maintenance + on-site service, with ample spare parts and quick response.

4) Self-developed BMS/EMS, with strong compatibility

Self-developed BMS: Precisely monitors cell voltage / temperature / internal resistance, providing full coverage for overcharge / overdischarge / overcurrent / overtemperature / short circuit protection.

EMS open protocol: Supports Modbus, CAN, TCP/IP, and can be connected to customers' existing photovoltaic inverters, power grids, and cloud platforms.

Four. Company Strengths

1) R&D and production strength

Energy storage professional manufacturer: Focuses on industrial and commercial energy storage / lithium battery systems for many years, self-developed BMS/EMS, with core technologies independently controllable.

Large-scale production capacity: Own or cooperative intelligent production lines, strong delivery capability, and controllable costs.

Strict quality control: Full process IQC → IPQC → FQC → OQC, each piece of equipment undergoes ≥ 24-hour full-load aging test, 100% inspection upon leaving the factory.

2) Qualifications and certifications

Cell / system certifications: CE, IEC62619, UN38.3, MSDS, IP65, ISO9001/14001, etc., meeting the entry requirements of mainstream markets worldwide.

3) Project performance and market reputation

Domestic cases: Covering factories, parks, commercial buildings, photovoltaic power stations, charging stations, etc., with hundreds of projects implemented cumulatively.

Overseas channels: Export to Southeast Asia, Europe, Africa, Latin America, etc., and long-term cooperation with multiple EPCs, traders, and system integrators.

4) Flexible cooperation models

Agency / distribution: Regional exclusive agency, price protection, market support, training empowerment.

OEM/ODM: Branding production, custom branding, custom appearance, supporting traders to build their own brands.

Batch orders: High-quality price advantage, account period support (for high-quality customers), stable supply, and rapid response.
