★ Precise control of voltage and current double closed loop, SPWM technology outputs a pure sine wave AC power supply;
★ Two models of grid power bypass and inverter output, with uninterruptible power supply function;

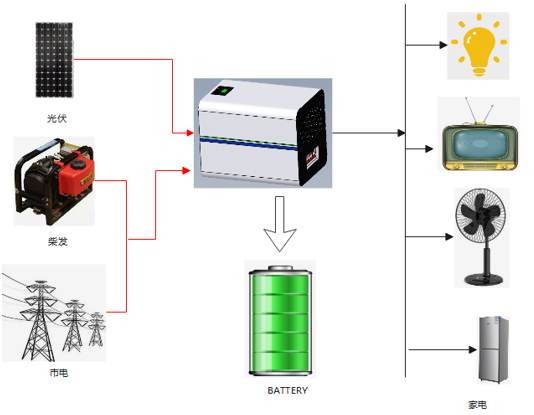

★ Various charging methods: grid power, solar panel, grid&solar mixing, etc.;
Production Desciption
Performance Features
★ Precise control of voltage and current double closed loop, SPWM technology outputs a pure sine wave AC power supply;
★ Two models of grid power bypass and inverter output, with uninterruptible power supply function;
★ Various charging methods: grid power, solar panel, grid&solar mixing, etc.;
★ Technology of Maximum power following MPPT;
★ LCD screen displaying dynamic charter interfaces.
★ Lightning protection and anti-surge function integrated, fool-prove design facilitates engineering installation;
★ Lithium iron phosphate battery PACK integrated to ensure long life and high safety in the life span.
Applications

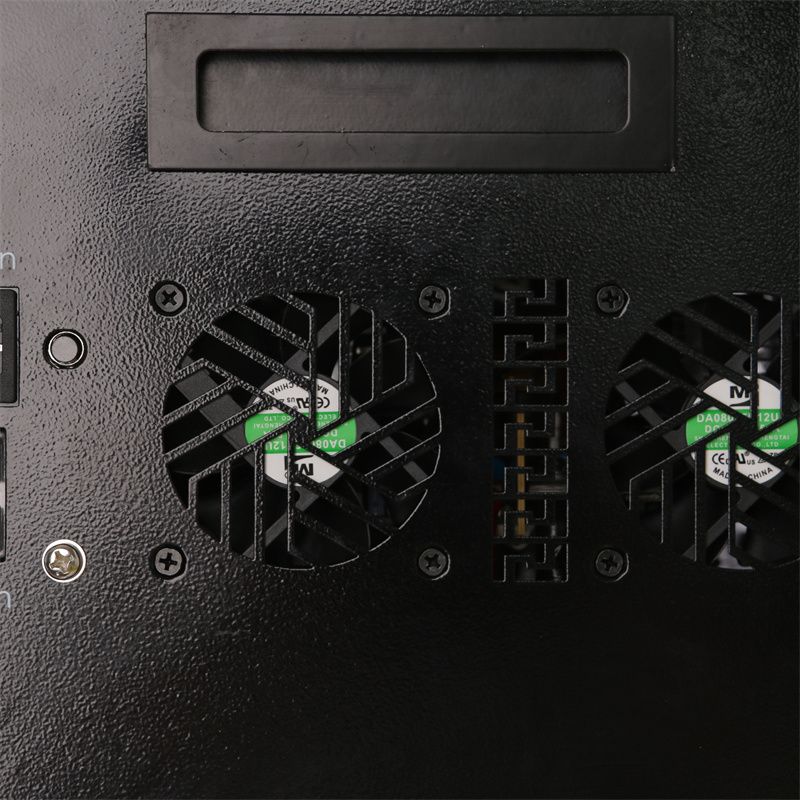

| ① | Air In | ⑩ | Fans(Air Out) |

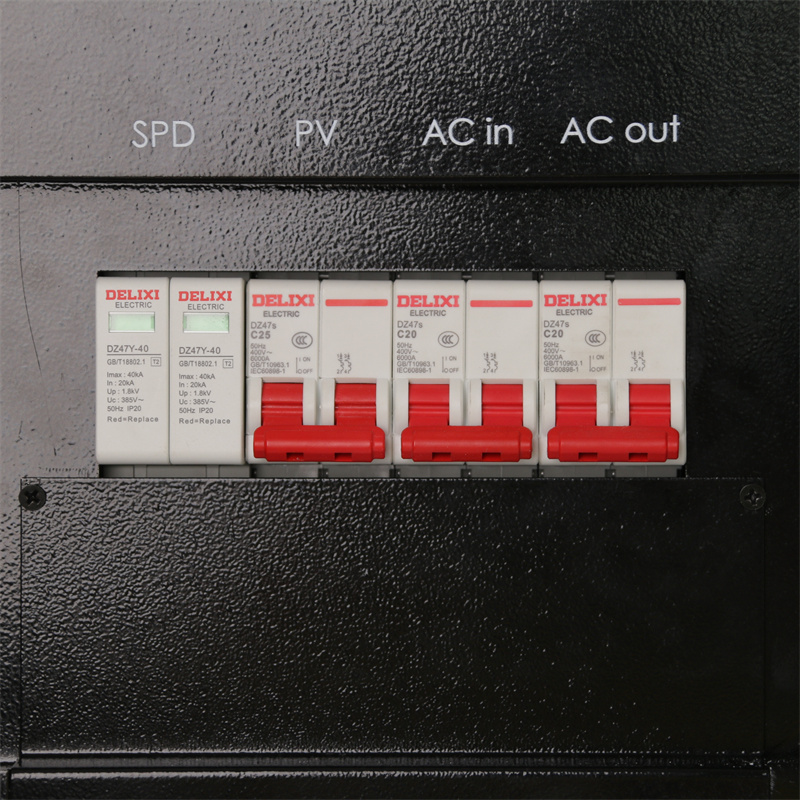

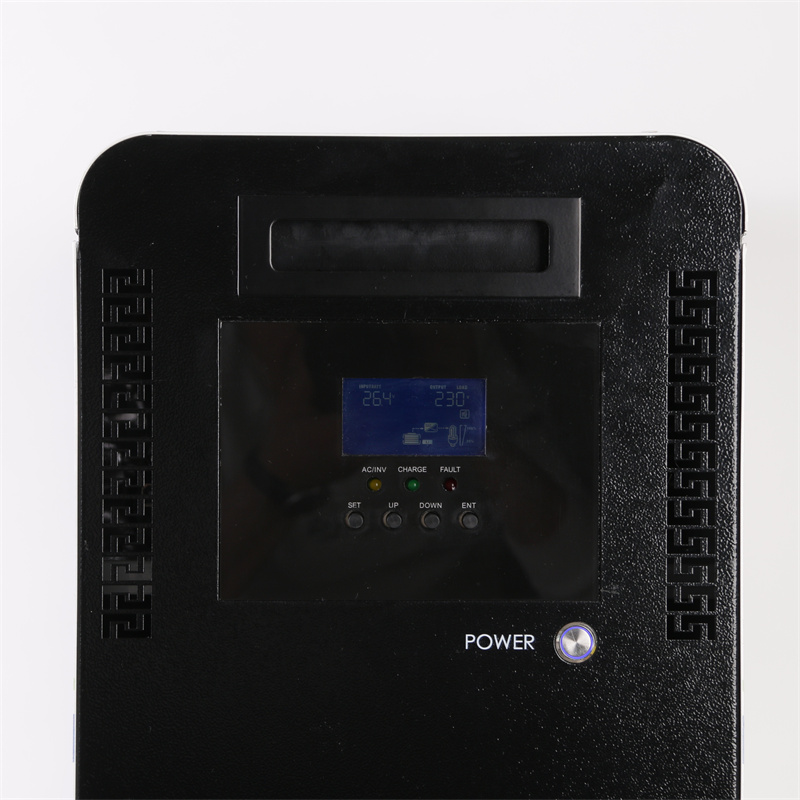

| ② | LCD Screen | ⑪ | Anti-Surge Protection |
| ③ | Indicator Light | ⑫ | PV Charge Switch |
| ④ | Press Button | ⑬ | AC Input |
| ⑤ | Main Switch | ⑭ | AC Output |
| ⑥ | AC Connector | ⑮ | Guard Plate |
| ⑦ | Lockable Wheels | ⑯ | Ground Wire |
| ⑧ | PV Input Connector | ⑰ | Cable-In Channel |
| ⑨ | Reboot Button |
Parameters
| Model | Mate5000W/10KWh | |
| Battery Type | LiFePO4 | |
| Rated Voltage | DC48V | |
| Nominal Capacity | 10KWh | |
| AC Input | ||
| Input Voltage | （170Vac-265Vac）+/-2% /（90Vac-265Vac）+/-2% | |
| Frequency | 47-55HZ（+/-0.3HZ） | |
| Overload Protection | Circuit Breaker | |
| Efficiency | 95% | |
| Switching Delay | 10mS(between grid power bypass and Invertor) | |
| Max. Overload Current of Bypass | 40A | |
| Invertor Output | ||
| Wave Form | Pure Sine Wave | |
| Rated Power | 5000W | |
| Power Factor | 1 | |
| Rated Voltage | 230Vac +/-5% | |
| Frequency | 50HZ +/-1HZ | |
| Efficiency | 92% | |
| Battery Working Voltage | 40Vdc-60Vdc | |
| PV Charge | ||
| Voltage Range | 60Vdc-145Vdc（MPPT60Vdc-120Vdc） | |
| Max.Power | 4200W | |
| Max.Current | 80A | |
| AC Charge | ||
| Max.Current | 60A（+/-5A） | |
| Short Circuit Protection | Fuse | |
| General Info | ||
| Working Temperature | -15-55℃ | |
| Noise | <60dB | |
| L*W*D/Weight | 680*390*580mm/120Kg | |
| Cooling System | Forced Air | |
I. Core Advantages
Our Mate5000W/10KWh integrated energy storage system features four key strengths:
1. High power, strong load capacity
Rated output of 5kW, peak up to 10kW, pure sine wave, capable of stably powering air conditioners, induction cookers, water pumps, and entire equipment.
2. Long lifespan, high safety
Uses A-grade lithium iron phosphate battery cells, with 6000 cycles and high capacity retention rate; built-in comprehensive BMS protection, full protection against overcharge, overdischarge, overtemperature, and short circuit.
3. Integrated and plug-and-play
Inverter + battery + management system in one unit, no need for additional components, simple installation, low failure rate.
4. Stable and reliable, worry-free after-sales
Industrial-grade design, good consistency, suitable for batch production and long-term cooperation, few channel complaints, high repeat purchase rate.
II. Application Scenarios
This model is highly versatile. Your downstream can directly sell it and provide compatibility:
1. Household energy storage / backup power supply
Powering during power outages, photovoltaic energy storage, peak shaving and valley filling.
2. RVs, camping, outdoor power supply
Satisfying long-term large-power electricity consumption during travel.
3. Ship use, small vessels' backup power
Stable, safe, with a lifespan far exceeding lead-acid.
4. Small factories, shops, base station emergency power supply
Key equipment continuous power supply, high reliability.
III. Solution Capability
1. Support OEM/ODM branding
Can be branded with your own logo, customized appearance, interfaces, and parameters.
2. Provide complete solution packages
PV configuration, wiring diagrams, installation guidance, and operation manuals are all provided.
3. Technical support throughout the process
Pre-sale selection, mid-sale coordination, and post-sale fault handling, we guarantee throughout.
4. Stable batch supply
Standardized production, controllable delivery time, suitable for traders to purchase in large quantities and factories for long-term supply.
IV. Company Strengths
1. Professional energy storage manufacturer, specializing in lithium battery energy storage systems
Product line is mature, quality is stable.
2. Strict quality control, full inspection from battery cells to finished products
Low defect rate, low channel risk.
3. Complete qualifications, exportable, and compatible
Comprehensive certifications such as CE, RoHS, UN38.3 are complete.
