10 ft 150kW/387.06 kwh Container

10 ft 150kW/387.06 kwh Container Datasheet

Equipment	Specification	Quantity	Remarks
PWS1-150K-STS	Energy storage converter Rated power: 150kW with built-in isolation transformer DC input: 250V ~ 520VDC AC input: 400V Dimensions (width, depth and height): 800mm*800mm*2160mm Selective STS module can realize passive grid connection and off-grid, and the switching time is less than 15ms.	1 unit	The maximum load capacity is 165kW and the short-term peak current is 238A
Lithium iron phosphate battery system	Voltage range 360 ~ 518.4 V	1 set	387.06 kwh
EMS system	The system is mainly used for data acquisition and monitoring software, and microgrid energy storage strategy control.	1 set	Kwh
10-foot container system	Specification (width, depth and height): 2991mm*2438 mm*2591mm The system includes: temperature control system (air conditioning), fire control system, system power distribution, temperature and smoke sensors, etc.	1 set	Battery configuration scheme: ① Equipped with three single-cluster battery racks with a total power of 387.06 kwh; ② The single cluster battery rack consists of six 24-cell 280AH modules, and the power of the single cluster battery rack is 129.02 kwh.

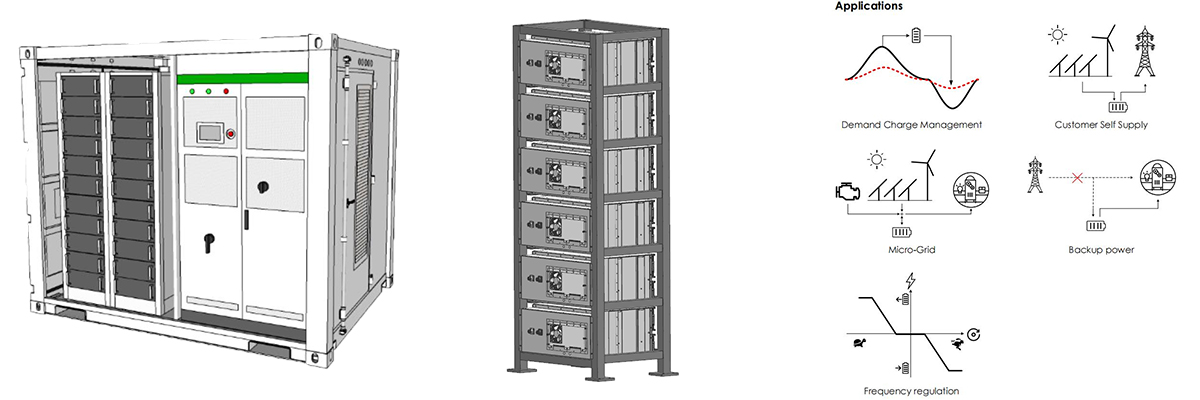

Cluster battery rack (129.02 kwh) in 10-foot container system (150kw/387.06 kwh) (this application requires three single cluster battery racks)

Core advantage

As a leading battery manufacturer, we eliminate the middle links and provide full-chain support from product development, production manufacturing, quality control to after-sales implementation for traders and factories, ensuring that you have no worries in your cooperation:

1. The core battery cells of the container are independently developed and sold by our company. From the selection of anode and cathode materials to the encapsulation of the cells, the entire process is subject to quality control. The energy density is high, the cycle life is long (cycle times ≥ 6000 times), ensuring the stability and durability of the energy storage system from the root, and significantly reducing the later maintenance costs;

2. Full-line production, with sufficient capacity for customization: We have a large modern production base, covering the entire production chain of battery cells, PACK, and energy storage systems. The monthly production capacity of 20FT standard containers is stable, capable of meeting the large-scale order requirements of traders; at the same time, it supports mild customization based on the basic model (such as adapting to different regional grid standards, adding monitoring modules, etc.), and is compatible with different market channels worldwide;

3. Integrated integration, lower implementation costs: The product is a plug-and-play fully integrated design. All components such as battery cells, BMS, PCS, cooling system, and fire protection system are pre-installed and debugged. After arriving at the site, only simple wiring is required for immediate use. No additional installation and debugging costs are required by the factory, making it easier for traders to present solutions to customers in channel sales;

4. Multiple safety protections, meeting industry standards: Equipped with our self-developed BMS intelligent management system, which monitors battery voltage, current, and temperature in real time and issues precise warnings; it is equipped with a fire extinguishing system and explosion-proof cooling design, meeting safety standards for energy storage products such as GB/T and IEC in both domestic and international markets. The factory can use it with greater peace of mind, and traders in distribution have no concerns about after-sales safety.

For Traders: Exclusive Channel Empowerment, Easily Expand Energy Storage Business

1. Originating Factory Price, Profits Abundant: Without any middle agent's markup, the exclusive supply price directly given to the trading channel is provided directly to the traders, leaving sufficient distribution profits. At the same time, we support tiered ordering discounts. The larger the order volume, the lower the unit price.

2. Standardized Products, Compatible with Global Channels: The 20FT standard container complies with international logistics and power grid standards. It can directly connect with overseas energy storage channels and domestic industrial and commercial distribution channels. We provide a complete set of product certification materials (such as CE, FCC, CNAS, etc.) to help you quickly enter the market.

3. One-stop Material Support: Free provision of product brochures, parameter posters, solution PPTs and other marketing materials. At the same time, a professional technical team will be arranged to provide product training for your sales team, explaining product selling points, installation processes and common problem solutions.

4. Flexible Logistics and Inventory Policies: Support for multiple warehouses in the country for nearby delivery. We can also cooperate with traders for port booking, maritime customs declaration and other supporting services. For core partners, we can provide certain inventory credit support to alleviate capital pressure.

For Factories: Tailor-made Electricity Solution, Cost Reduction and Efficiency Enhancement in One Step

1. Precise Calculation, Customized Energy Storage Solution: Based on the actual situation of the factory's electricity load, peak-valley electricity prices, production shifts, etc., our professional engineer team will conduct free on-site surveys and provide you with an exclusive energy storage solution. Precisely calculate the peak-valley arbitrage benefits, peak shaving and valley filling electricity cost, allowing you to clearly understand the investment return period.

2. Factory Direct Supply, Higher Cost Performance: Skipping all intermediate links, we directly provide factory equipment + factory installation + factory after-sales integrated services to the factory. Compared with the quotations of market middlemen, the cost is lower, and the equipment quality and after-sales are more guaranteed.

3. Emergency Backup Power Supply, Ensuring Production Freedom: The energy storage container supports emergency backup power supply mode. When the factory encounters power grid outages or restrictions, it can quickly switch to the power supply mode to ensure the normal operation of core production equipment, avoiding production losses caused by power outages.

4. Photovoltaic + Energy Storage Integrated Coupling: If the factory has a photovoltaic power station, we can seamlessly connect the energy storage container with the photovoltaic system to achieve self-generation and self-storage of electricity, maximizing the utilization of photovoltaic energy, and further reducing electricity costs.

Strength

Our company is a professional enterprise specializing in battery research and production. We have been deeply involved in the battery field for many years, possessing a number of national patent technologies, modern production bases, and a professional R&D and sales team. We have the full production capacity for the entire battery chain, including cells, packaging, and energy storage systems, as well as experience in implementing one-stop energy storage solutions.

We have always adhered to the concept of "quality first, mutual cooperation and win-win". We have provided stable energy storage product supply chains for many traders and solved electricity demands such as industrial and commercial energy storage and emergency backup power for hundreds of factories. Our products are sold worldwide and have received unanimous recognition from our partners.
