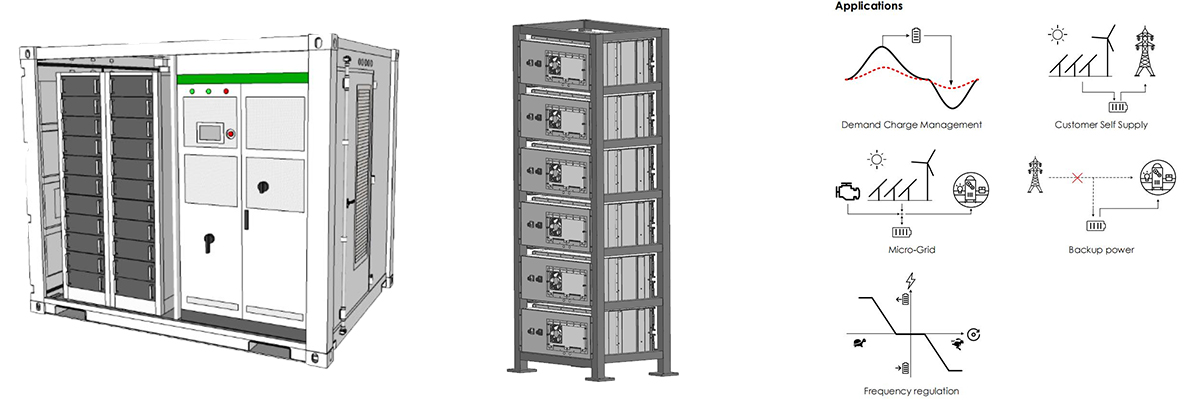

10 ft 150kW/258.04 kwh Container

10 ft 150kW/258.04 kwh Container Datasheet

Equipment	Specification	Quantity	Remarks
PWS1-150K-STS	Energy storage converter Rated power: 150kW with built-in isolation transformer DC input: 250V ~ 520VDC AC input: 400V Dimensions (width, depth and height): 800mm*800mm*2160mm Selective STS module can realize passive grid connection and off-grid, and the switching time is less than 15ms.	1 unit	The maximum load capacity is 165kW and the short-term peak current is 238A
Lithium iron phosphate battery system	Voltage range 360 ~ 518.4 V	1 set	258.04 kwh
EMS system	The system is mainly used for data acquisition and monitoring software, and microgrid energy storage strategy control.	1 set	Kwh
10-foot container system	Specification (width, depth and height): 2991mm*2438 mm*2591mm The system includes: temperature control system (air conditioning), fire control system, system power distribution, temperature and smoke sensors, etc.	1 set	Battery configuration scheme: ① Equipped with two single-cluster battery racks with a total power of 258.04 kwh; ② The single cluster battery rack consists of six 24-cell 280AH modules, and the power of the single cluster battery rack is 129.02 kwh.
Application scenario of single cluster battery rack (129.02 kwh) in 10-foot container system (150kW/258.04 kwh); (2 single-cluster battery racks are required for this application )

Core product advantages

(1) For factories: Reduce costs and increase efficiency, ensuring smooth production without any disruptions

Peak-load electricity usage can significantly reduce electricity bills: By relying on a 258.04 kWh large-capacity energy storage system, it can be charged during the low-demand periods of the power grid (with low electricity costs) and discharged during the peak-demand periods (to replace the expensive electricity from the power grid). This is particularly suitable for high-energy-consuming factories. Monthly electricity costs can be saved by 15% to 30%, and the long-term use has outstanding cost-effectiveness.

2. Emergency power supply, avoiding power outage losses: In the event of a sudden power failure or outage in the grid, the system can quickly switch to the backup power source to ensure the normal operation of the factory's core equipment (such as production lines, precision instruments), preventing production halts and product losses caused by power outages, thereby reducing unnecessary economic losses for the factory.

3. Convenient and cost-effective, reducing operation and maintenance costs: The integrated design enables immediate use upon opening the box, eliminating the need for professional teams for installation and debugging; equipped with an intelligent BMS management system, it can monitor the battery status in real time and issue warnings for faults, reducing the workload of manual operation and maintenance; the lithium iron phosphate battery has a long lifespan and a low replacement frequency in the later stage, further reducing operation and maintenance costs.

4. Flexible adaptation, meeting diverse needs: It can be used independently or connected in parallel for expansion, and is suitable for the power demands of various-sized factories (such as small and medium-sized processing plants, auxiliary power supply for workshops, emergency power supply for warehouses, etc.). No need to modify the existing power lines, and it is highly practical.

(2) For traders: High quality and affordability + Comprehensive support, easily seize the market

Direct supply from the manufacturer, with ample profit margin: Originating from the factory, without any markup by middlemen, we offer trade merchants the original supply price, significantly increasing the profit margin for product distribution; at the same time, we support bulk purchase discounts. The larger the purchase volume, the stronger the discount, further enhancing the profit margin.

2. The product has strong competitiveness and is suitable for multi-scenario distribution: It is standardized in a 10ft size, facilitating transportation and storage, thereby reducing the logistics and storage costs for traders. The power and capacity ratio is in line with mainstream demands, enabling distribution to various scenarios such as factories, industrial parks, commercial complexes, outdoor projects, and remote area power supply. The market demand is strong, and there is no concern about sales.

3. Quality Assurance and Uninterrupted After-sales Service: The battery cells and components are made of high-quality materials from the industry. Before leaving the factory, they undergo strict tests (such as charge-discharge tests, temperature range tests, safety tests, etc.), and the product qualification rate is ≥ 99.8%. The manufacturer provides comprehensive after-sales support, with a 3-year warranty (5-year warranty for core components), and has after-sales service outlets in multiple locations across the country. They respond promptly to repair requests, reducing the after-sales pressure on trading partners and enhancing customer reputation.

4. Customized Support, Facilitating Customer Expansion: Based on the specific needs of traders, customized configurations can be provided (such as adjusting capacity, optimizing protection level, adding monitoring functions, etc.); at the same time, a complete set of product promotional materials (posters, parameter manuals, demonstration videos) is offered to help traders quickly expand their customer base and promote their products.

Adaptation scenarios (expand the usage boundaries and enhance the reusability value of the product)

This 10ft 150kW/258.04kWh container energy storage system has a wide range of applicable scenarios. It can not only meet the self-use needs of factories, but also provide traders with a variety of distribution options. The specific applicable scenarios are as follows:

1. Factory scenario: Auxiliary power supply for small and medium-sized factories and manufacturing workshops, emergency power supply for precision equipment, constant temperature power supply for warehouses, backup power supply for factory areas (to avoid power outages in the grid).

2. Industrial Park: Distributed energy storage support within the park, charging station energy storage replenishment, and emergency power supply guarantee for the park;

3. Commercial and outdoor scenarios: Peak-load electricity usage in commercial complexes, temporary power supply for outdoor projects, power supply to remote areas (where there is no grid coverage), and temporary energy storage power sources for events/activities;

4. Other scenarios: Photovoltaic/wind power storage for supporting power supply (to absorb surplus electricity and increase the utilization rate of new energy), backup power supply for hospitals/schools (for small-scale facilities).

Manufacturer cooperation advantages (Strong support, shared future)

As a professional battery storage manufacturer, we have a complete system covering research and development, production, testing and after-sales services. We not only offer high-quality products, but also provide comprehensive support to factories and traders, helping both parties achieve long-term cooperation and common development:

1. R&D capabilities: We have a professional R&D team that focuses on the iterative development of energy storage technology. We can upgrade our products according to industry demands to ensure the competitiveness of our products.

2. Capacity Assurance: The modern production base has ample annual production capacity, which can meet the large-scale purchasing needs of factories and the extensive distribution requirements of traders. Orders can be processed and shipped promptly, ensuring no delay in usage or sales.

3. Quality Control: Strictly implement the ISO9001 quality management system. From the production of battery cells to the final shipment of finished products, multiple inspection processes are carried out to ensure that no substandard products enter the market.

4. Exclusive Services: Provide one-on-one technical guidance and installation/adjustment services for factories; Offer regional protection and customer connection support to traders to prevent malicious competition and safeguard the rights and interests of traders.

5. Long-term Win-Win: Adhering to the principle of "honest cooperation and mutual benefit", we will provide preferential policies and technical upgrading support to our partners over the long term, helping factories reduce costs and increase efficiency, and assisting traders in expanding their market share.
