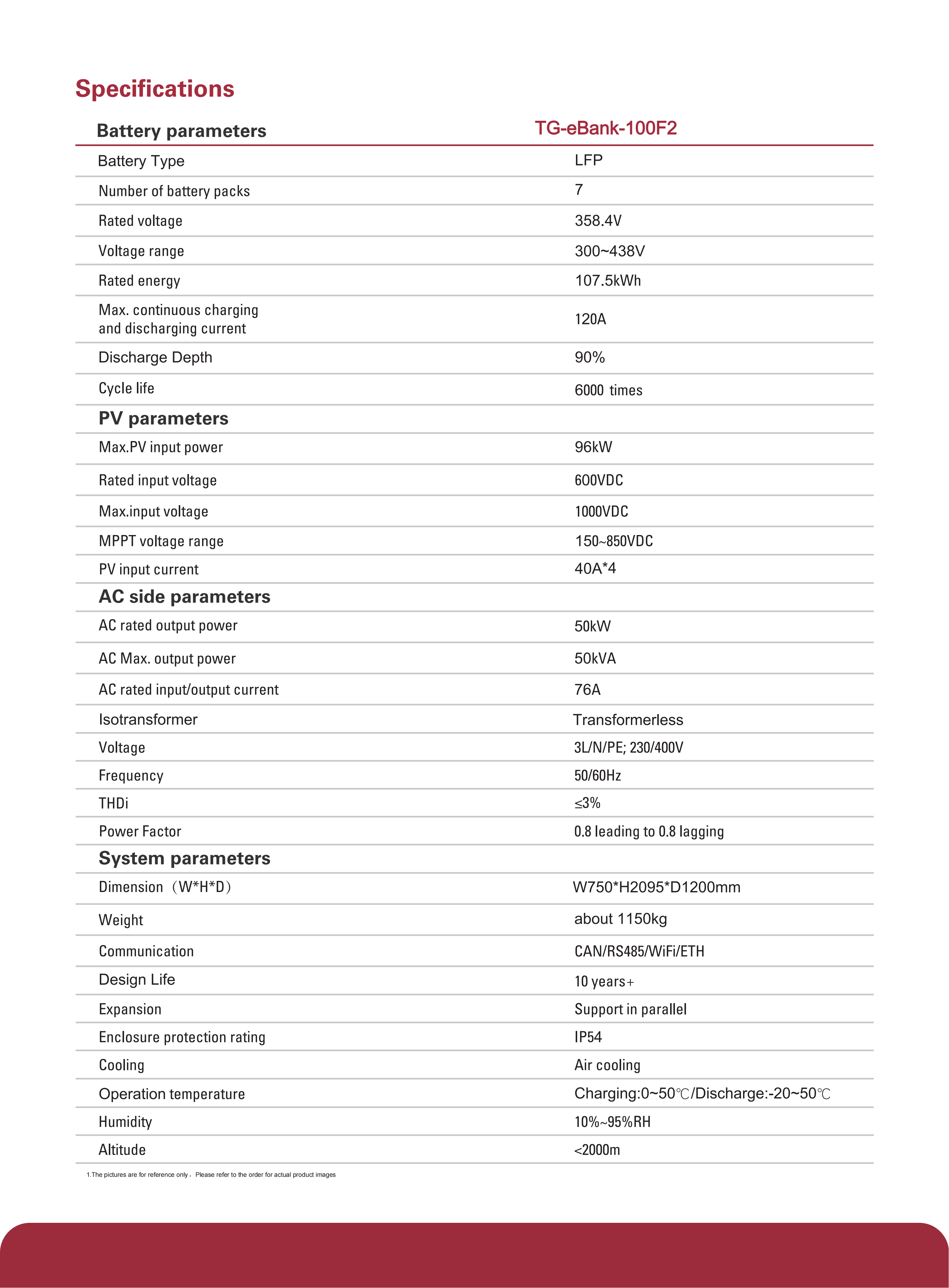

TG-eBank-100F2

Features

• Easy to install and deploy with large space utilization

 •Unique modular design & flexible function configuration

•Strong scalability, simple & convenient expansion on both AC and DC sides

•With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Advantages

1. Strong battery compatibility, with good manufacturer support and mass production capabilities.

Standard 100 kWh capacity, mainstream 280Ah/300Ah lithium iron phosphate cells in 1P20S configuration. No need for mold modification or re-development, directly compatible.

Wide voltage compatibility: Supports battery systems ranging from 140V to 800V, covering almost all mainstream battery manufacturers' voltage platforms.

BMS deep compatibility: Can customize balancing strategies, protection thresholds, and temperature control logic based on manufacturer cell characteristics, enhancing cycle life and reducing after-sales risks.

2. Extremely safe, traders dare to promote, owners dare to purchase.

Multiple protection architectures: BMS + high-voltage protection + aerosol / perfluorohexanone fire protection + independent liquid cooling / air cooling temperature control, full protection from cell level to system level.

High protection level: IP54, operating temperature range of -20°C to 55°C. Can run stably in outdoor / factory / harsh environments.

Zero accident record (same series): After years of batch implementation, no fires, no explosions, no major safety incidents. Traders can promote without concerns and have a good reputation.

3. Highly integrated, cost reduction, quick delivery, and easy maintenance.

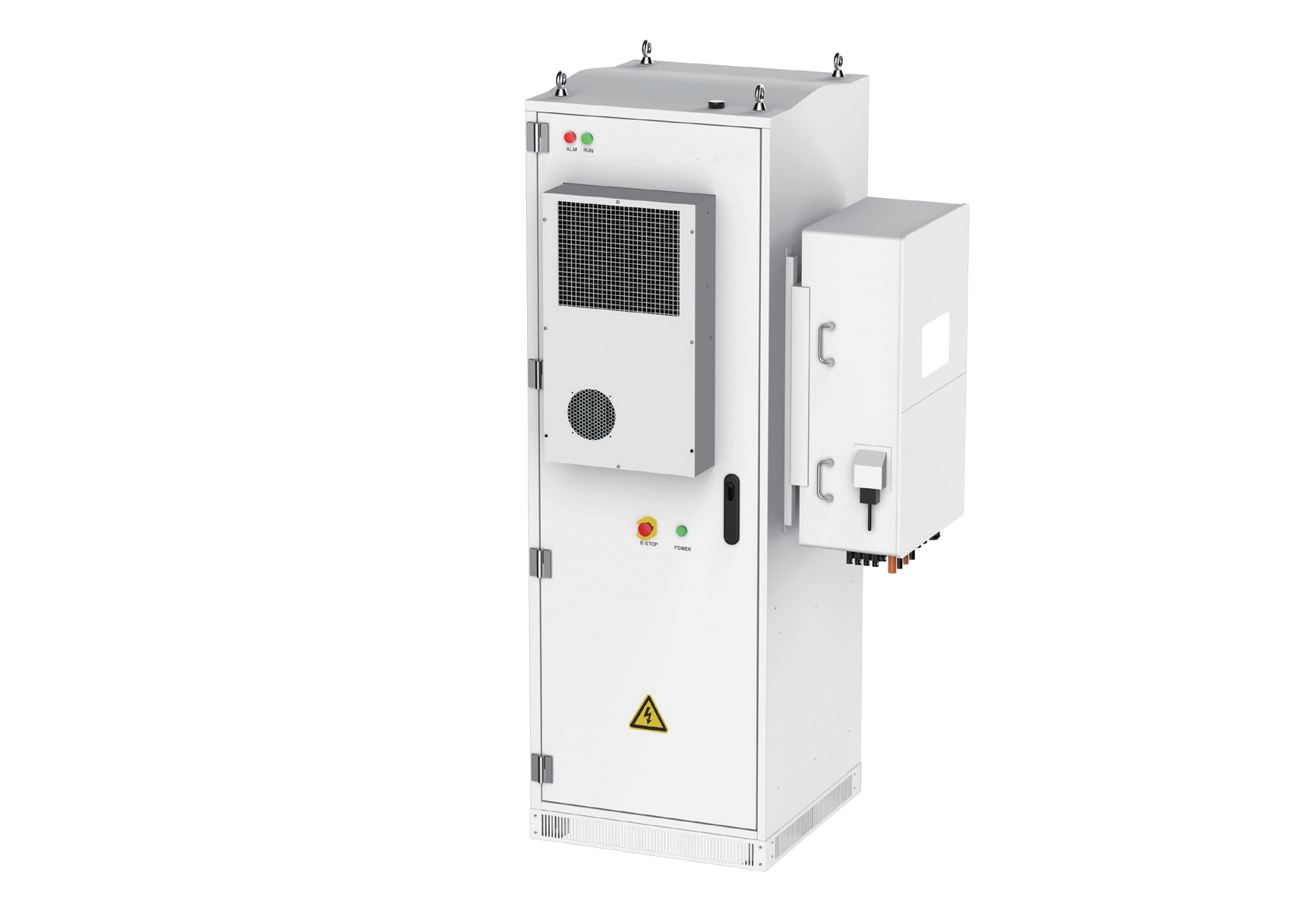

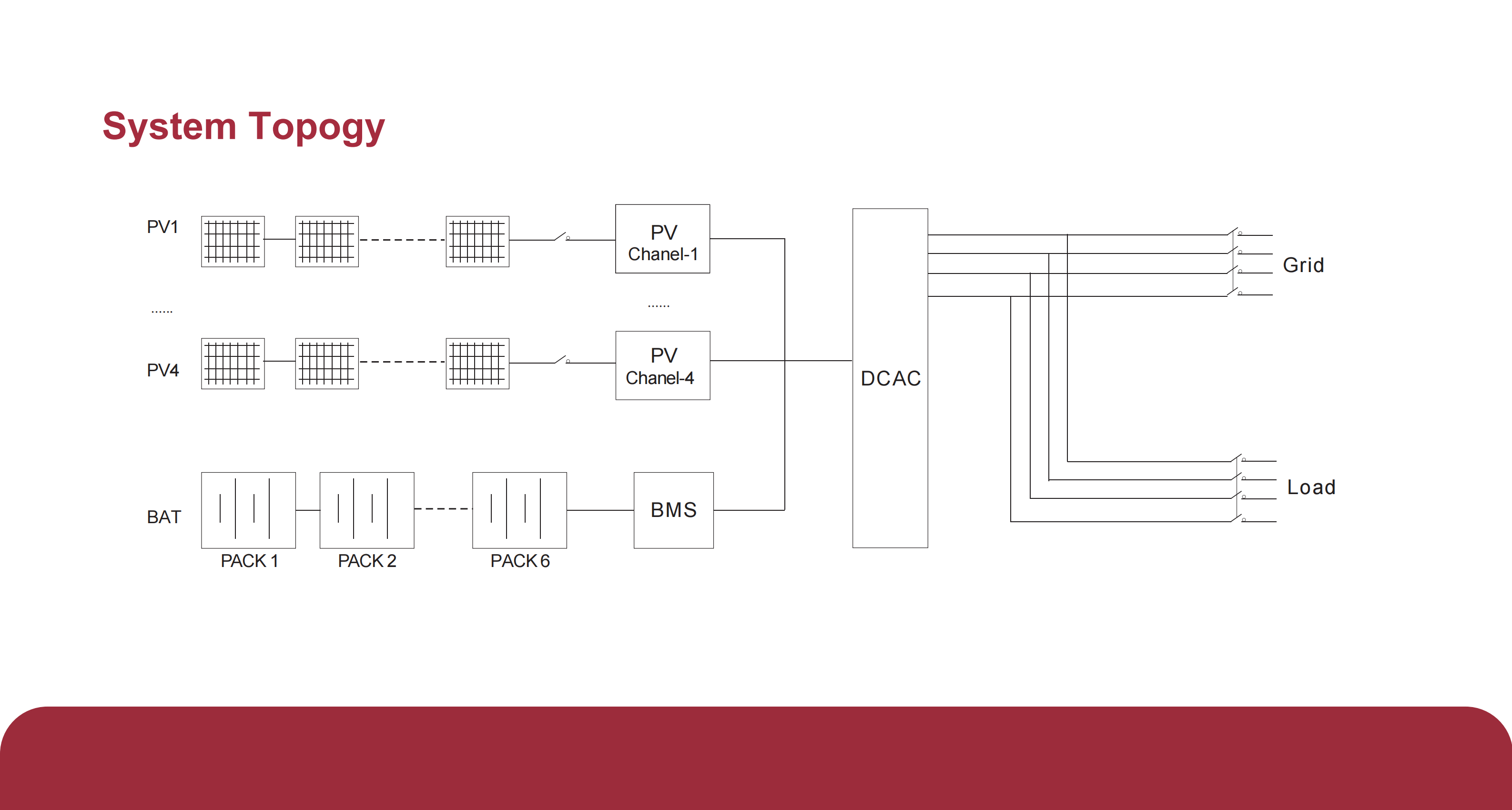

Single cabinet design for integrated equipment: Battery + PCS + BMS + EMS + temperature control + fire protection all integrated, small footprint, quick hoisting, installation completed in 1 day.

Plug-and-play: Standard interfaces, no complex debugging required. Traders can deliver with simple training, significantly reducing labor costs.

Intelligent EMS cloud platform: Remote monitoring, automatic fault alerts, remote upgrades, reducing 60%+ of maintenance costs.

4. Stable performance, long lifespan, with less quality assurance pressure from manufacturers.

Bidirectional PCS efficiency ≥ 95%, supports 0.5C - 1C continuous charging and discharging, suitable for industrial and commercial peak-valley arbitrage, backup power supply, etc. High cycle life ≥ 6000 times (DOD 80%), fully matching the lifespan of mainstream lithium iron phosphate cells, reducing quality assurance compensation risks from manufacturers.

II. Application Scenarios

1. Industrial and Commercial

Factories / parks: Peak-valley arbitrage (annual IRR 12% - 18%), backup power supply, photovoltaic integration for power consumption.

Supermarkets / office buildings: Peak shaving, reducing demand charges, emergency power supply.

Data centers: UPS-level backup (switching time < 20ms), ensuring zero interruption.

2. Photovoltaic / Photovoltaic Storage Projects

Industrial commercial photovoltaic integration: Increase self-consumption rate to 80%+, solve power loss.

Photovoltaic storage charging station + energy storage + photovoltaic, leveling grid impact, improving charging revenue, with stable battery batch delivery.

3. Grid / Microgrid

Substation management: Capacity expansion, voltage regulation, overload management, with multiple subsidies and stable collection.

Off-grid microgrid: Mines, islands, remote areas, replacing diesel generators, with long-term stable supply of batteries.

4. Trader Advantage Scenarios

Export： 100 kWh is the mainstream capacity for industrial and commercial energy storage in Europe and Southeast Asia， with good transportation， tariff-friendly， and high profit.

Flexible combination： 100 kWh per single cabinet， multiple cabinets connected in parallel to 1MW/2MWh， suitable for all project sizes.

III. Solution Capability

1. For battery manufacturers： Cell / module standardized supply solutions

Cell adaptation services： Provide BMS parameter customization， cell balancing debugging， system integration testing， manufacturers do not need to conduct additional research and development， directly mass production.

Module integration solutions： Support 1P20S standard module， provide structural， wiring， and thermal management integrated design， reducing manufacturers' integration costs.

Joint quality assurance： System 5-year warranty， battery 5-year / 6000 cycles， joint insurance， risk sharing. Full-process delivery: scheme design → supply → installation and commissioning → grid connection → operation and maintenance management. The trader has no need for heavy assets or a professional team.

Remote operation platform: View battery status, charging and discharging data, and alarm information anytime via mobile phone or computer. Quickly locate faults and handle after-sales more easily.

Financial support: installment payment， EPC advance funding， reducing customer threshold and enabling the trader to better take orders.

3. Customization capabilities

Capacity： Adjustable from 80 to 100 kWh

Voltage： Options of 380V/480V/600V

Interfaces： Compatible with mainstream inverters and photovoltaic protocols， seamlessly connecting with existing equipment

IV. Company strength

1. Technology and R&D strength

Core team with 10 years of experience in the energy storage industry， focusing on industrial and commercial energy storage systems， with core technologies of BMS/EMS/PCS being independently controllable.

Own patents and software copyrights， continuously iterating without relying on third parties.

2. Production and quality strength

Self-owned energy storage system integration factory， with annual production capacity of tens of thousands of units， ISO9001/14001/45001 certifications.

Each unit undergoes 48-hour full-load aging +， passing CE/IEC/UN38.3 and other certifications， ensuring export compliance and stable quality.

3. Market and service strength

Hundreds of domestic and hundreds of overseas projects have been implemented for the same series of products， covering factories， photovoltaics， microgrids， etc.， with high repeat purchase rate and good reputation.

Domestic multiple service centers and overseas offices in multiple countries， 365-day technical support and rapid response.

4. Flexible cooperation model

Battery manufacturers： ODM/OEM， batch supply of cells/modules， joint research and development， helping you digest production capacity and increase added value.

Traders： Regional agency， discounted supply， market protection， project dividends， with large profit margins and low competitive pressure.
