10 ft 50kW/129.02 kwh Container

10 ft 50kW/129.02 kwh Container Datasheet

Equipment	Specification	Quantity	Remarks
PWS1-50K-STS	Energy storage converter Rated power: 50kW with built-in isolation transformer DC input: 250V ~ 520VDC AC input: 400V Specification (width, depth and height): 800mm*800mm*2160mm Selective STS module can realize passive grid connection and off-grid, and the switching time is less than 15ms.	1 unit	The maximum load capacity is 55kW and the short-term peak current is 79A
Lithium iron phosphate battery system	Voltage range 360 ~ 518.4 V	1 set	129.02 kwh
EMS system	The system is mainly used for data acquisition and monitoring software, and microgrid energy storage strategy control.	1 set	Kwh
10-foot container system	Specification (width, depth and height): 2991mm*2438 mm*2591mm The system includes: temperature control system (air conditioning), fire control system, system power distribution, temperature and smoke sensors, etc.	1 set	Battery configuration scheme: ① Equipped with a single cluster battery rack with a total power of 129.02 kwh; ② The single cluster battery rack consists of six 24-cell 280AH modules, and the power of the single cluster battery rack is 129.02 kwh.

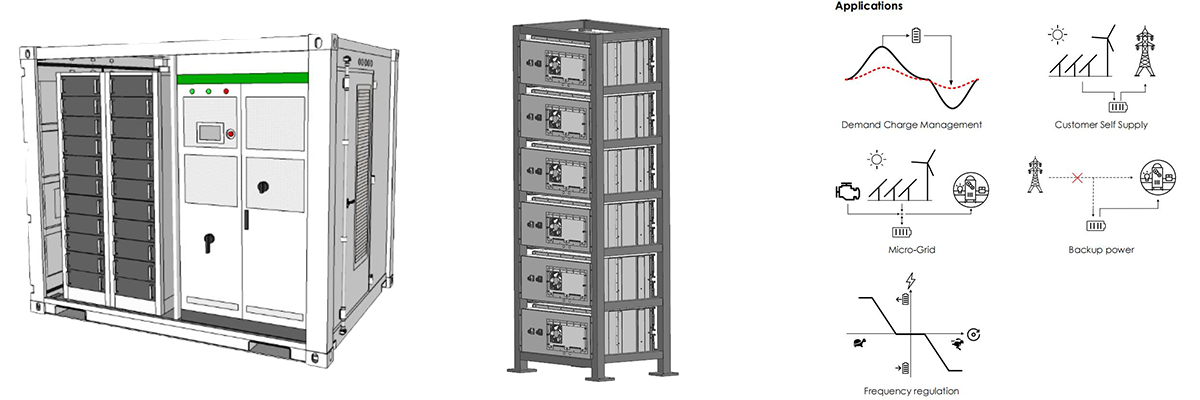

Application scenario of single cluster battery rack (129.02 kwh) in 10-foot container system (50kW/129.02 kwh) (this application requires a single cluster battery rack)

Core product advantages: Manufacturer's advanced technology ensures the core interests of the partners

1. Standardized integration, cost reduction and efficiency improvement, making it easy for traders to promote and for factories to implement

The factory completes the integrated integration of core components such as battery cells, PCS, BMS, distribution cabinets, fire protection systems, and temperature control systems, and conducts full-condition debugging. No secondary construction is required on-site; the 10FT standard size is compatible with container transportation and can be lifted and installed by ordinary forklifts / cranes. The logistics cost is low, the site requirements are low, and the factory's factory buildings and vacant areas can be quickly installed. When the trader connects the project, no additional integration costs need to be invested, significantly shortening the project delivery cycle.

2. High safety and reliability, with the manufacturer's full-process quality control, no worries about after-sales service

Multi-level protection: precise monitoring at the cell level BMS + protection at the battery cluster level + system-level protection against overload / overvoltage / overtemperature / short circuit from the source to avoid safety risks;

Built-in fire protection: equipped with a dedicated aerosol fire protection system + temperature and smoke monitoring devices, meeting the storage fire safety standards, without the need to add additional fire protection equipment;

Quality control guarantee: the manufacturer builds its own production lines for cell screening, module assembly, and system integration, with full-process ISO9001 quality control. Each device undergoes 72-hour full-load aging tests before leaving the factory, with a defect rate of less than 0.5%.

3. High adaptability, covering multiple core application scenarios, expanding the trading business boundaries

This equipment has a power / capacity ratio that meets the needs of small and medium-sized industrial and commercial scenarios. It can be used independently or connected in parallel for expansion (up to 10 units can be connected in parallel to meet a 500kW / 1290.2kWh large capacity requirement). The core application scenarios are:

Factory end: peak shaving and valley filling to reduce electricity costs, emergency backup power during power outages, storage of surplus electricity from photovoltaic factories for self-use;

Commercial scenarios: peak shaving and valley filling in commercial centers, office buildings, and parks, ensuring power supply for critical equipment;

Distributed photovoltaic: equipped with photovoltaic power stations to solve power loss problems and increase the self-use rate of photovoltaic power;

Temporary power supply: construction projects, outdoor operations, exhibition activities, etc., for temporary power needs.

4. Low operation and maintenance costs, factory end worry-free, low service costs for traders

Intelligent air-cooling system has no vulnerable parts, and only requires regular simple inspections in the future; BMS supports remote fault diagnosis and data warning, the manufacturer provides background data support, most problems can be solved remotely, without the need for on-site visits; Lithium iron phosphate battery cells have no memory effect and support shallow charging and discharging, no need for dedicated personnel to be on duty, significantly reducing the factory end operation and maintenance labor costs, and also reducing the after-sales investment for traders when connecting the project.

Manufacturer's core support: from supply to implementation, providing all-round support for the interests of traders / factories

As a direct supply manufacturer, we understand the channel distribution needs of traders and the project implementation needs of factories. Not only supplying goods, but also providing full-chain supporting services to make partners "purchase with confidence, promote with ease, and implement with peace of mind":

1. Supply chain guarantee: direct supply, stable inventory, controllable delivery cycle

Self-built ten-thousand-ton production base, full-chain layout of battery cells, modules, and systems, without intermediate links, providing channel-exclusive factory prices to guarantee the profit margin of the channel;

Regular orders are available / short delivery period of 7-15 days, large-scale orders can sign long-term supply agreements to lock prices and delivery cycles, avoid risks of raw material price fluctuations, and ensure stable supply for the channel and the factory end projects to be implemented on schedule.

2. Customized solutions: adjust as needed, adapt to personalized project requirements

Support for software and hardware customization: based on the factory's power consumption load and the scenarios of the project connected by the trader, adjust control strategies and communication protocols, and be compatible with the customer's designated energy management platform; Provide project-related design: For personalized demands such as factory-end photovoltaic + energy storage, pure battery backup, peak shaving and valley filling, professional engineers from the manufacturer will offer free on-site surveys, scheme designs, and capacity ratio optimization services.

Support channel branding: Provide neutral packaging / branding services for traders to help partners build their own brands and enhance channel competitiveness.

3. Full life cycle service: Manufacturer direct guarantee, comprehensive after-sales network coverage

Quality guarantee: Whole machine guarantee for 5 years, battery cell guarantee for 8 years, lifelong technical support, far exceeding industry conventional quality guarantee standards;

After-sales network: Set up 20 + after-sales service centers in core provinces and cities across the country, 24-hour technical hotline, on-site faults resolved within 48 hours (72 hours for remote areas);

Training support: Provide professional training for trade partners' sales / technical teams, factory-end operation and maintenance personnel on product operation, fault troubleshooting, and daily maintenance, to enhance the professional service capabilities of partners.

4. Project empowerment: Manufacturer collaboration, helping traders connect with projects, and implement projects in factories

For traders: Provide a complete set of project promotion materials (product manual, technical parameters, scheme templates, case materials), and the manufacturer can dispatch technical engineers to collaborate with end projects, providing technical answers, scheme design support;

For factory-end: Provide one-stop implementation services, from on-site surveys, scheme designs, installation guidance, commissioning and operation to later maintenance, with full coverage by manufacturer engineers, without requiring factories to invest additional technical personnel.

Trade channel cooperation: Direct supply from manufacturers, setting up exclusive / non-exclusive regional agents, strictly controlling channel prices, ensuring regional channel profits, supporting one-stop distribution and large-scale stock preparation, providing a complete set of channel promotion support;

Factory end direct procurement: Supports single unit / multiple units procurement, manufacturers provide free scheme design and on-site implementation guidance, large-scale procurement can enjoy customized prices and exclusive after-sales services;

Factory strength: Deeply engaged in the energy storage field, worthy of long-term trust

Our company has been dedicated to the research and production of energy storage equipment for many years. We hold the qualification of a national-level high-tech enterprise and have obtained multiple domestic and international certifications for energy storage products such as CE/FCC/CNAS/3C. We have a core R&D team, and have served nearly 200 trading partners and over 150 factory customers. Our products are exported to multiple countries and regions in Southeast Asia, Europe, and Africa. Our supply chain, production capacity, and technical service capabilities have all been fully verified by the market.
