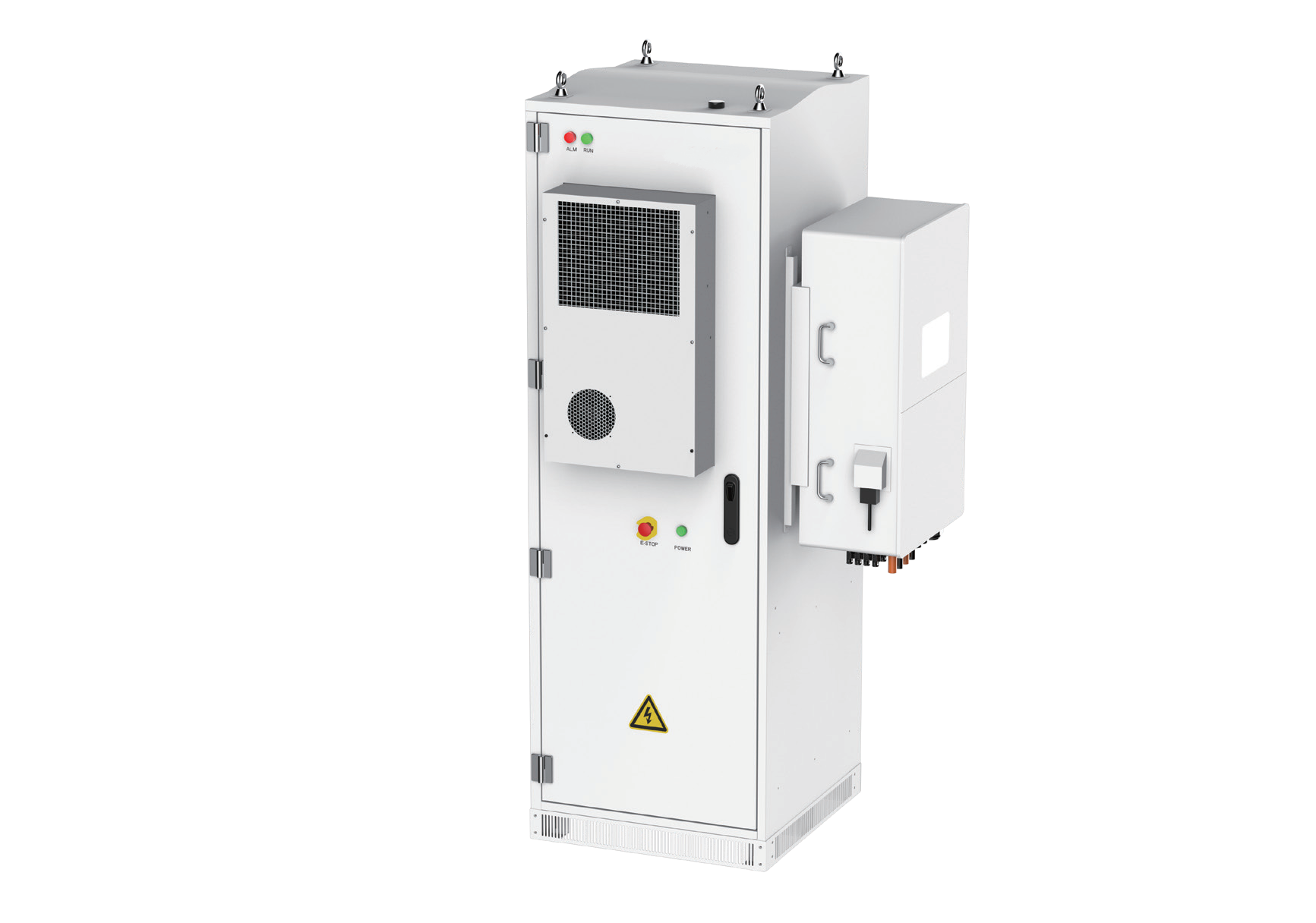

50kw107kwh-TG-eBank-50120F

Features

• Easy to install and deploy with large space utilization

•Unique modular design & flexible function configuration

•Strong scalability, simple & convenient expansion on both AC and DC sides

• With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Advantages

1. Cost-effective standard model

Standard 50kW/107kWh industrial and commercial energy storage integrated unit, with a capacity neither too large nor too small. It is currently the most mainstream and widely used specification for distributed photovoltaic storage, peak shaving and valley filling, and backup power supply. It is easy for traders to promote, customers to accept, and manufacturers to mass-produce.

2. High-voltage lithium iron phosphate system, safety + long lifespan

Built-in 1P120S high-voltage lithium iron phosphate battery pack, system voltage ≈ 768V, compatible with 50kW high-efficiency inverter; LFP cell cycle life ≥ 6000 times, deep discharge (DOD 95%) degradation is small, and the cost per kWh throughout the life cycle is low.

3. Integrated design, plug-and-play

Inside the cabinet: BMS + 50kW bidirectional inverter + MPPT + fire protection + temperature control + power distribution, the entire machine is factory-tested and completed; on-site 380V three-phase grid connection + photovoltaic connection can be used, 1 day for installation and grid connection, greatly reducing construction and operation costs.

4. High efficiency + high protection, adaptable to complex working conditions

System comprehensive efficiency ≥ 89%; IP55 protection, air-cooled temperature control, cabin temperature difference < 6K, -20℃ to 50℃ stable operation; dust-proof, moisture-proof, suitable for outdoor / factory / park and other harsh environments.

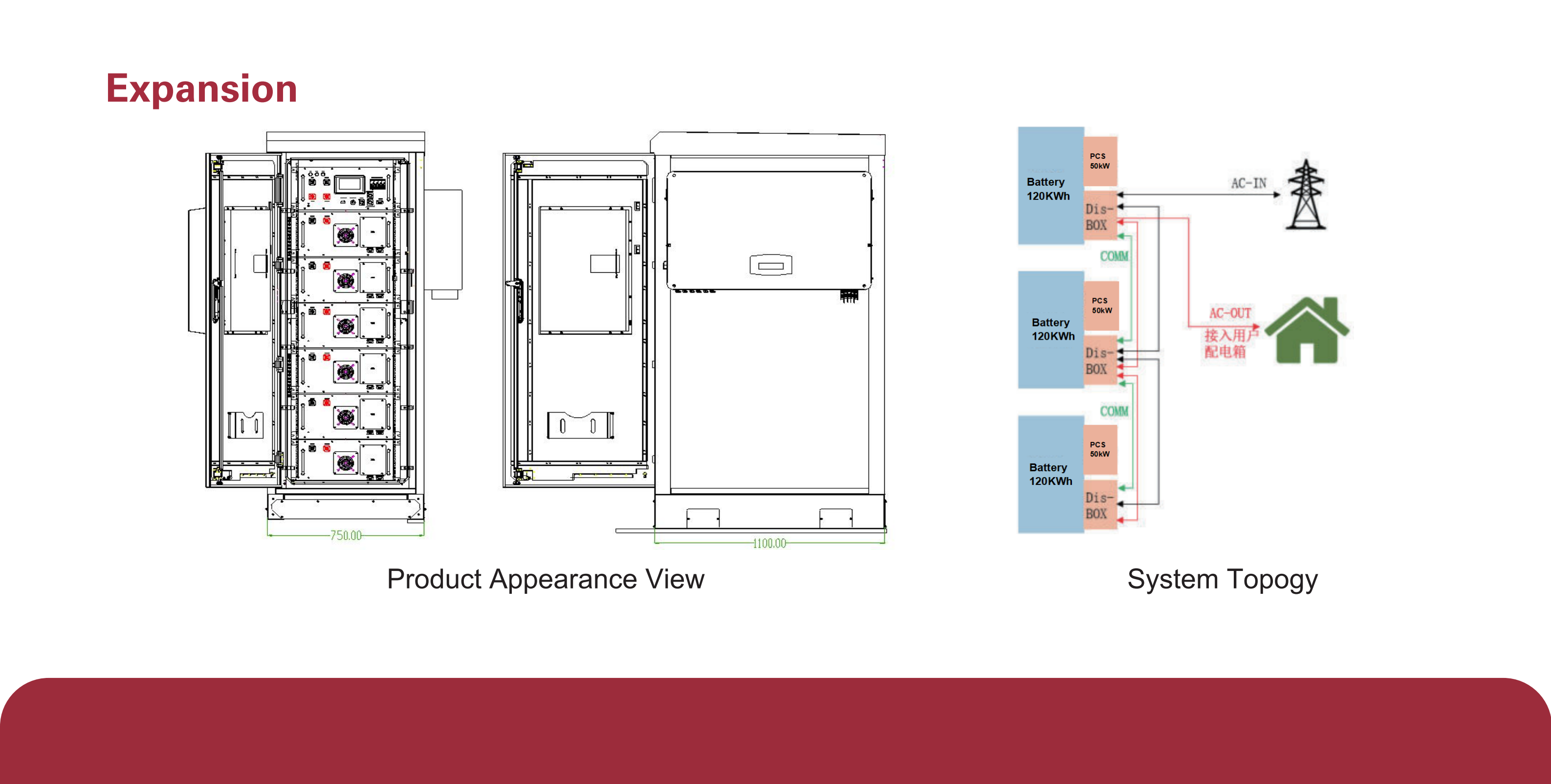

5. Modular design, flexible expansion

Single cabinet 50kW/107kWh; supports multi-machine parallel connection, AC side can be expanded to 500kW/1MWh+; battery pack is independent, maintenance is simple, replacement is convenient, and it reduces the pressure on traders' after-sales service.

II. Application Scenarios

1. Peak shaving and valley filling for industrial and commercial use

Factories, parks, shopping malls, hotels, office buildings: discharge during peak hours and charge during off-peak hours, achieving peak-valley arbitrage and recovering costs in 2.5 to 3.5 years; also requires demand management and dynamic capacity expansion to avoid high costs of transformer expansion.

2. Distributed photovoltaic + energy storage

Roof photovoltaic, agricultural / fishery photovoltaic, household / industrial photovoltaic: self-generation, self-consumption, grid connection; 50kW is just right for 40-50kW photovoltaic installation, which is the most optimal ratio.

3. Backup power / off-grid scenarios

Livestock farms, planting gardens, remote mining areas, islands, base stations: seamless switching to backup power in case of power outage, supporting black start; in off-grid mode, combined with photovoltaic / diesel engine for independent power supply.

4. Charging station / photovoltaic storage charging and energy integration

Small charging stations, park charging piles: energy storage for peak shaving and valley filling + fast charging replenishment, reducing grid expansion costs and improving charging pile utilization.

5. Virtual power plant / grid auxiliary services

Participate in demand response, frequency modulation, peak shaving; multiple units connected in parallel form aggregated resources, bringing value-added services and long-term revenue points to traders.

III. Solution Capability

1. Standardized + customized dual-mode delivery

Standard machine 50kW/107kWh is available for immediate supply and quick delivery; at the same time, it supports battery cell brands (Nide, Yiliwei, Lishen, Guoxuan, etc.), BMS strategies, cabinet color / interface customization, suitable for different customers and regional standards.

2. Full-process technical support, from the plan to grid connection

Provide: preliminary electricity price / load calculation → plan design → configuration list → construction drawings → grid connection materials → on-site commissioning → operation training; traders only need to connect with customers, and the technology is guaranteed by us.

3. Intelligent cloud platform, remote operation + asset control

Built-in 4G/5G + cloud monitoring: real-time viewing of SOC/SOH, temperature, alarms, power generation, revenue; supports remote upgrade, fault warning, unmanned operation, reducing after-sales costs, and improving customer stickiness.

4. Complete safety system, reducing trader

risks Multi-level protection: BMS overvoltage / overcurrent / overtemperature protection + fire extinguishing aerosol + insulation monitoring + lightning protection + IP55; Certified by IEC62619, UN38.3, CE, UKCA, etc., with no export worries.

5. Flexible cooperation model, supporting OEM/ODM/branding

For battery manufacturers: Can supply bare PACK + BMS, or complete cabinet OEM; For traders: Support branding, customized nameplates, exclusive solutions, regional protection to protect channel profits.

4. Company strength

1. Focus on industrial and commercial energy storage for many years, with mature technology

Core team 10 years + energy storage industry experience, focusing on 50-500kW industrial and commercial energy storage systems, has served hundreds of projects and dozens of traders / integrators, with stable production and low failure rate.

2. Stable supply chain, first-line brands for cells / key components

Deep cooperation with leading lithium iron phosphate battery factories, direct procurement of cells, quality controllable, stable prices; Inverters / PCS use domestic first-line brands to ensure consistency and reliability of the entire machine.

3. Adequate production capacity, fast delivery

Own energy storage system integration production line, monthly production capacity ≥ 200 units of 50kW models; Standard machines are delivered within 7 days, batch orders are delivered within 15 days, no shortage of goods during peak seasons, ensuring the delivery of trader orders.

4. Complete qualification certifications, covering both domestic and international markets

Products pass national standards + European standards + British standards certification (CE/UKCA/IEC62619/UN38.3, etc.), export to Europe, Southeast Asia, Middle East, Africa; Domestic compatibility with grid connection / filing / subsidy requirements.

5. Complete after-sales system, long-term cooperation without worries

Provide 5-year whole machine warranty + 10-year cell warranty; Domestic 24-hour technical support + on-site service; Overseas remote support + local agent service, solving trader's worries.
