TG-eBank-50-161F

Features

• Easy to install and deploy with large space utilization

• Unique modular design & flexible function configuration

• With self-use, peak shifting, forced charging & discharging and other working modes

• Strong scalability, simple & convenient expansion on both AC and DC sides

I. Core Advantages

1. Core Parameters and Performance Highlights

High efficiency and long lifespan: Equipped with lithium iron phosphate (LFP) battery cells, with a cycle life of ≥ 12,000 times, a deep discharge (DOD) of 95%, no degradation for 5 years, and a long-term usage cost 15%-20% lower than industry conventional products; charging and discharging efficiency ≥ 90%, lower per-unit power loss, directly enhancing customer benefits.

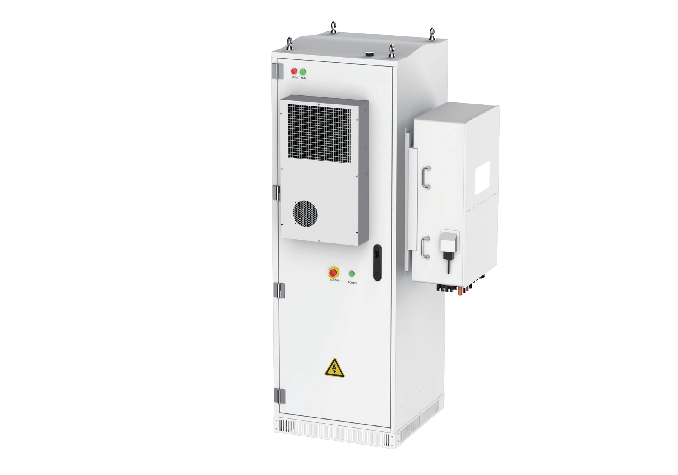

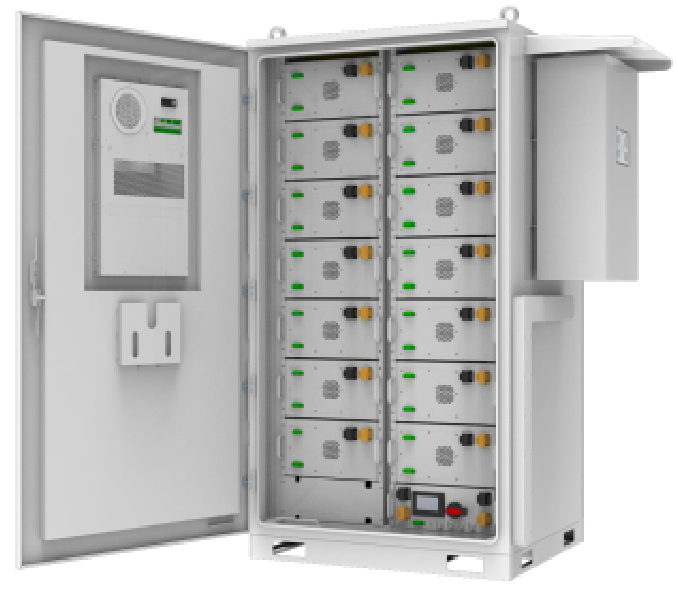

Integrated design: Integrates battery clusters, BMS, PCS, HVAC temperature control, EMS, and fire protection systems into a single outdoor cabinet, eliminating the need for additional building construction, allowing for direct outdoor installation and immediate deployment, reducing deployment time by 70% compared to traditional solutions, and maximizing deployment efficiency.

Intelligent temperature control and safety protection: Utilizes liquid cooling temperature control technology, with a precise temperature control range of 0-55°C, suitable for complex high/low temperature environments, improving temperature control accuracy by 30% compared to air cooling systems, effectively extending battery cell lifespan by 20%; equipped with three-level fire protection (aerosol + HFC-227ea) + BMS + fuse protection, achieving full-scenario protection against overcharge, overdischarge, short circuit, and thermal runaway, with safety levels reaching industry top standards.

High compatibility and flexibility: Supports grid-connected / off-grid / micro-grid operation modes, can be externally connected with photovoltaic modules and inverters, meeting "optical storage integration" requirements; modular and cabinet integration design supports 50kW-200kW elastic expansion, allowing customers to gradually expand capacity based on electricity load, avoiding waste from one-time investment.

2. Technology and Compliance Certifications

Core BMS/EMS systems are self-developed, with a three-level architecture, supporting 16 clusters in parallel operation, with voltage / current / temperature detection accuracy reaching ±0.5% FSR, ±2%, and ≤ ±2°C respectively, enabling real-time monitoring of battery cells and precise fault diagnosis;

Holds global mainstream safety certifications such as UL 9540A, IEC 62619, CE, etc., meeting requirements for entry into overseas markets in Europe, Asia, etc., helping customers quickly expand international business.

II. Application Scenarios

1. Core Adaptation Scenarios

For factory customers: "Your factory operates 24/7 continuously, with peak electricity costs being more than twice the daily rate. Use TG-eBank-50-161F for peak shaving and valley charging, and peak discharging during off-peak hours. You can save 30% of electricity costs annually; at the same time, it serves as backup power to avoid production line shutdowns due to power outages, which is a direct increase in pure profit."

For photovoltaic integration customers: "Nowadays, the rate of photovoltaic power rejection is high. By using this product as a complement, you can store surplus electricity for self-use or grid connection, increasing green electricity consumption from 60% to 90%, and also receiving local energy storage subsidies. This is a triple win."

For overseas traders: "The product holds global certifications, is compatible with overseas grid standards, and has an integrated design that reduces transportation and installation costs. When conducting overseas projects, you can quickly implement, reduce after-sales pressure, and increase project profit margins."

III. Solution Capability

1. Standardization + Customization Dual Solutions

Standardized solution: For 50-200kW medium and small power scenarios, provide an "out-of-the-box ready" integrated solution, including equipment delivery, installation guidance, and basic commissioning, completing deployment within 7 days, suitable for rapid deployment needs.

Customized solution: Based on customer electricity load, electricity price policies, and site conditions, customize capacity configuration (50kW-1000kW+), operation modes (grid-connected / off-grid / optical storage integration), temperature control / fire protection configuration, matching different regional policies and scenarios.

2. Full Lifecycle Service Loop

Pre-event: Free provision of electricity usage scenario diagnosis + ROI calculation, clearly defining the investment return period (usually 3-5 years), helping customers calculate the "economic account";

Mid-term: Provide on-site installation, system debugging, personnel training, along with remote operation tools, 7×24-hour fault response to address customer concerns regarding implementation;

Post-term: Offer 5-year warranty + regular inspections + battery cell recycling, establish equipment health records, utilize EMS cloud monitoring to optimize operation strategies in real-time, and extend system lifespan.

IV. Company Strengths

1. Hard Power Certification

Technology R&D: Have an energy storage system R&D team, master core technologies such as BMS, EMS, and liquid cooling temperature control, have received 10+ patents, and have a fast product iteration speed and continuous performance optimization;

Production Capacity and Delivery: Have a production capacity of ** over 1GWh per year**. Standardized production lines ensure delivery cycles. Regular orders are delivered within 30 days, and urgent orders can be expedited for production. It caters to customers' bulk purchasing needs;

Project Experience: Have implemented 200+ energy storage projects, covering scenarios such as factories, photovoltaics, power grids, and overseas trade, including the 200kW/430kWh user-side project of Zhejiang Kangge, and overseas 5MWh power station projects. There were no major safety accidents in the projects.

2. Cooperation and Service Strengths

Flexible cooperation models: Support OEM/ODM, agency distribution, project general contracting, etc., to adapt to different cooperation needs of traders, factories, and energy service providers;

Channels and After-sales: Have agency and service outlets in 30+ countries/regions worldwide. Overseas customers can enjoy local after-sales services; Provide dedicated account managers + technical support for core customers, and follow up the entire process of cooperation one-on-one.
