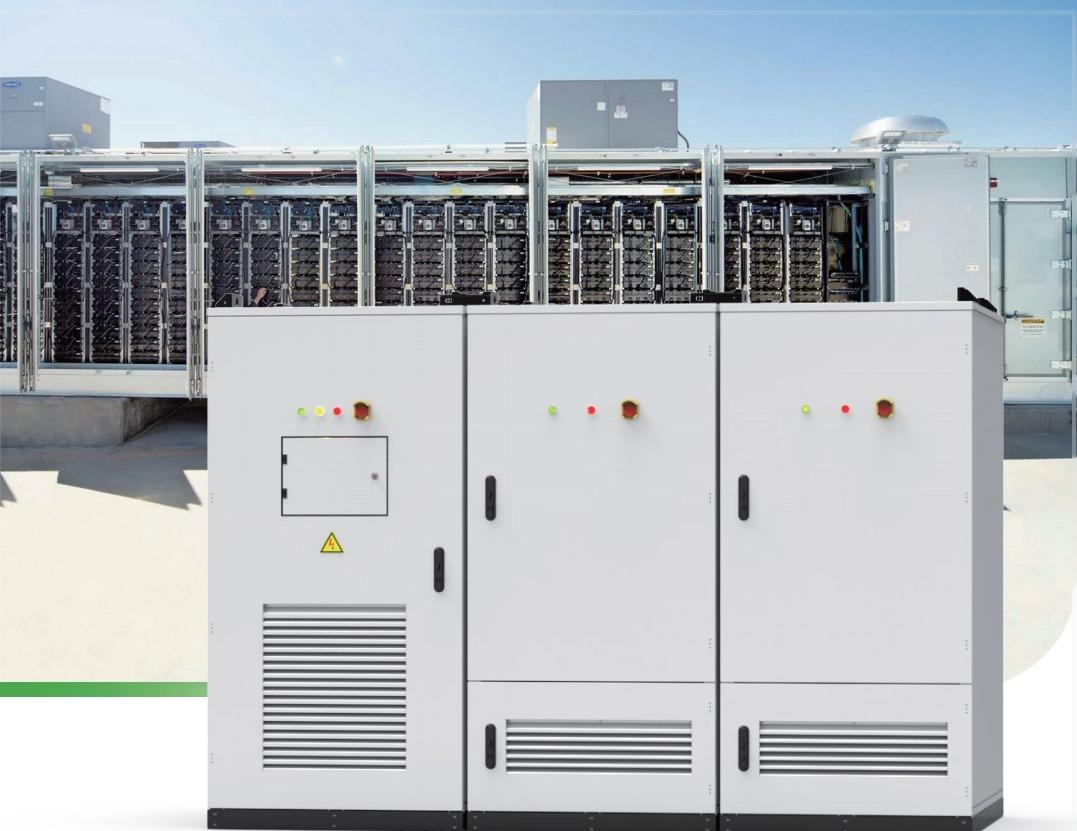

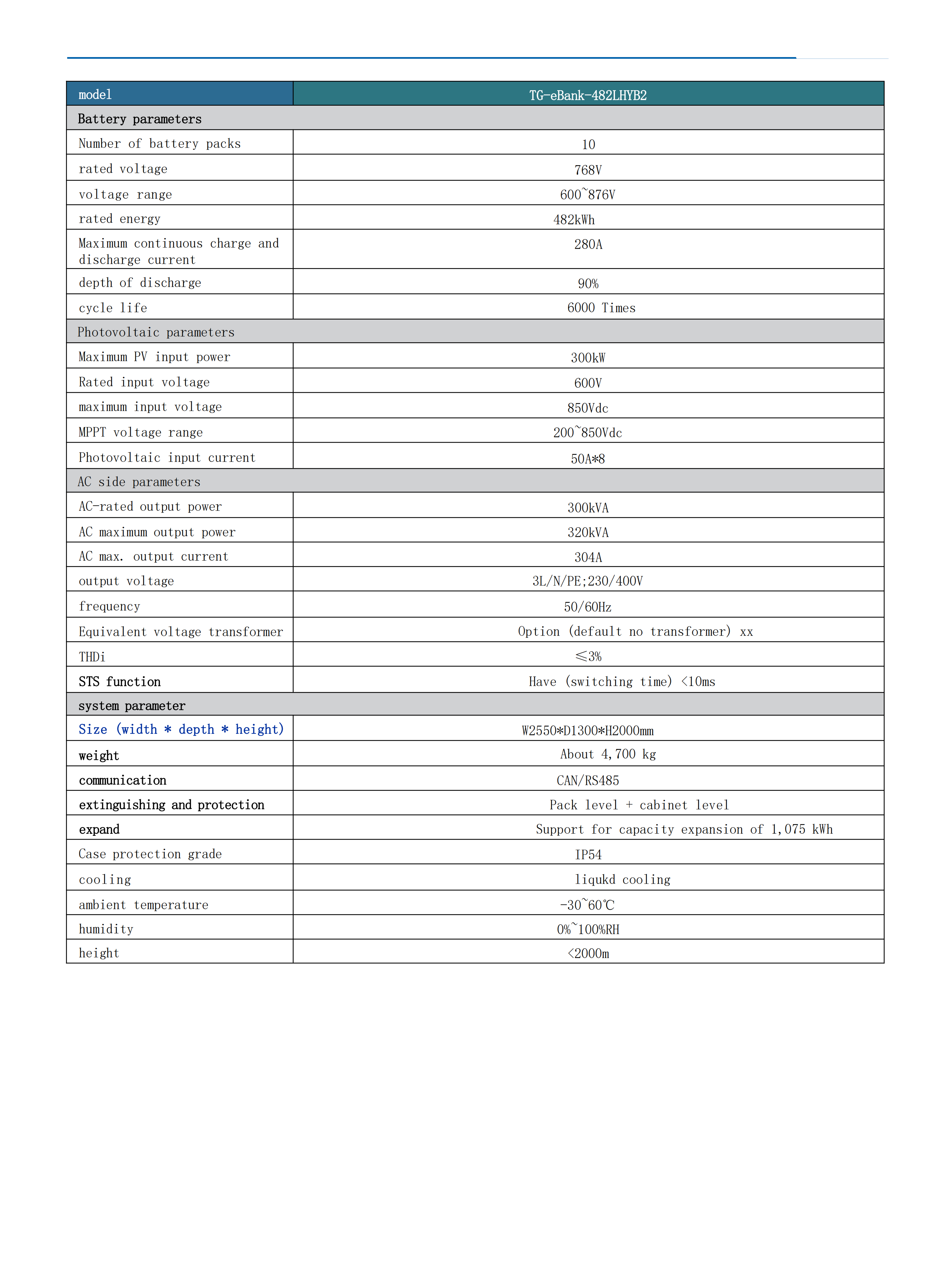

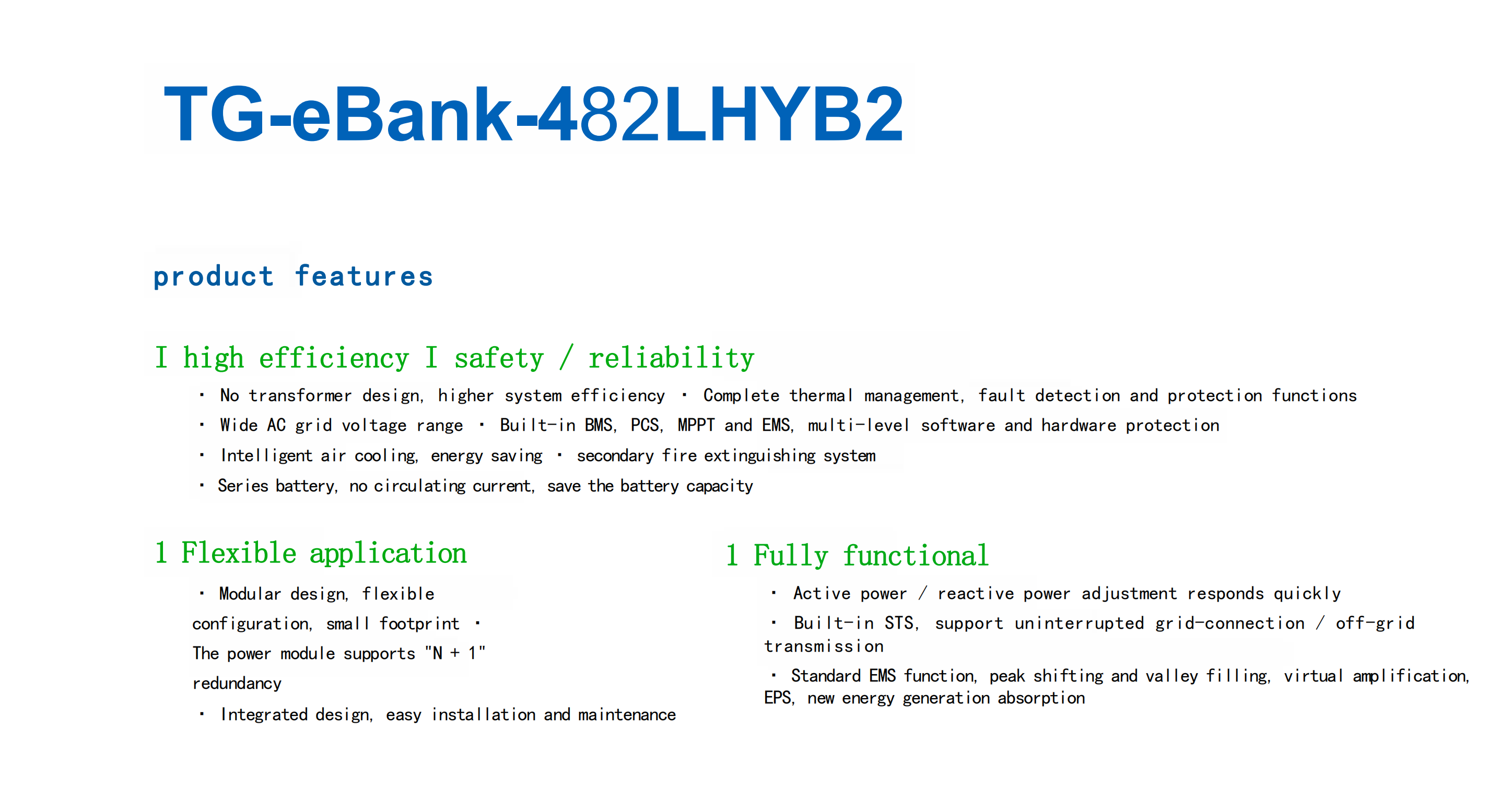

300kw300kw-mppt482kwh-TG-eBank-482LHYB2

I. Core Advantages

1. Optimal power and capacity ratio, benchmark model for industrial and commercial use

300kW high-power inverter + 482kWh large-capacity energy storage, the power-to-capacity ratio is suitable for the mainstream electricity load of domestic factories, parks, and commercial complexes. Each cabinet can cover the peak shaving and valley filling, demand management, photovoltaic storage integration, and emergency backup power requirements of medium and large loads. The market circulation is high, the terminal project demand is wide, the traders can sell quickly and have no worries about inventory turnover.

2. Dual MPPT multi-paths for photovoltaic tracking, significantly leading in photovoltaic and energy storage benefits

Equipped with independent dual high-power MPPT, wide voltage tracking range, real-time locking of the maximum power point of photovoltaic, photovoltaic charging conversion efficiency ≥ 97.5%; supports multiple photovoltaic string connections, compatible with different inclination / shading photovoltaic arrays, significantly improves weak light power generation utilization rate, significantly increases photovoltaic self-generation rate, terminal customers have higher electricity cost benefits and shorter payback period, and you have more confidence in promotion and bargaining.

3. Liquid cooling temperature control + long-cycle high-life, extremely low cost throughout the life cycle

482LHYB2 exclusive liquid cooling cooling system, precise temperature control throughout the cabin, cell temperature difference < 3℃, inhibits cell degradation;

Lithium iron phosphate cell ultra-long cycle ≥ 8000 times, calendar life 15 years +

System charging and discharging comprehensive efficiency ≥ 95%

Temperature control reduces auxiliary consumption and delays aging, the LCOS electricity cost is better than the same power air-cooled models, terminal long-term operation costs are low, and repeat purchase and referral are more.

4. Full-stack integrated integration, ready to use upon opening, extremely low deployment cost

Integrates energy storage battery cluster, 300kW hybrid inverter, dual MPPT, BMS battery management, EMS energy management, HVAC liquid cooling, three-level fire protection, lightning protection power distribution in a single outdoor standard cabinet, no additional machine room, outdoor direct installation, simple on-site wiring:

Construction period shortened by 70%, construction and installation costs significantly reduced

Compact in area, protection IP54+, dustproof, rainproof, resistant to outdoor harsh conditions

5. Modular expansion + extremely strong compatibility, suitable for all scenarios of renovation

Supports parallel expansion of multiple cabinets, from single cabinet 482kWh to MWh-level energy storage power station;

Compatible with mainstream photovoltaic modules, power grid, diesel generators, supports off-grid / grid-connected dual-mode operation;

Compatible with peak-valley arbitrage, demand control and capacity expansion, photovoltaic self-use, emergency backup power, micro-grid island operation, old factory energy storage renovation, new photovoltaic energy storage projects.

6. Full-dimensional safety protection, complete compliance certifications

PACK + cluster + cabin three-level fire protection linkage, heat runaway warning, explosion-proof and explosion-proof, overcharge, overdischarge, overcurrent, short circuit, insulation monitoring complete protection, no fire or explosion;

Covered UN38.3, IEC62619, CE, UL safety regulations, domestic energy storage grid connection related certifications, no obstacles for project grid connection, foreign trade customs clearance, project acceptance.

7. Intelligent cloud platform + simple operation and maintenance, less pressure on channel after-sales

Self-developed cloud EMS energy management system, 24-hour remote monitoring, OTA online upgrade, fault warning, automatic energy scheduling, data reports;

Modular plug-and-play structure, cells and modules can be replaced separately, no need to disassemble the entire cabinet; Headquarters after-sales guarantee, traders do not need to build their own technical team, after-sales costs are low, channel service threshold is low.

II. Application Scenarios

1. Industrial and commercial factories and parks

Manufacturing plants, industrial parks, logistics warehouses, food processing, hardware and mechanical factories; solve peak-valley electricity price difference arbitrage, basic load reduction, reduce high electricity costs, production emergency backup power, avoid power outage and production loss, combined with factory roof photovoltaic for photovoltaic and energy storage self-use.

2. Commercial public buildings

Shopping malls, supermarkets, hotel buildings, communication hubs, hospitals, schools; For public power consumption energy conservation, emergency power supply assurance, backup UPS uninterrupted power supply, and load optimization of distribution.

3. New energy photovoltaic power storage integration

Power storage integration for large-scale rooftop photovoltaic and ground photovoltaic power stations to address photovoltaic power waste, enhance self-generation and self-consumption, manage surplus electricity, and meet the requirements of local mandatory power storage policies for photovoltaic power.

4. Off-grid microgrid & remote area power supply

Photovoltaic + power storage independent power supply for mountainous base stations, islands, pastoral areas, and remote factory areas without power grids, providing stable operation without grid connection, and multi-energy complementary power supply.

5. New energy power supply integration, storage power station batch projects

Distributed power storage clusters, user-side power storage power stations, grid auxiliary peak shaving projects, multi-cabinet parallel networking, large-scale revenue operation.

III. Solution Capability

1. One-stop turnkey overall solution

From on-site power consumption survey, load calculation, capacity ratio design, system scheme drawing, equipment supply, on-site installation and commissioning, grid connection acceptance, operation and maintenance management full-process closed-loop service;

Customized for end customers: peak-valley arbitrage strategy, optimal photovoltaic-storage ratio, demand management algorithm, emergency power supply plan, microgrid operation strategy, without requiring additional integration of accessories by partners, the entire solution is directly implemented.

2. Flexible business model adaptation, facilitating channel monetization

Support multiple cooperation profit models, adaptable to traders, integrators, multi-order receiving:

Direct sales distribution model

EPC engineering general contracting support

EM contract energy management

Leasing operation, capacity sharing, photovoltaic + storage package solution.

3. Multi-specification expansion and customization adaptation capability

Based on the TG-eBank platform architecture, support power/capacity fine-tuning, communication protocol customization (Modbus/RS485, etc.), overseas grid parameter adaptation, low-voltage/high-voltage version customization, enclosure size customization;

Compatible with various brands of upstream battery cells, can cooperate with battery manufacturers for battery cell system integration, joint model development, and customized PACK solution, deep supply chain cooperation.

4. Supply chain and delivery guarantee, stable orders without delays

Self-developed complete machine integration production line, self-produced battery cells, PCS, BMS, EMS + preferred supply chain lock material, stable spot inventory, controllable batch delivery period; support small batch samples, large batch order production, export containerized shipment packaging, meeting the delivery requirements of traders' individual orders, engineering large orders, export orders.

5. Full life cycle operation + channel empowerment services

10-year system warranty from factory, long-term battery warranty, full-cycle fault guarantee;

Free provision of product materials, parameter manuals, certification documents, promotional materials, bidding qualification documents, project case solutions;

Technical training empowerment: product explanation, installation and commissioning, operation and maintenance knowledge, sales pitch training;

Remote technical support, on-site emergency after-sales response, reducing channel service threshold.

IV. Company Strength

1. Self-research and self-production strength in the entire industry chain

Deeply engaged in the energy storage industry for many years, possessing the ability to research and develop battery cells application, self-develop BMS/EMS intelligent systems, PCS inverter research and development, storage cabinet structure design, system integration, complete machine production chain; independently controlling core software and hardware technologies, not simple assembly, product iteration fast, quality controllable, cost advantage stable.

2. TG-eBank series mature platform, global project implementation verification

TG-eBank is the company's main industrial energy storage platform series, stable operation of numerous industrial projects in multiple countries and industries worldwide, verified in high-temperature, high-humidity, and severe outdoor conditions, product reliability and operational stability have been verified by long-term market testing, no batch quality risks.

3. Complete qualification certification and compliance system

 All product series have passed a complete set of authoritative certifications for energy storage safety, electrical engineering, and transportation both domestically and internationally. They comply with domestic standards for energy storage grid connection, EU CE, and UN38.3 export regulations for maritime transportation, and are fully compliant with domestic bidding, overseas customs clearance, and project acceptance procedures. They avoid risks associated with the qualifications of partners.

4. Stable Supply Chain and Capacity Assurance

We have our own large-scale production base for energy storage systems, standardized production lines, and strict quality control systems. We have long-term strategic cooperation with upstream battery cell suppliers to secure production volume. Our capacity is sufficient and we can reliably handle large-scale domestic distribution, foreign trade export orders, and long-term annual framework supply. There will be no shortage of products, no price hikes, and stable supply.

5. Global Service Network

We have service outlets in multiple locations across China and an overseas technical support system, covering project surveying, installation guidance, and after-sales maintenance. Projects both at home and abroad can respond quickly, and there are no service shortcomings in terms of geographical location in cooperation.
