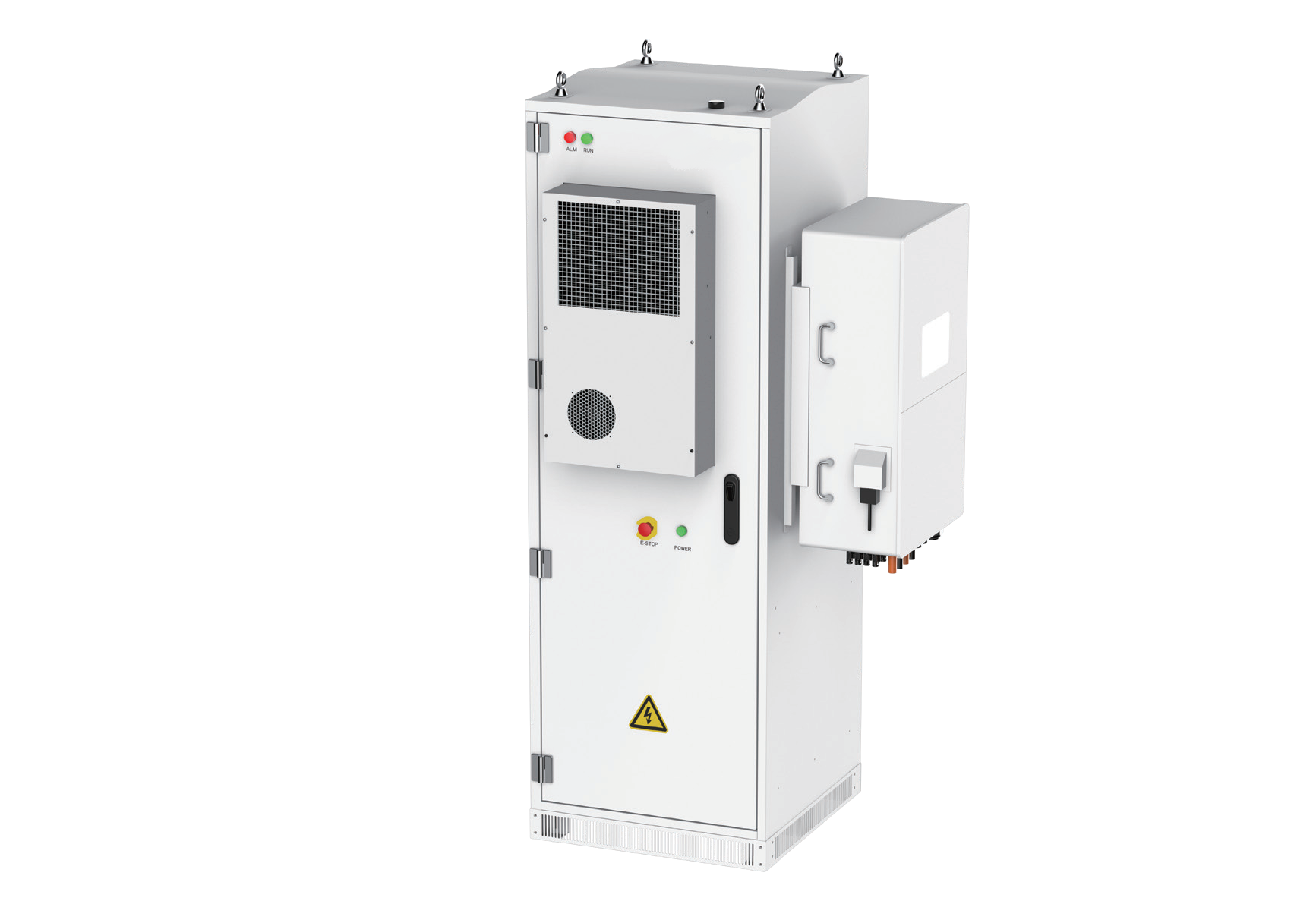

30kw50kwh-TG-eBank-60F2

Features

 • Easy to install and deploy with large space utilization

 •Unique modular design & flexible function configuration

 •Strong scalability, simple & convenient expansion on both AC and DC sides

 •With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Advantages

1. Lightweight and Compact - Market Necessity Model

30kW power output combined with 50kWh small capacity. Compact and small in size, with low floor space requirement, convenient for transportation and loading/unloading, low logistics and warehousing costs, easy to achieve high sales volume both domestically and internationally, and high terminal acceptance rate.

2. High-voltage Lithium Iron Phosphate System - Safe and Reliable

Utilizing high-quality lithium iron phosphate battery cells, equipped with an intelligent BMS battery management system, precise temperature control, multiple protections against overvoltage, overcurrent, overload, and high temperature, long cycle life, stable charging and discharging performance, and durability.

3. Integrated Design

The entire machine integrates PCS bidirectional inverter, battery module, air-cooling cooling system, fire protection system, and complete distribution components. Factory completed debugging, ready for on-site wiring and use, simple installation, and cost savings in labor and construction period.

4. Outdoor High Weather Resistance Performance

The entire machine reaches IP55 protection level, dustproof, waterproof, and rainproof, operating in a wide temperature range, not afraid of complex usage environments such as outdoor open spaces, simple factory sheds, etc., and stable operation throughout the year.

5. Flexible Parallel Expansion

Can be used independently as a single unit, or can be combined in parallel for expansion with multiple units, freely configured to meet different power and capacity project requirements, with extremely strong adaptability.

II. Application Scenarios

1. Small-scale Industrial and Commercial Peak-Valley Load Balancing

Small factories, street shops, stores, and small enterprises can store electricity during off-peak hours, effectively reducing peak-time electricity costs, and easily achieving energy-saving and cost reduction in electricity usage.

2. Household and Small-scale Photovoltaic Energy Storage

Rural self-built houses, villas, small rooftop photovoltaic systems with energy storage, storing photovoltaic surplus electricity, improving self-consumption rate, and stabilizing daily household electricity usage.

3. Emergency Standby Power Supply

Small offices, shops, breeding bases, small computer rooms, etc., can provide backup power in case of power outages, ensuring the normal operation of basic equipment.

4. Outdoor Temporary Power Supply

Outdoor operations, temporary power supply at construction sites, outdoor projects, and event sites without grid connection for independent power supply.

5. Main Storage Solution for Overseas Civilian Use

In areas with power shortages such as Southeast Asia, the Middle East, and Africa, it is a main storage solution for household and small-scale commercial use, and is a popular export model.

6. Small-scale Convenient Energy Storage Supplement

Community micro-charging stations, small fast-charging stations for factories, etc., for energy storage use.

III. Solution Capability

1. Flexible Adaptation for Multiple Modes of Cooperation

The entire machine can be directly supplied to trading partners as a finished product; or the battery PACK and bare module can be provided separately for battery manufacturers for assembly; support brand customization, label customization, and parameter fine-tuning to meet different channel cooperation needs.

2. Full Process Technical Empowerment

Free provision of project configuration plans, installation drawings, grid connection materials, operation tutorials, and one-on-one technical support throughout the process. Cooperation customers can easily complete projects without a professional team.

3. Intelligent Cloud Remote Maintenance

Equipped with 4G intelligent monitoring platform, real-time monitoring of electricity, voltage, temperature, and equipment operation status, support for remote fault diagnosis and program upgrades, zero pressure for later maintenance.

4. Complete Certifications for Overseas Sales

Has mainstream certifications for energy storage in both domestic and foreign markets, complies with multiple countries' power grid connection standards, domestic can be registered and connected, and foreign customs clearance is smooth without obstacles.

5. Flexible Supply Model

Supports small-batch trial orders and large-batch bulk orders, can be combined with a full range of energy storage products for distribution, enriching the product line for customers.

IV. Company Strength

1. Source Energy Storage Entity Manufacturer

Specialized in the research, integration, and production of industrial and commercial household energy storage systems, with a mature production process, strict quality control, stable mass production, and low product failure rate.

2. Stable Supply Chain of Electrolytic Cells

Long-term direct purchase from leading electrolytic cell factories, stable and sufficient supply of raw materials, obvious cost advantages for the entire machine, high product value in the channel, and sufficient profit space for exports.

3. Adequate Production Capacity and Fast Delivery

Regular models have ready-made inventory, quick direct delivery of spot goods, and can quickly produce large orders, delivering on time without delaying customer order cycles.

4. Complete After-sales Guarantee System

Provide both long-term whole-machine warranty and battery cell warranty for dual protection. Offer rapid on-site after-sales service response in China, and provide full remote technical guidance overseas. This minimizes the risks of channel after-sales services to the greatest extent.

5. Exclusive Channel Support Policies

Deeply cooperate with battery manufacturers for discounted supply and deep alliance; implement regional market protection, exclusive channel pricing, and market promotion support for traders, achieving long-term stable and mutually beneficial cooperation.
