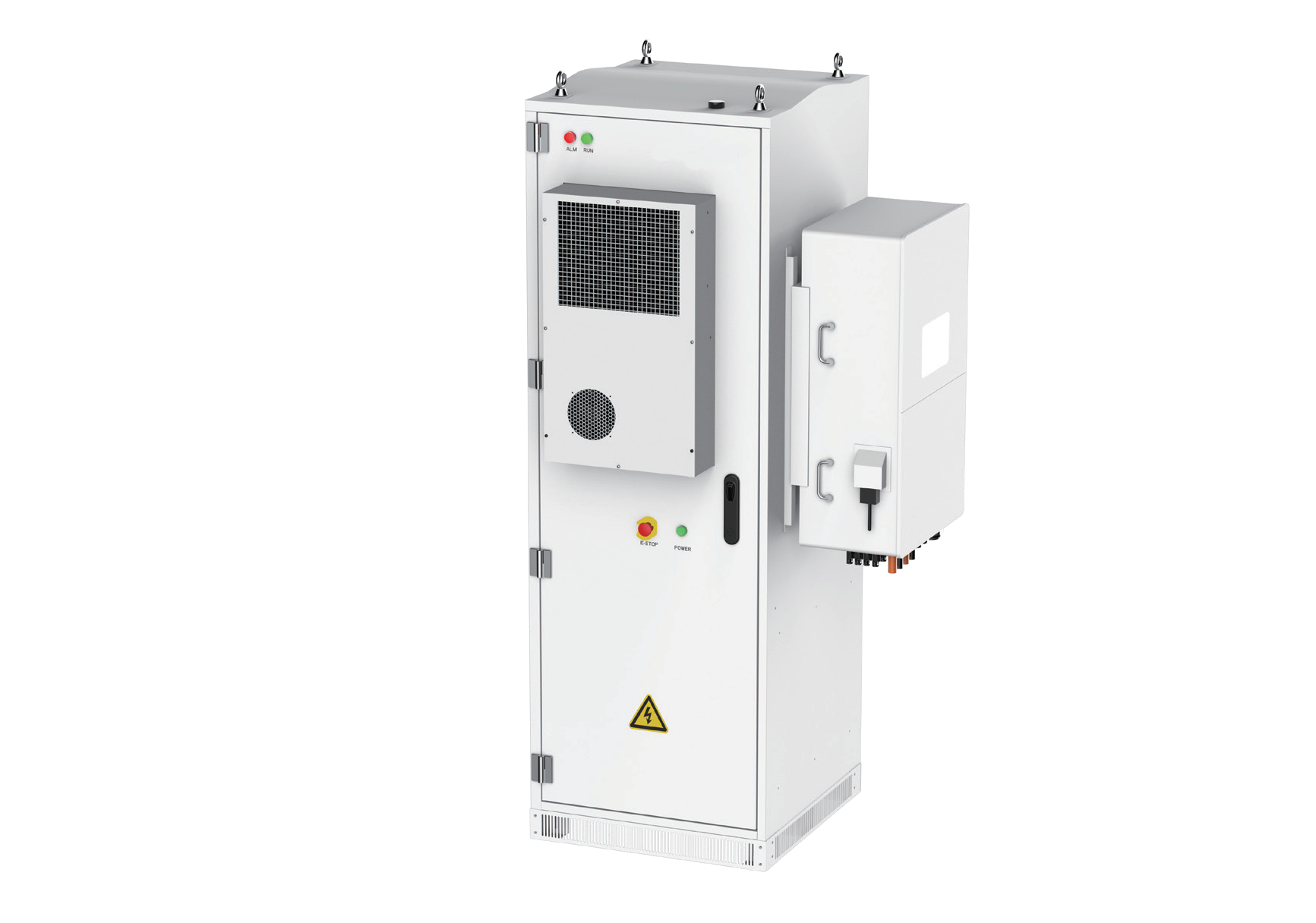

50kw120kwh-TG-eBank-50120F

Features

• Easy to install and deploy with large space utilization

•Unique modular design & flexible function configuration

•Strong scalability, simple & convenient expansion on both AC and DC sides

•With self-use, peak shifting, forced charging & discharging and other working modes

I. Core Strengths (Technical and Product Hard Power)

1. Fully integrated and one-stop deployment

The lithium battery energy storage, 50kW hybrid inverter, HVAC temperature control, BMS, EMS and other core equipment are highly integrated into a single outdoor cabinet, truly achieving "plug and play". No additional construction of a data center is required. The outdoor direct installation can be put into operation, transportation is convenient, and the occupied space is small. The deployment cycle is shortened by 70% compared to traditional solutions, significantly reducing the initial infrastructure and installation costs.

2. High efficiency and long lifespan, cost reduction throughout the life cycle

Using lithium iron phosphate (LFP) battery cells, the energy density leads the industry, with charging and discharging efficiency ≥ 90%. Each kilowatt-hour creates higher value;

Equipped with an accurate temperature control system, it extends battery life by 20%, with a cycle life of 8,000 times (80% DOD). Calculated based on 300 charge and discharge cycles per year, the service life can reach over 10 years, with lower long-term degradation and failure risks [17];

384V high-voltage design, improving transmission efficiency and reducing line losses, perfectly matching the input requirements of 50kW inverters.

3. Modular flexible expansion, adaptable to dynamic demands

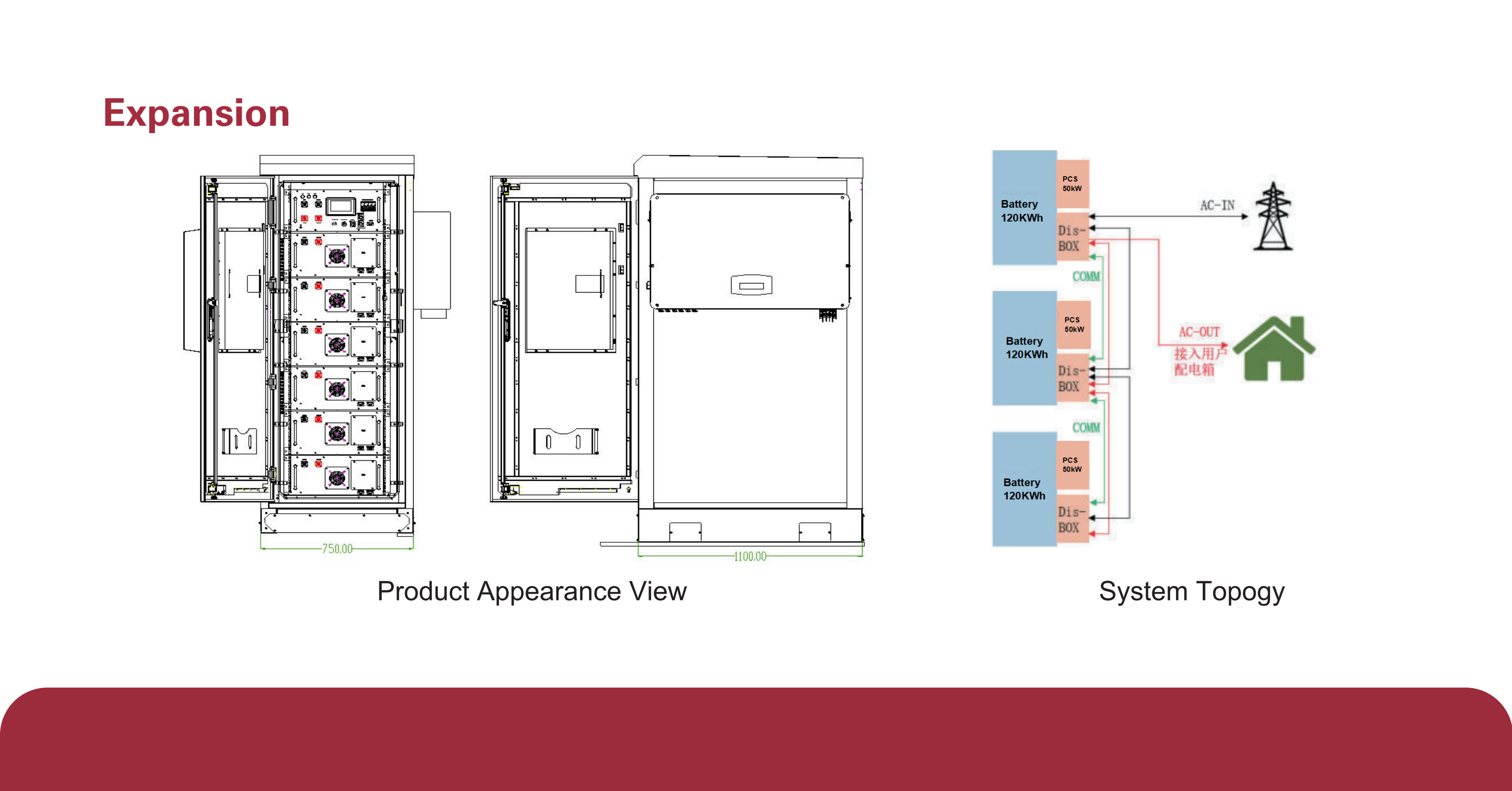

Supports free capacity expansion and multi-unit cabinet connection, can be gradually expanded according to the electricity load, avoiding waste of one-time investment. It can meet the dynamic electricity demand of small and medium-sized commercial and industrial users, and can also achieve MW-level expansion through cabinet connection, providing a wider range of application scenarios.

4. Super strong compatibility, protecting existing investment

The inverter adopts an external-mounted design, compatible with multiple brands of inverters and mainstream protocols. Whether it is a new energy storage system or an existing photovoltaic + energy storage renovation project, it can be seamlessly connected. Supports various operation modes such as self-generation, peak shaving, and emergency backup power supply, meeting the needs of diversified energy management.

5. Comprehensive safety, reliable 24/7

Has multiple BMS safety protections such as overcharge, overdischarge, overtemperature, and short circuit, with IP54 protection level suitable for complex factory environments. Built-in multi-level active safety and fire protection mechanisms, precise temperature control to prevent heat runaway, redundant design of key components to ensure stable operation in extreme conditions [20].

II. Application Scenarios

1. Core target scenarios: Small and medium-sized commercial and industrial electricity consumption

Applicable objects: Factory workshops, commercial complexes, supermarkets and hotels, data centers, etc., places with stable electricity consumption;

Core value: By peak shaving and filling, reduce demand electricity costs and peak-time electricity costs, improve electricity economy; as a backup power source, ensure production/operation continuity, and deal with sudden power outages.

2. Expansion scenarios: Solar-storage integration and micro-grid

Applicable objects: Distributed photovoltaic power stations, farms / villas, remote area base stations;

Core value: Accompanying photovoltaic to achieve "self-generation, self-storage", improve green electricity consumption rate; off-grid / grid-connected dual-mode adapted to remote areas, solve the problem of insufficient grid coverage, and reduce diesel power generation costs.

3. Overseas scenarios: International project adaptation

Applicable objects: Overseas traders, international engineering projects;

Core value: Through CE, UL and other international certifications, adapt to 230/400V global mainstream grid standards, support multiple frequencies of 50/60Hz, meet the project entry requirements of Europe, Southeast Asia, Africa, etc. [25].

III. Solution Capability (One-stop Implementation Service)

1. Full-process customized solutions

Preliminary stage: Provide electricity load calculation, scenario adaptation selection, investment return analysis. According to the customer's needs of the manufacturer / trader, customize capacity expansion and operation mode solutions;

Mid-term stage: Provide on-site survey, integrated installation and commissioning, and assistance with grid connection procedures. Follow up the project implementation throughout the process, reducing customer coordination costs; Post-Phase: Build a remote monitoring and operation platform to monitor SOC/SOH in real time, issue fault warnings, and provide full-cycle services including regular inspections, battery replacements, and system upgrades, thereby reducing operation costs.

2. Exclusive Support for Foreign Trade

Offer a complete set of foreign trade document services, including product certification materials, packing lists, customs declaration forms, contract templates, etc., to assist in quickly completing export customs declaration;

Support customized packaging and logistics solutions, suitable for various transportation methods such as sea and air, to ensure the safe delivery of products and reduce logistics losses;

Provide technical materials translation from Chinese to English and product manual translation, along with multilingual after-sales support, to help expand the international market.

3. Project Implementation Guarantee

Provide project schedule commitment and quality guarantee letters to ensure delivery and acceptance within the agreed period;

Form a professional technical team to provide remote technical guidance, assisting in resolving technical issues during installation, commissioning, and grid connection;

For bulk purchasing customers, offer price discounts and dedicated after-sales teams to enhance cooperation stickiness.

IV. Company Strengths

1. Technical Research and Development Strength

Specializing in the energy storage field for many years, we have a full-stack self-developed technology system. Our core team is deeply involved in lithium battery energy storage and power electronics technology, and have obtained multiple patent certifications;

Establish a professional research and development laboratory, focusing on efficient cells, intelligent temperature control, and BMS safety innovation, with continuous product performance iteration and maintaining industry-leading levels.

2. Manufacturing and Quality Control Capabilities

We have a standardized production base, introducing automated production lines and 3D visual inspection technology, with a product defect rate lower than the industry average, stable annual production capacity, and ensuring the ability to deliver in batches;

Implement strict quality control systems, with products passing UN38.3, IEC62619, UL1973 and other international authoritative certifications, and quality meeting global market entry standards.

3. Industry Reputation and Project Experience

We have served over 70 countries worldwide, completed 200+ cross-border energy storage projects, with cumulative delivered capacity exceeding 5GWh, covering factories, base stations, overseas power stations and other diverse scenarios;

We have reached strategic partnerships with several leading overseas enterprises, with high customer repeat purchase rates, and receiving widespread market recognition [9] due to our "efficient, safe, and convenient" products and services.

4. Global Service Network

Establish overseas service centers and local teams to provide 7×24-hour after-sales response, quickly resolving issues such as installation, operation, and technical consultation for customers;

Establish a complete supply chain system to ensure stable supply of core components and ensure consistency in project delivery cycle and product quality.
