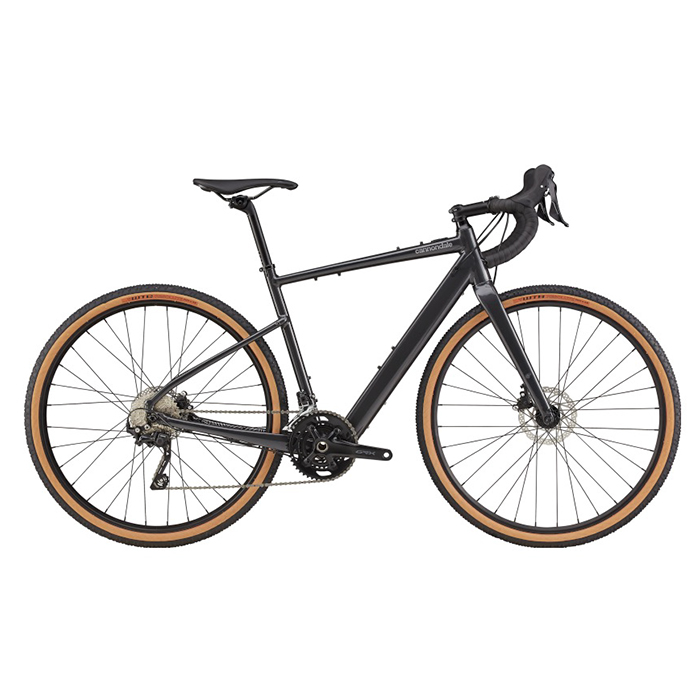

Home > Products > E-bike & Motorcylce Batteries > MATE-SN-SSE123 36V10Ah Frame Integrated E-bike lithium ion Battery
Model No.: MATE-SN-SSE123
Style: Frame Integrated
Nominal Voltage: 36V
Nominal Capacity: 10Ah
Cells: 21700-5Ah 3.7V
Configuration: 10S2P
BMS: Standard
Dimensions: 437.5*48.8*48.1 (mm)
Production Desciption
Main Features:
1. High Safety and Reliability: With EV A+ Grade 21700cells (3.7V5000mAh)
2. Long Cycle Life: 500 times of 0.5C charge&discharge, 100%DOD, the remaining capacity is 80%+ of initial Capacity.
3. Water-proof Design: We adopt water-proof technology to satisfy the use in the rainy or humid weather.
4. Smart BMS is optional.: Allows the riders to monitor battery status including SOC, voltage, current, temperature, cycle life etc through an smart phone APP.
5. GPS function is optional. People can locate their bikes through a smart phone APP.
Specification
| No. | Items | Spe cifications |
| 1 | Nominal Voltage | 36V |
| 2 | Nominal Capacity | 10Ah |
| 3 | Cell inside | 21700-5000mAh 3.7V |
| 4 | Configuration | 10S2P |
| 5 | Standard Charge Current | 2A (0.2C) |
| 6 | Max. Charge Current | 10A (1C) |
| 7 | Protected Circuit Board(BMS) | Standard BMS |
| 8 | Continuous Discharge Current | 10A |
| 9 | Peak Discharge Current | 40A |
| 10 | Full Charged Voltage | 42V (4.2V per cell) |
| 11 | Charge Cut-off Voltage | 42.5V (4.25V per cell) |
| 12 | Discharge Cut-off Voltage | 35V (2.5V per cell) |
| 13 | Battery Net Weight | 3.2kg approx. |
| 14 | Battery Dimension | 437.5*48.8*48.1(mm) |
| 15 | Charging/Discharging | DC connector |
| A pair of wire | ||
| 16 | Operating Temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
| 17 | Storage Temperature | (Recommended to store 20 ± 5°C for long term storage) |
| 18 | Life Cycle | >800 times (80% of initial capacity at 0.2C rate, IEC Standard) |

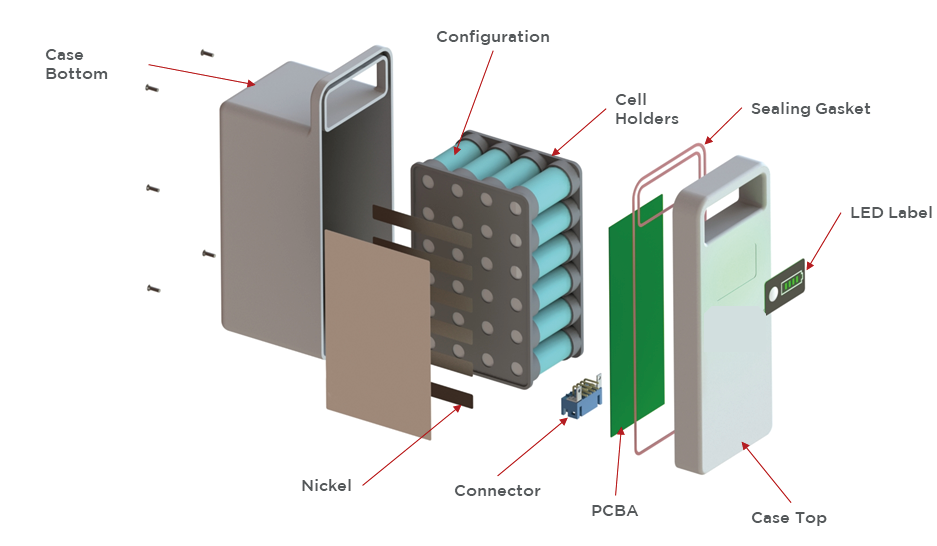

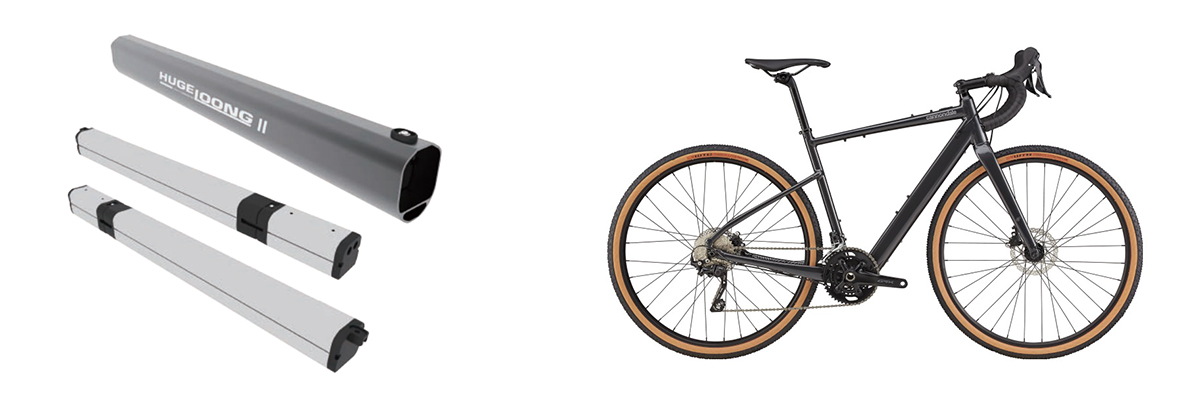

Details Photos:
Other Options
| Model No. | Cell Type | Size(mm) | Max. Cell(pcs) | Max. Capacity |
| MATE-SN-SSE123 | 18650 | 430*42*103 | 52 | 24V7Ah |
| MATE-SN-SSE116 | 18650 | 435.5*59*60.4 | 65 | 24V7Ah/36V10Ah |
ODM/OEM Customized Solution
Customized solutions:
To meet the differentiated demands of mid-to-high-end electric bicycle manufacturers and brand owners, we have developed three exclusive solutions:
1. Frame customization package solution
Problem-solving: For the development needs of new models by the vehicle manufacturers, we provide a joint design service for batteries and frame cavities, based on the frame structure, load-bearing requirements, and range goals, to customize the battery size, cell scheme, and fixation structure; optimize the assembly process of batteries and the frame to achieve automated assembly lines, improving production efficiency.
Value-added services: Assist customers in completing the integration certification of batteries and the entire vehicle, providing technical support for international certifications such as CE, UL, and UN38.3, shortening the new product launch cycle.
2. Upgrade solution for existing models
Problem-solving: For the upgrade needs of the high-end versions of existing models, we provide compatible battery modules + frame modification solutions, without significant changes to the frame molds, only through local optimization to achieve battery integration; provide dedicated installation tools and modification tutorials to reduce the cost for vehicle manufacturers.
Value-added services: Provide matching debugging of batteries and the entire vehicle controller, optimize the power output curve, and improve riding smoothness.
3. Overseas high-end market solution
Problem-solving: For the high-end electric bicycle markets in Europe, Japan, etc., we provide products that comply with local regulations (compatible with motors under 250W and meeting speed limit requirements); customize lightweight and highly concealed designs to match the local users' demands for "lightweight electric bicycles and simple appearance"; optimize battery packaging to meet cross-border transportation standards and reduce logistics risks.
Value-added services: Provide multi-language BMS control interface customization, MSDS/ROHS clearance documents, and assist customers in expanding the overseas high-end market.
Factory strength guarantee: Choosing us means choosing high-end quality and stable supply.
1. R&D strength: The company has a professional electric bicycle battery R&D team, focusing on the structural design of frame-integrated batteries, BMS algorithm optimization, and cell matching, with product performance indicators at the industry-leading level; equipped with a professional frame-battery joint laboratory, capable of completing full-dimensional tests such as structural strength, waterproof performance, and riding durability.
2. Production strength: We have 2 dedicated production lines for frame-integrated batteries, using automated equipment for cell sorting, module assembly, and sealing detection to achieve full-process data traceability; online detection equipment conducts 100% screening of battery voltage, internal resistance, capacity, and waterproof performance to ensure consistency deviation ≤ 1.5% at the factory; capable of meeting small-batch customization and large-scale production needs, with stable delivery schedules.
3. Quality control and certification: Certified by ISO9001 quality management system and ISO14001 environmental management system; products comply with international certification standards such as CE, UL, UN38.3, and RoHS, undergoing 15 rigorous tests such as drop, vibration, temperature and humidity cycling, and waterproof immersion before leaving the factory, with a pass rate of 100%.
4. Service strength: Provide one-on-one customer managers + technical engineers for connection services; support free sample testing, optimize the plan based on test data; provide lifetime technical consultation for after-sales, responding within 48 hours for product quality issues, and overseas customers can enjoy technical support from local cooperative service providers.
Why Choose MateLion
Choosing MateLion means you chose a reliable mate to support your business with market-proved high-quality lithium ion batteries, advanced assembly technology and worry-free after-sale service. As a professional manufacturer for years, MateLion's capability covers providing professional lithium ion batteries to E-bike, E-motor cycle, EV, LEV, HEV, AGV, RV, VAN, Marine, Solar System, Golf Carts, Off-grid System etc. MateLion can customize batteries exactly according to your requirements with ODM/OEM service to help you market your own brand!
