50kW_161kWh All in one PV+Storage

I. Core Advantages

1. Highly Integrated All-in-One Design

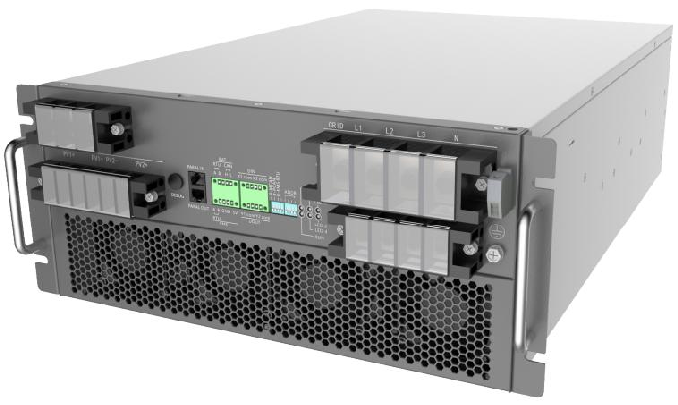

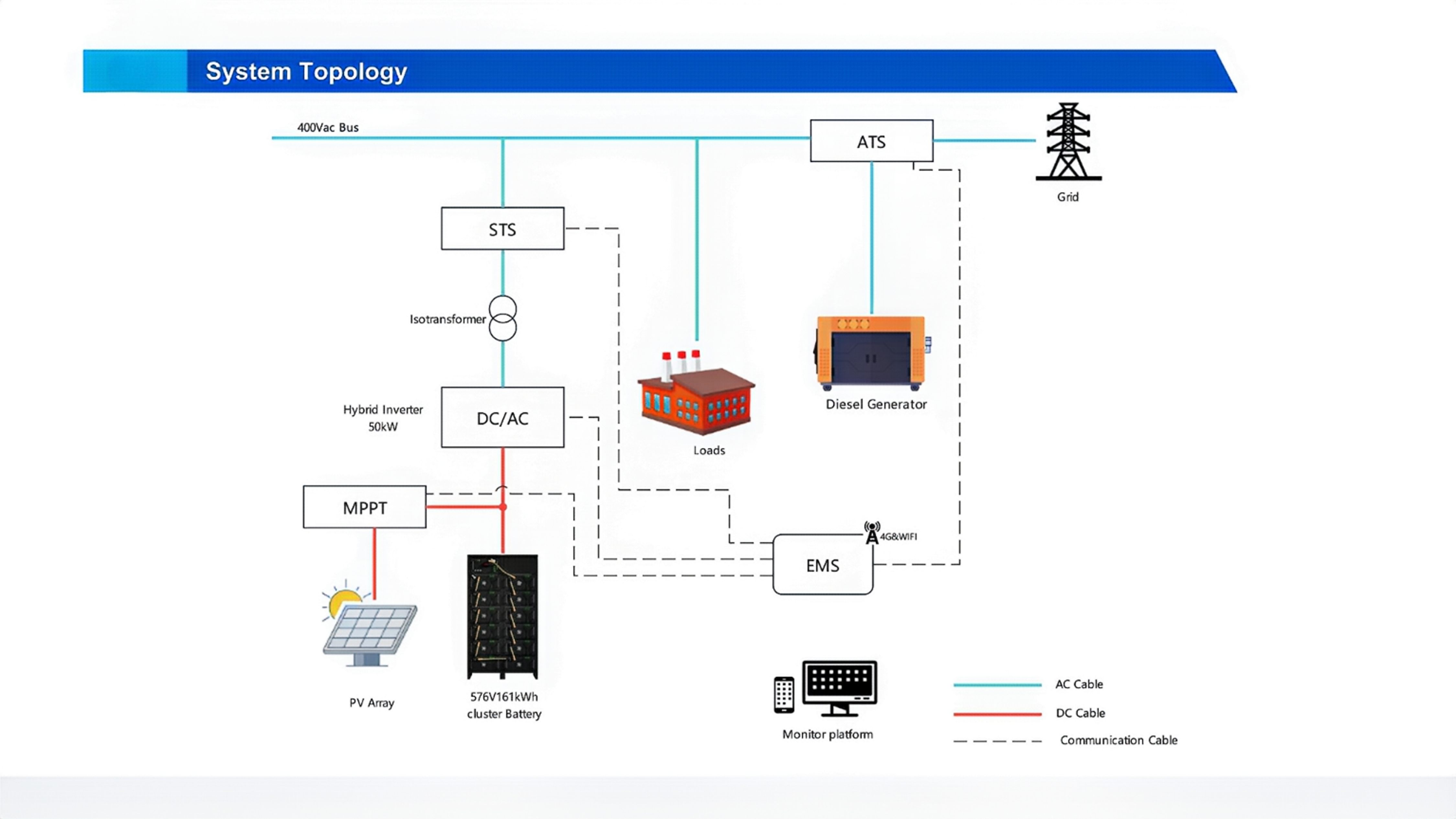

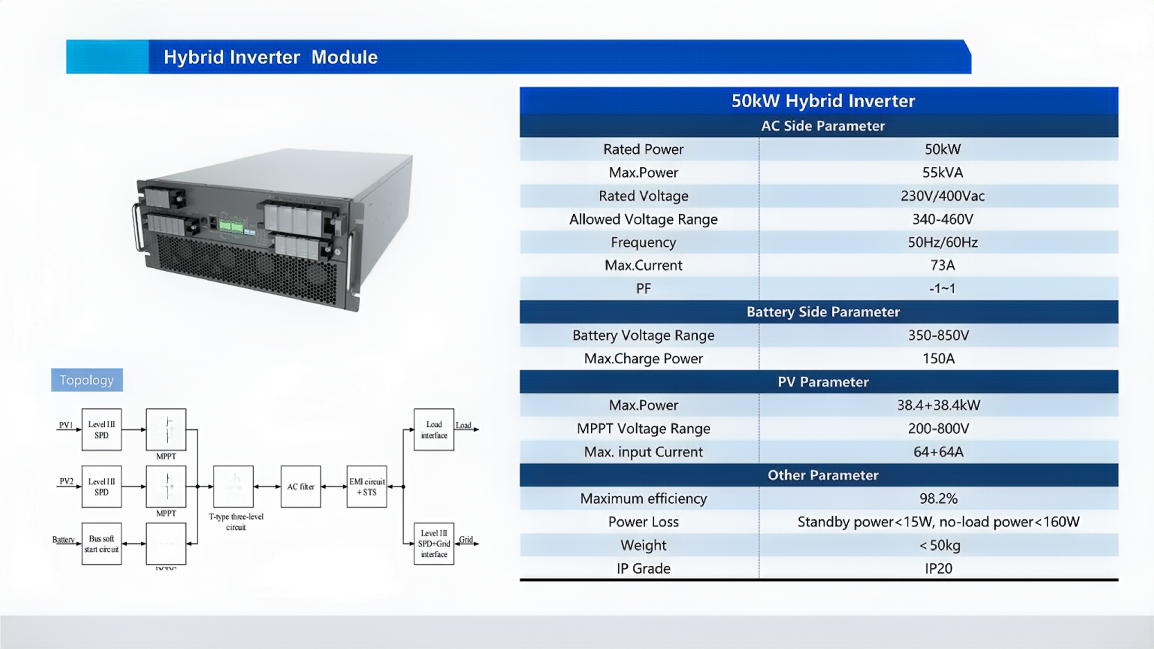

The entire machine integrates 50kW bidirectional PCS + 161kWh lithium iron phosphate battery + MPPT solar power connection + power distribution system + fire protection + temperature control + cloud monitoring. The all-in-one machine is ready for use upon installation, without the need for piecing together scattered components. It eliminates the hassle of separately purchasing inverters, batteries, and power distribution cabinets.

2. Power Capacity Matching Golden Ratio

The 50kW inverter power is matched with 161kWh large-capacity energy storage. It perfectly suits photovoltaic self-generation, peak-valley arbitrage, and backup off-grid power supply. The ratio is reasonable, the utilization rate is high, the return on investment is fast, and it is highly accepted by end customers.

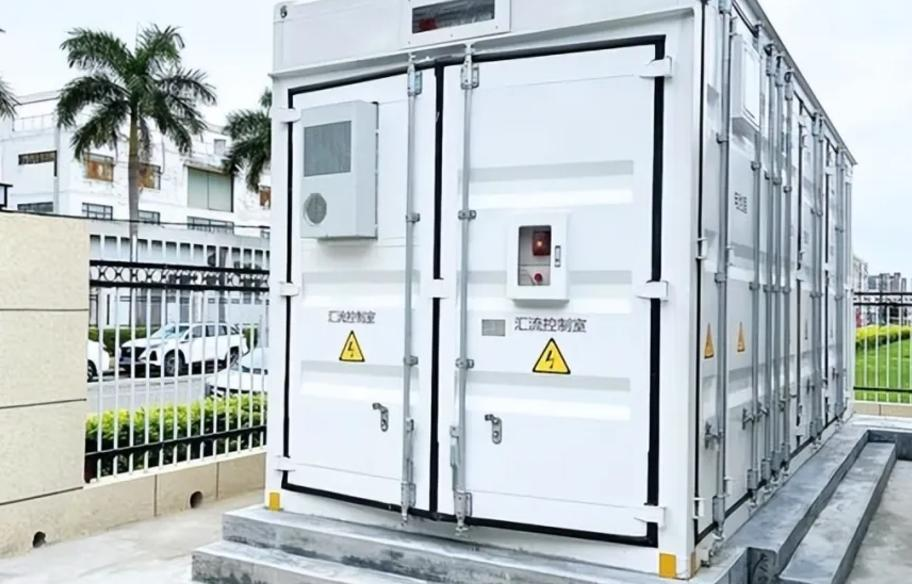

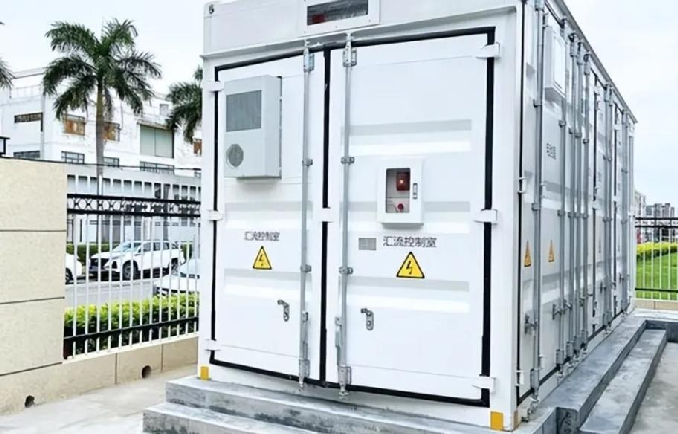

3. Outdoor Cabinet-Free Rack Design

Industrial-grade outdoor IP high protection level, equipped with air conditioning temperature control, heat dissipation dehumidification, smoke detection fire protection. It can be placed outdoors in the open air without the need for a dedicated machine room, saving construction costs for site infrastructure.

4. Efficient Power Generation & Intelligent On-Off Grid

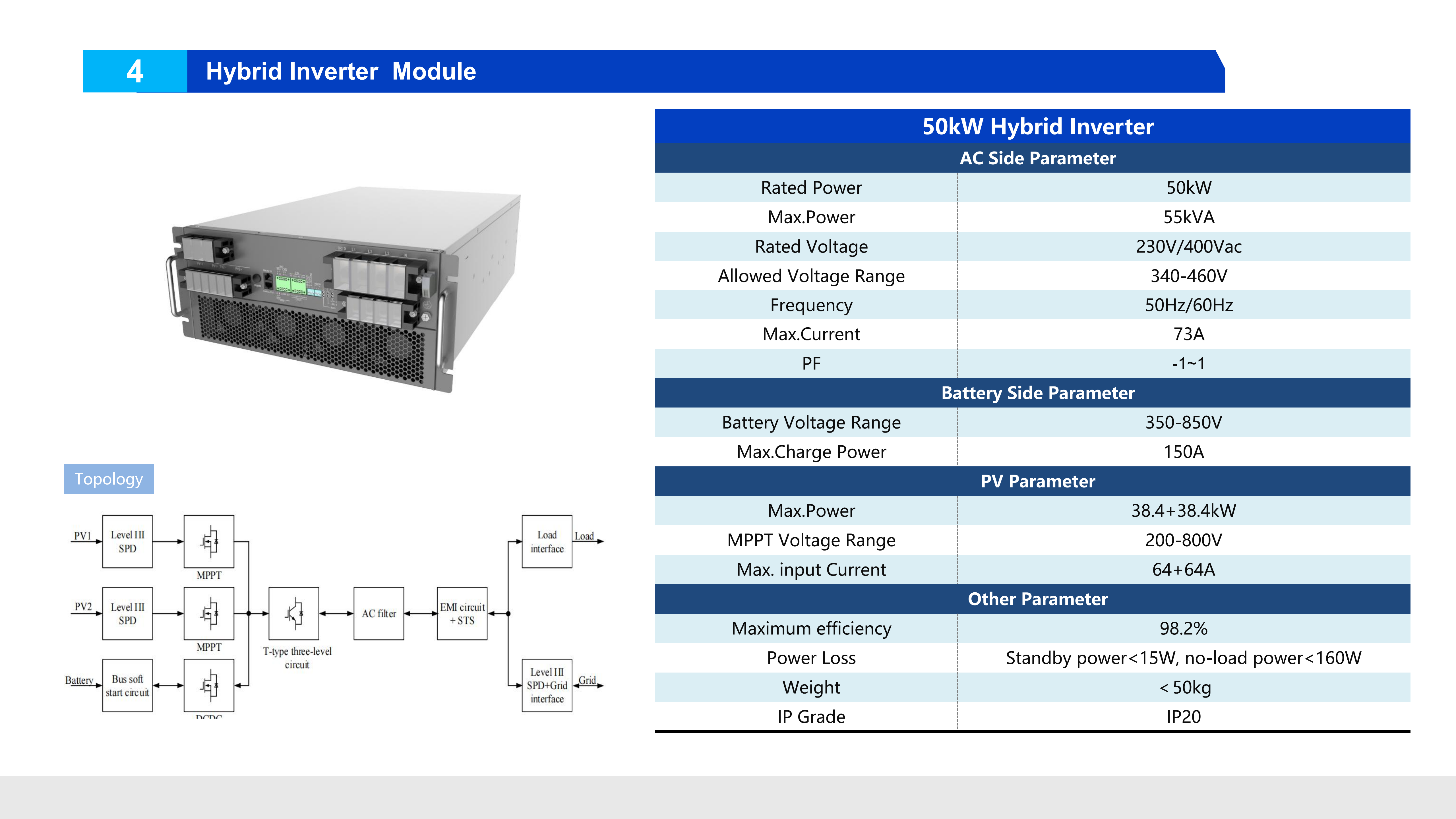

Multiple MPPT solar power connections, with high power conversion rate; supports grid connection for peak shaving and valley arbitrage, off-grid independent power supply, black start, seamless switching. It automatically takes over in case of power outage, with strong stability.

5. Fully Equipped Safety Configuration

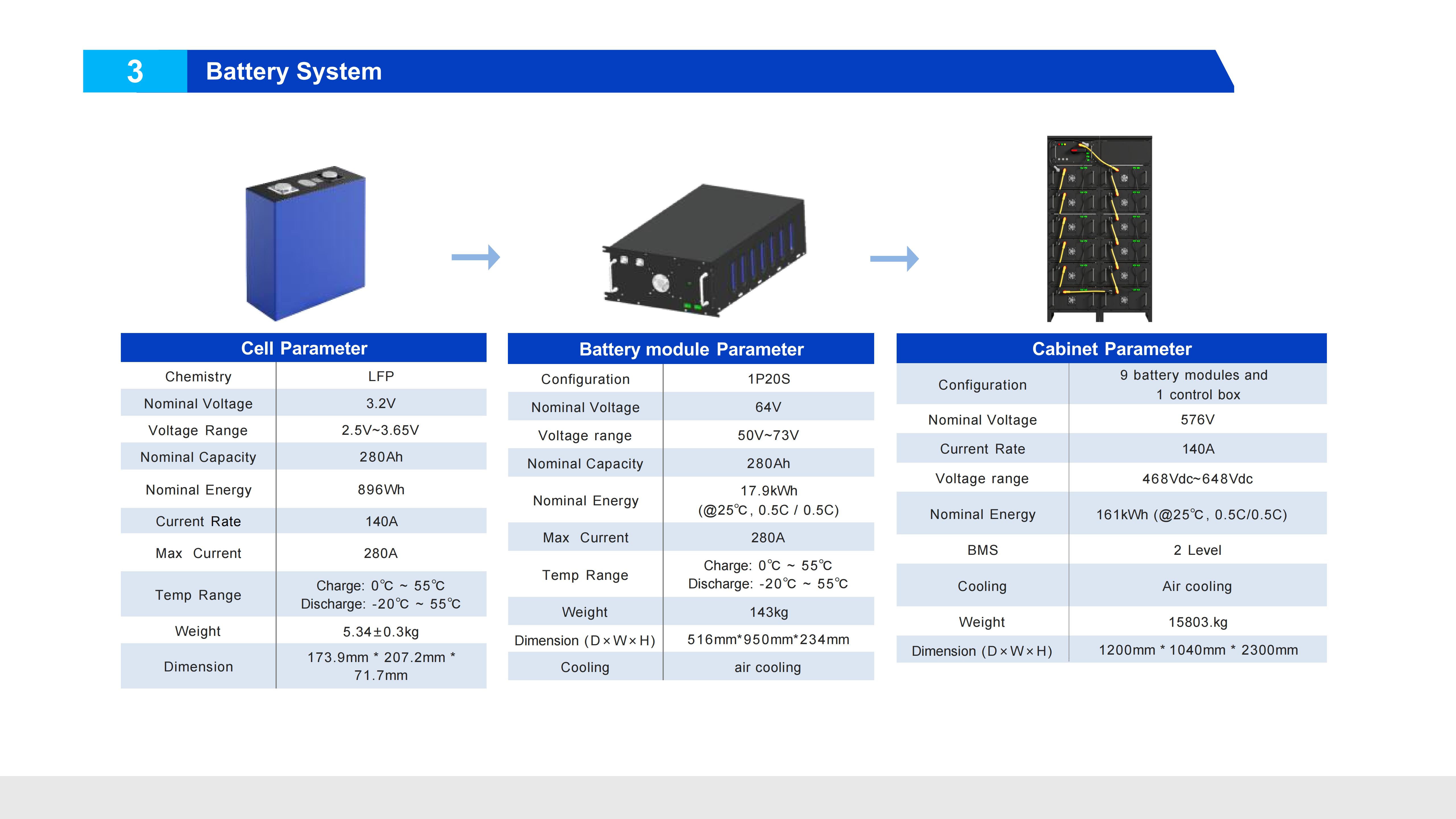

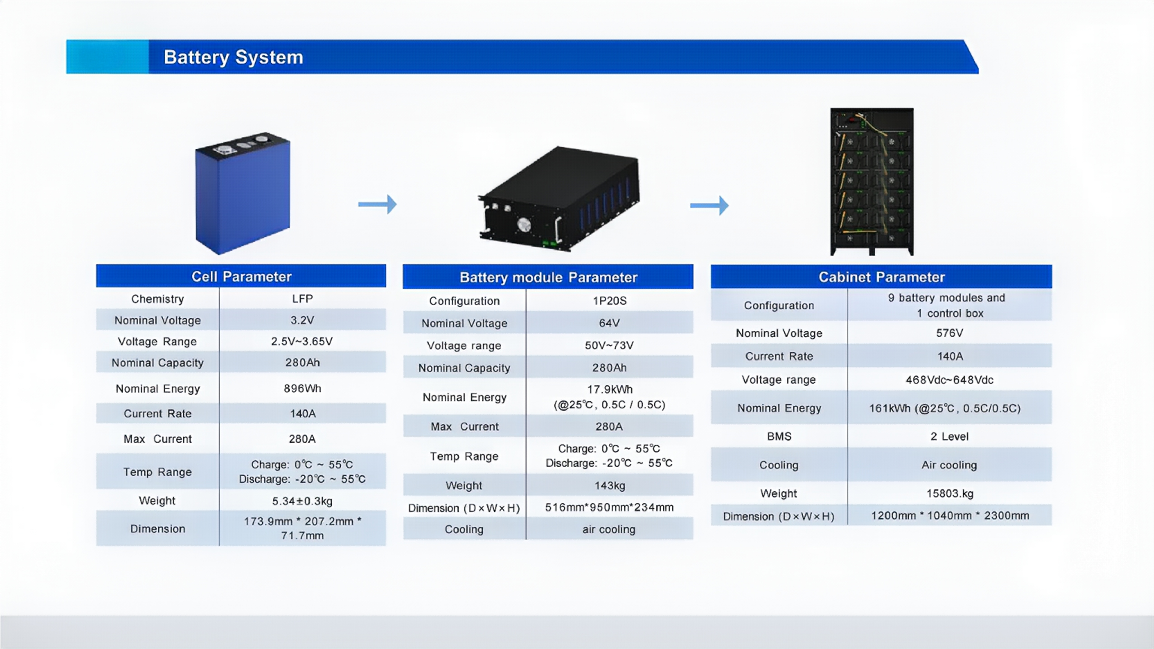

Uses A-grade lithium iron phosphate battery cells, with BMS full parameter protection; standard features include overvoltage / overcurrent / short circuit / leakage protection, aerosol fire protection, temperature-sensing smoke detection, leakage alarm. Multiple security measures reduce operational safety risks.

6. Installation Extremely Simple, Ready to Use

The entire machine is factory-prewired and pre-tested. At the site, only the connection of photovoltaic lines + mains power input is required. No complex construction or debugging is needed, saving labor, reducing construction time, and having low installation personnel requirements.

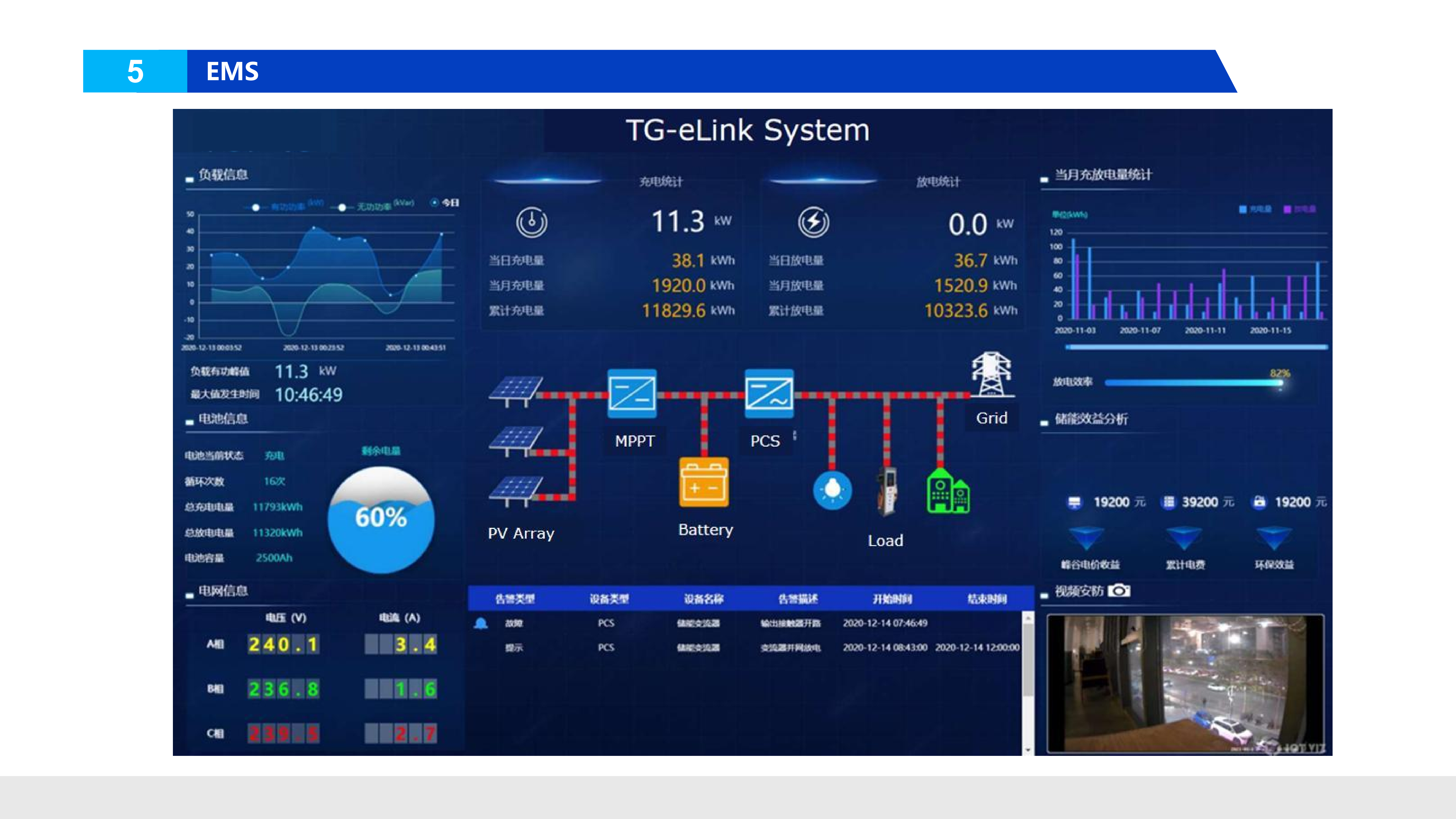

7. Intelligent Cloud Monitoring + Remote Control

Built-in intelligent monitoring system, supporting mobile / computer cloud backend, real-time monitoring of power generation, electricity consumption, battery status, remote start/stop, fault alerts. Post-operation maintenance is extremely simple.

II. Application Scenarios

1. Industrial and Commercial Factories and Parks

Factories, industrial parks, office buildings, supermarkets, hotels: peak-valley electricity arbitrage, electricity cost savings, demand control, off-peak power usage.

2. Photovoltaic Power Supply and Energy Storage Integration Projects

Industrial photovoltaic grid connection integration, distributed photovoltaic installation with energy storage, one-stop solution for power generation + energy storage + power consumption.

3. Backup Emergency Power Supply

Industrial areas, data centers, livestock farms, hospitals, important loads in towns and villages, off-grid / micro-grid scenarios. Photovoltaic + energy storage independent power supply, without reliance on the grid.

4. Off-grid / Micro-grid Scenarios

Remote villages, islands, mining areas, pastures, construction sites, campsites. Photovoltaic + energy storage independent power supply, no need to rely on the grid.

5. Power Supply for Charging Stations

50kW power suitable for new energy charging stations, valley electricity storage, peak electricity charging, reducing charging station electricity costs.

6. Cross-border Foreign Trade Projects

Small and medium-sized industrial enterprises, villa communities, farms in overseas regions, photovoltaic energy storage projects. The entire machine is standardized for export, with convenient customs clearance and quick on-grid implementation.

III. Solution Capability

1. Standardization + Customizable Configuration

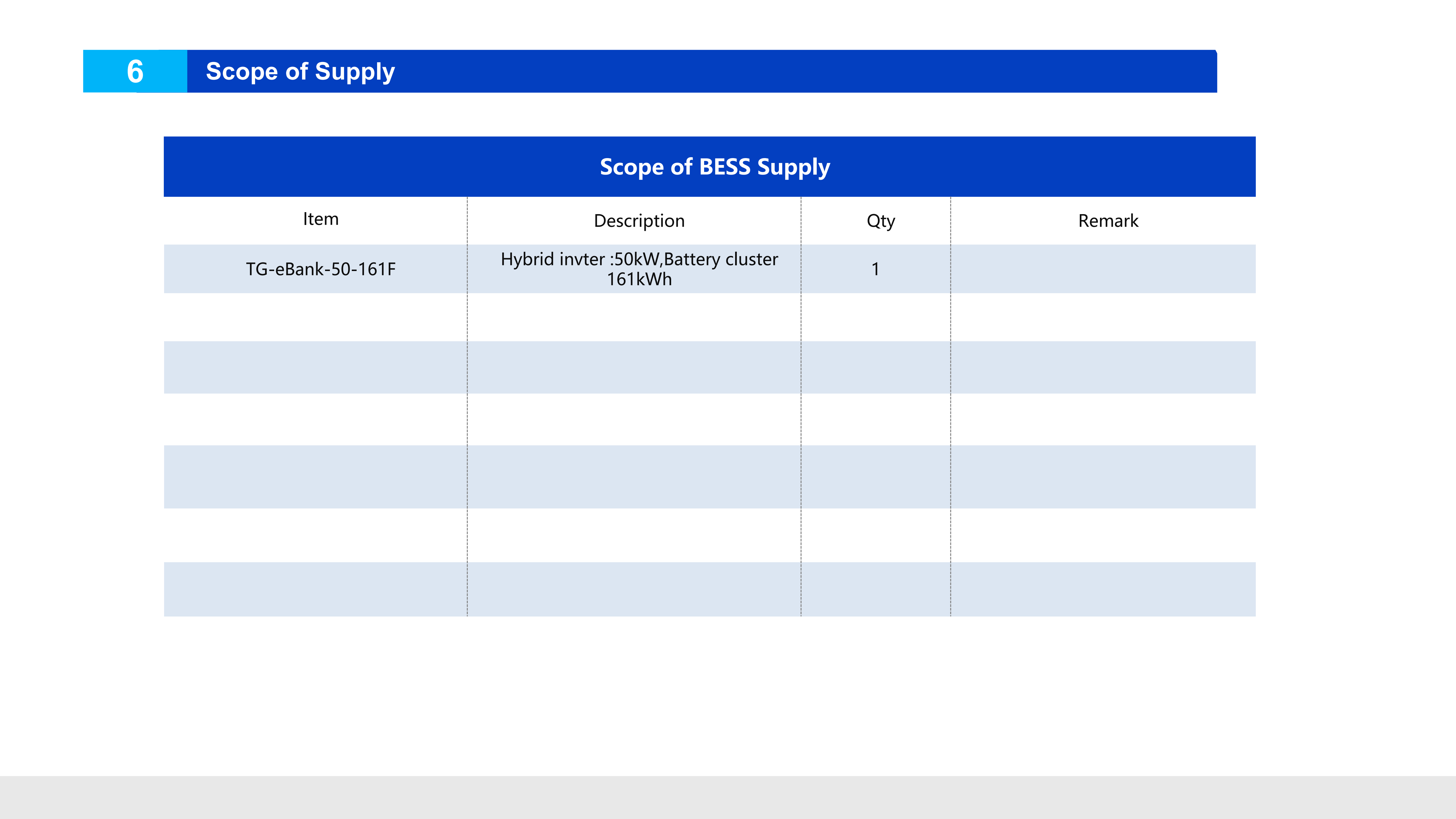

Standard 50kW/161kWh ready stock available, customizable for power, capacity, voltage, custom appearance silk-screening, OEM/ODM branding.

2. Complete System Solution Output

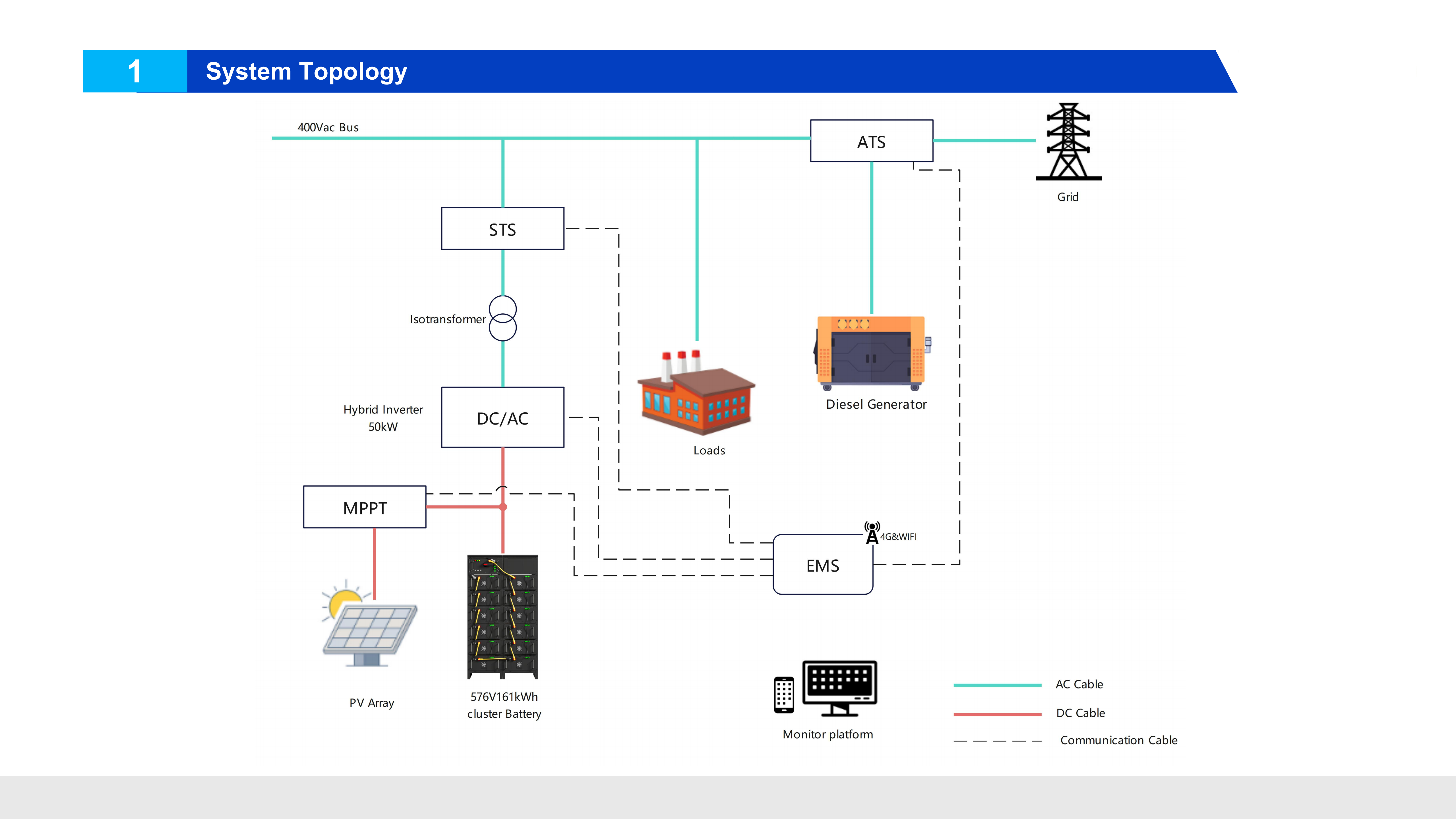

Free provision of configuration plans, electrical schematic diagrams, wiring diagrams, installation foundation diagrams, grid connection materials. Traders / engineering merchants can directly use them for bidding and project quotations.

3. Full Certification Export Compliance

The entire machine has CE, UN38.3, MSDS, RoHS, electrical safety and other complete international certifications, meeting customs clearance and grid connection standards in various countries in Europe, Southeast Asia, the Middle East, and Africa.

4. Multi-mode System Adaptability

Supports grid connection, off-grid, peak-valley arbitrage, load backup, multi-machine parallel expansion. Can be used individually or connected in multiple machines to form MW-level energy storage systems.

5. Full Process Technical Support

Provide English manuals, installation videos, remote debugging guidance, grid connection assistance; Full-process technical coordination, customers will not need to install or adjust. We will guarantee the entire process.

6. Improve quality assurance and after-sales service

Whole-machine long-term warranty, long-life guarantee for battery cells, support for overseas channel after-sales connection, reducing the after-sales concerns of trading companies.

IV. Company Strength

1. Integrated photovoltaic and storage source factory

Specialized in the research and production of industrial and commercial photovoltaic and storage integrated machines and energy storage outdoor cabinets for many years. The product technology is mature, market verification has led to batch shipments, not a small workshop's trial production model.

2. Full-chain self-combination

Self-developed BMS, PCS, own lithium battery module production line + complete assembly line. From battery cells to the entire machine, it is self-controlled, cost is controllable, delivery time is stable, and there is no shortage.

3. Strict factory quality control

Each complete machine undergoes full-load aging, high and low temperature testing, full-function real measurement of grid connection and off-grid, and insulation safety comprehensive inspection. There are no hidden dangers at the time of delivery, and the rework rate is extremely low.

4. Strong large-order delivery capability

Standardized assembly line production, regular spare parts inventory, capable of undertaking batch export orders, EPC project collective procurement, and large-scale orders can be delivered on schedule with guaranteed delivery.

5. Global project implementation experience

The product has been exported to multiple countries in batches, providing services to foreign trade traders, energy storage integrators, and photovoltaic engineering companies. It supports regional agents, exclusive cooperation, customized branding, and long-term models.
